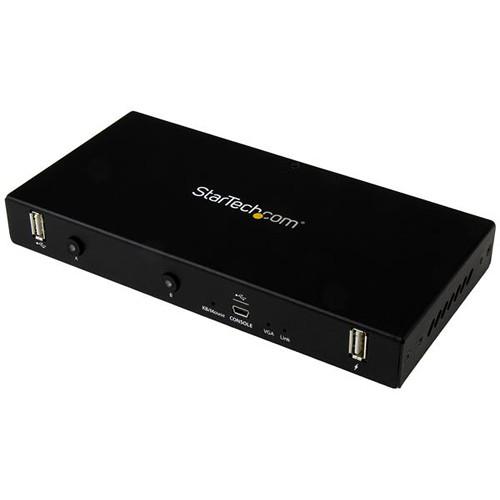

User Manual for StarTech 2-Port Laptop to Server KVM Console Adapter Click to enlarge the picture
Contents of the user manual for the StarTech 2-Port Laptop to Server KVM
- Product category: KVM Switches StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Switches
 |
User manual for the StarTech 2-Port Laptop to Server KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More evtcuyxdtyddrvrvsbfyuydwf The 2-Port Laptop to Server KVM Console Adapter from StarTech provides users with KVM (Kernel-based Virtual Machine) control of their servers, directly from their laptop. KVM technology is a virtualization infrastructure for the Linux kernel that enables it to create and run virtual machines, but KVM technology is compatible with Windows and Mac OS X systems as well.
This adapter enables a convenient solution for diagnostics, maintenance, and updates for small-scale server applications, giving users full access to servers located in small spaces or congested server racks. It's also well suited for environments where a fixed-installation console server isn't feasible, such as in a server closet or a wall-mounted server rack. This adapter also removes the need to wheel around a server-room crash cart or install a rackmounted LCD console.
Using the included software, users will be able to view their servers on their full laptop screen, without scroll bars, and reduce the viewing windows to maximize productivity between server and non-server work. Also supported are file transfers between laptops and servers, which helps with server software updates and patches. Additionally, video support enables users to record server activity and use later for verification or instructional purposes.

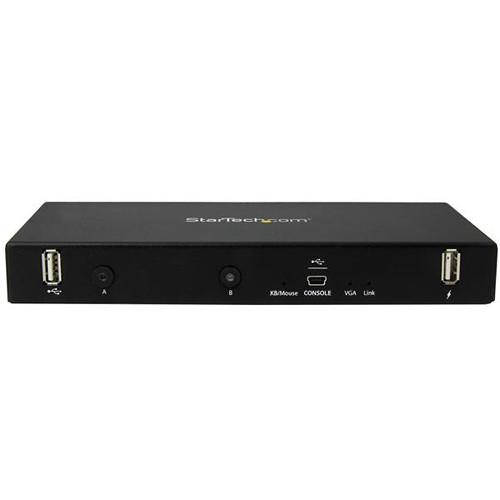

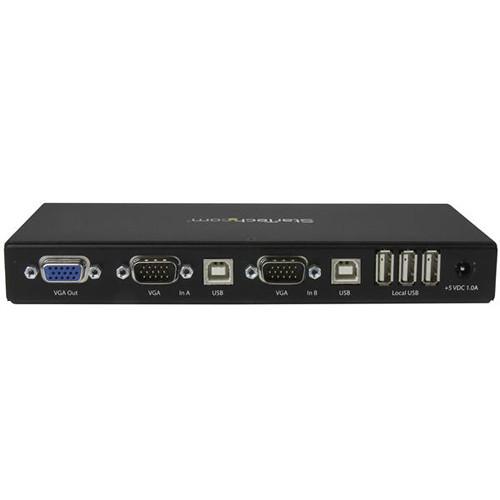

StarTech's 2-Port Laptop to Server KVM Console Adapter is equipped with a mini-USB Type-B (female) console interface, two USB Type-B (female) and two VGA (male) host connectors, one VGA (15-pin Female) input, and one USB Type-A (female) input. It is compatible with Windows, Mac, and Linux and operated using an included 100-240 VAC power adapter. Also included are two mounting brackets, two 2-in-1 USB and VGA cables (10'), a USB Type-A to mini-USB Type-B cable, and a USB software key. This item is protected by a limited two-year warranty. LED Indicators - Port LEDs
- If the LED is illuminated green, the port is active. If the LED is red, video is not available
- Server Keyboard or Mouse LED
- If the LED is illuminated green, USB is attached to the active PC port. If the LED is blinking green, this indicates activity
- Server VGA LED
- If the LED is illuminated green, VGA is attached to the active PC port. If the LED is blinking green, Server VGA isn't connected
- Console LED
- If the LED is illuminated green, the console is connected to a laptop. If the LED is blinking green, this indicates activity
UPC: 065030862998 In the Box StarTech 2-Port Laptop to Server KVM Console Adapter 2 x Mounting Brackets 2 x 2-in-1 USB and VGA Cables (10' / 3.0m) 1 x USB Type-A to Mini-USB Type-B Cable 1 x USB Software Key 1 x Universal Power Adapter (NA/EU/UK/AU) Limited 2-Year Warranty Brochure PDF 212.3kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port Laptop to Server KVM Console Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SV231USBLC Specs | | | Audio | No | | Daisy Chain | No | | KVM Ports | 2 | | Multi-Monitor | No | | PC Interface | USB | | PC Video Type | VGA | | Rack-Mountable | Yes | | | | IP Control | No | | Maximum Analog Resolution | 1920 x 1200 @ 60 Hz | | Maximum Number of Users | 1 | | | | Console Interface | 1 x mini-USB Type-B (5-pin, Female) | | Host Connectors | 2 x VGA (15-pin; High Density D-Sub) Male Input
2 x USB Type-B (4-pin) Female | | Other Interfaces | 1 x VGA (15-pin; High Density D-Sub) Female Input
1 x USB Type-A (4-pin) Female | | | | OS Compatibility | Windows 10, 8.1, 8 7, and Vista (32/64-bit)
Window Server 2012, 2012 R2, 2008 R2
Mac OS 10.x (tested up to 10.11)
Linux 2.6.x - 3.5.x (32/64-bit) | | | | LED Indicators | 1 x Port 1 Activity LED
1 x Port 2 Activity LED
1 x Console Activity and Link LED
1 x Keyboard/Mouse Activity and Link LED
1 x Host/Server Video (VGA) Link | | | | Input Current | 0.75 A | | Input Voltage | 100-240 VAC | | Output Current | 3 A | | Output Voltage | 5 VDC | | Power Source | AC Adapter included | | | | Humidity | 80% RH | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Non-Operating Temperature | -40 to 158°F / -40 to 70°C | | | | Server Requirements | VGA-enabled video card (DVI support via optional DVIVGAMF adapter) USB keyboard and mouse support | | | | Cable Length | 16.4" / 41.7 cm | | Color | Black | | Enclosure Type | Steel | | Depth | 4.5" / 11.4 cm | | Height | 0.9" / 2.3 cm | | Length | 4.9" / 12.5 cm | | Width | 3.5" / 8.9 cm | | Weight | 8.6 oz / 243.8 g | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 14.252 x 11.575 x 2.598" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
