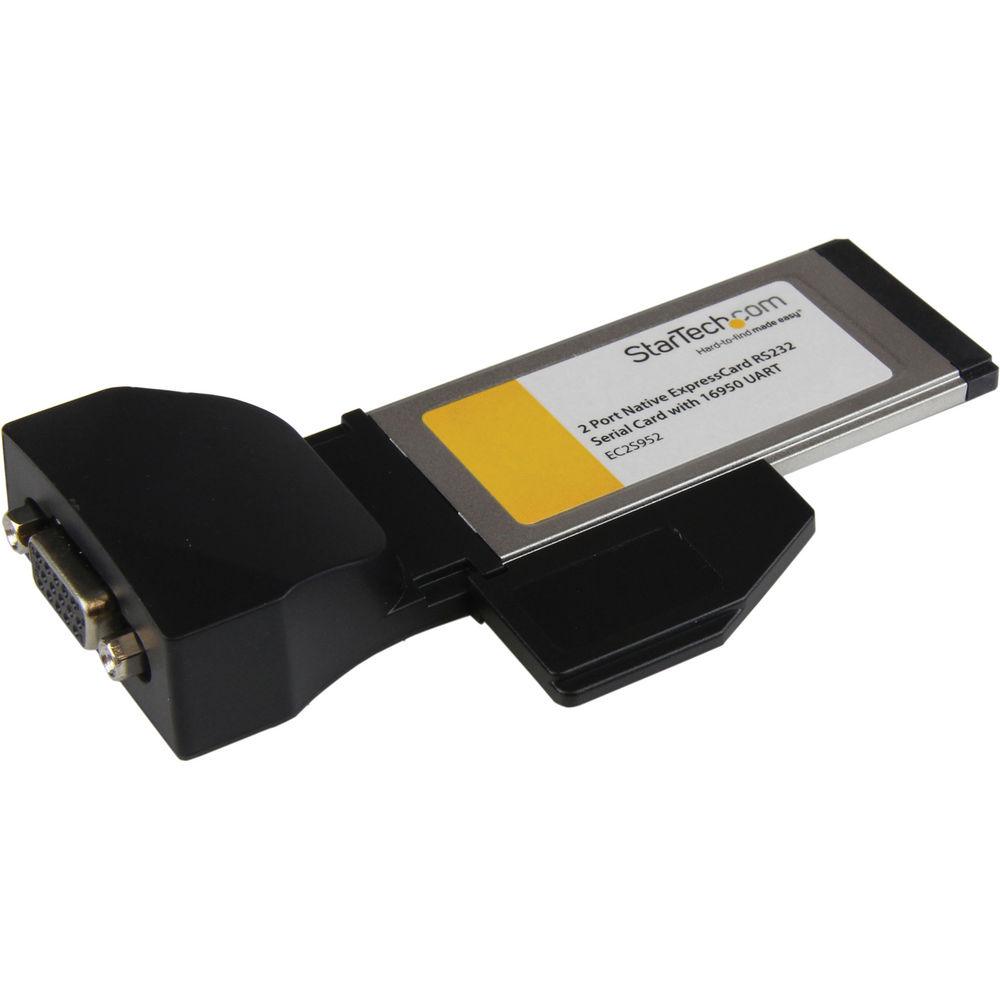

Product description The 2-Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART from StarTech lets you add 2 RS232 serial ports to your laptop or ExpressCard equipped desktop computer, using an available ExpressCard slot. Featuring 128-byte FIFO communication and a high-performance 16C950 UART, the ExpressCard serial adapter card offers baud rates up to 115.2kb/s, ensuring peak communication with your serial peripheral devices. The serial card design is based on single-chip architecture (as opposed to cards that use a bridge chip), providing native PCI Express communication for greater performance and reliability, as well as reduced power consumption and CPU load. Compatible with 34mm and 54mm ExpressCard slots, the 2-port serial ExpressCard includes a slot spacer for greater security while installed in 54mm slots. - Advanced FIFO fill management
- 128-byte deep transmit / receive FIFOs
- Automated in and out-of-band flow control
- The high-performing single chip design optimizes speed, reliability and power while reducing CPU load up to 48%
- Compatible with both 34 mm and 54 mm ExpressCard slots; includes a slot spacer for greater security while installed in 54 mm slots
- Fully compliant with ExpressCard 1.0 specifications

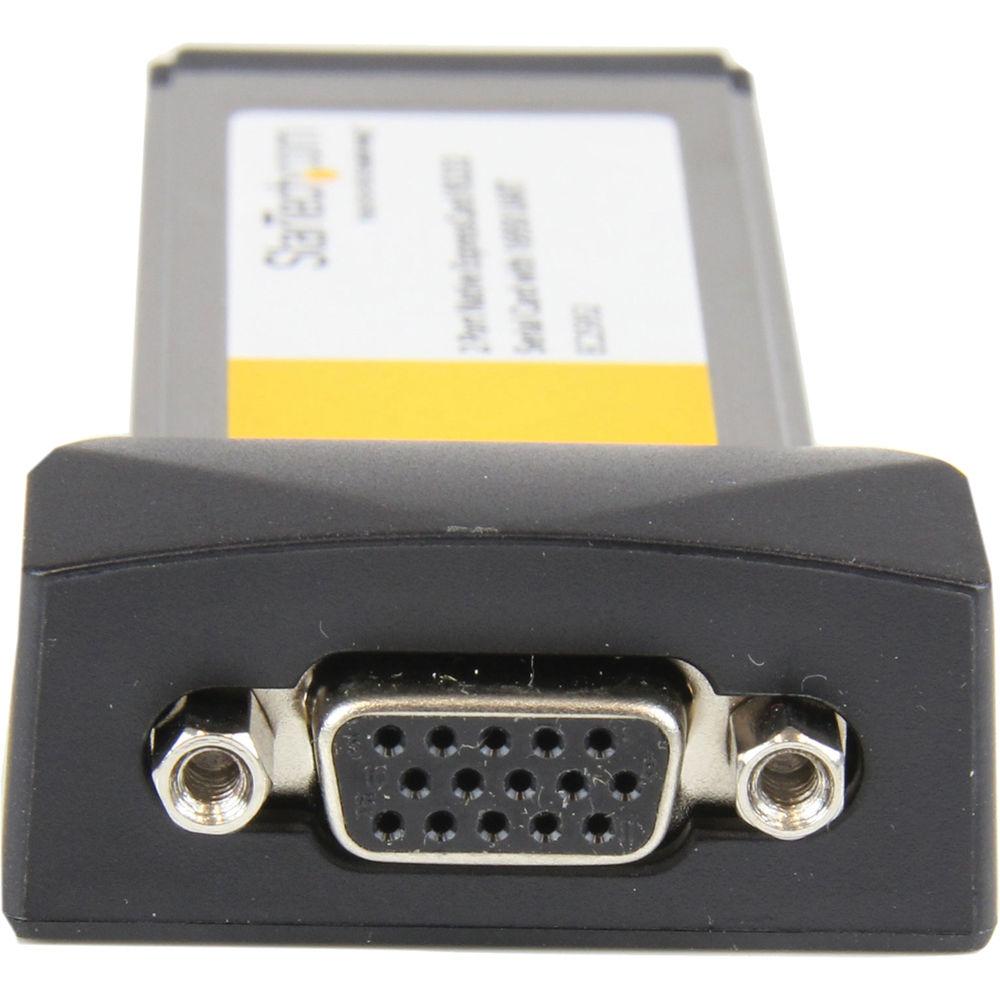

- Standard RS232 DB9 pin-out
- Supports ASPM (L0S, L1) link power management
- Supports high-performance 16C950 UART with baud rates of up to 115.2 kb/s and backwards compatible with 16C550 UART
- Adds to any other serial or legacy device
- Embedded system coding, building and diagnostics
Applications - POS retail applications in grocery stores and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales and elevated displays on poles
- Self-service automated machines and kiosks to control serial devices such as scales, touch screens, magnetic card readers, bar code scanners, receipt printers, label printers
- Standard ATM (automated teller machines) to control keypads, receipt printer, card readers / card swipes, touch screen LCDs, camera control and more
- Used to control multiple surveillance / security cameras in a parking structure, office building and more

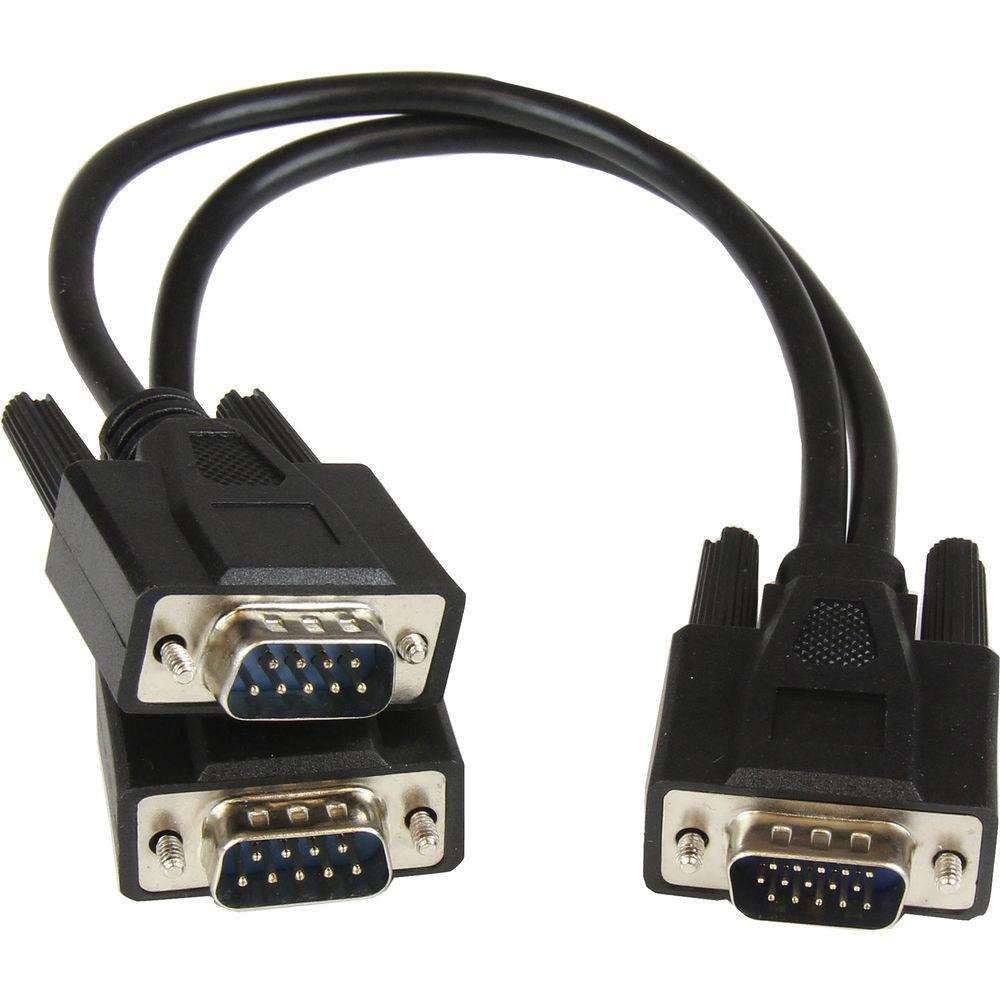

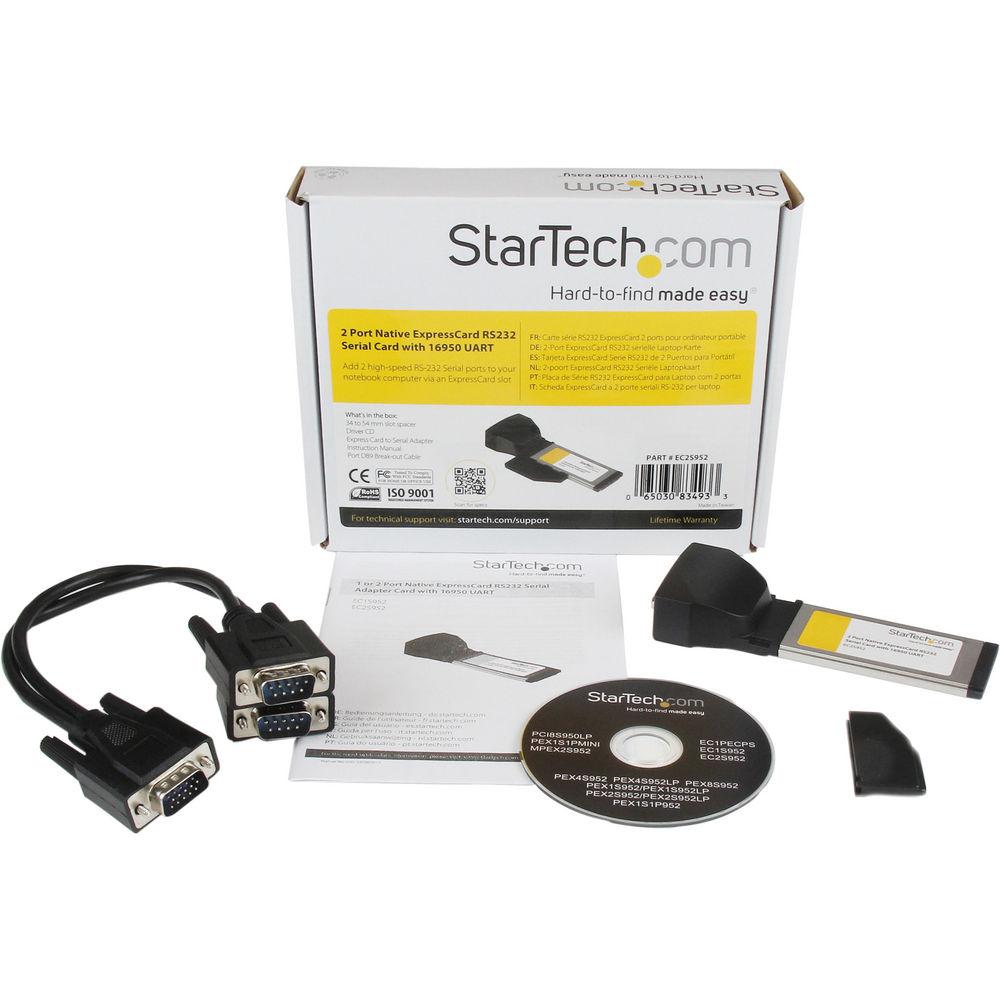

UPC: 065030834933 In the Box StarTech 2-Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART 2-Port DB9 Break-Out Cable 34 to 54 mm Slot Spacer Driver CD Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port Native ExpressCard RS232 Serial Adapter Card with 16950 UART in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech EC2S952 Specs | | | Interface | Serial | | Ports | 2 | | Bus Type | ExpressCard | | Card Type | ExpressCard (34 mm) | | Port Style | Dongle (included) | | Chipset ID | PLX / Oxford - OXPCIe952 | | | | External Ports | 2 x DB-9 (9-pin, D-sub) male | | | | Serial Protocol | RS-232 | | Max Baud Rate | 115.2 kb/s | | Built-in | FIFO: 128 bytes | | | | OS Compatibility | Windows 8, 7, Vista, XP, 2000
Windows server 2008 R2
Linux | | | | Humidity | 5~85% RH | | Operating Temperature | 14 to 176°F (-10 to 80°C ) | | Storage Temperature | -4 to 212°F (-20 to 100°C) | | Certificates | CE, FCC, RoHS | | Dimensions (L x W x D) | 4.5 x 1.8 x 0.8" (114.3 x 45.7 x 20.3 mm) | | Weight | 1.3 oz (36.8 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.7 x 5.8 x 1.2" |
