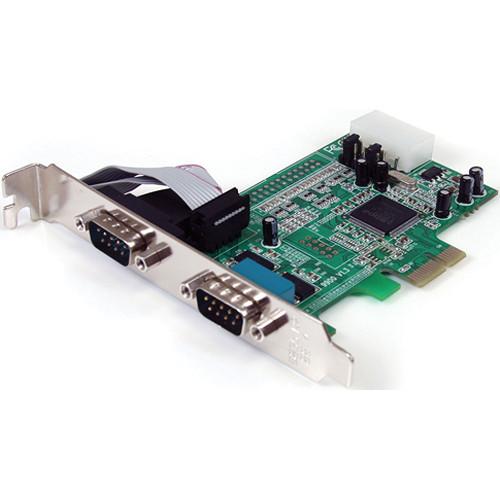

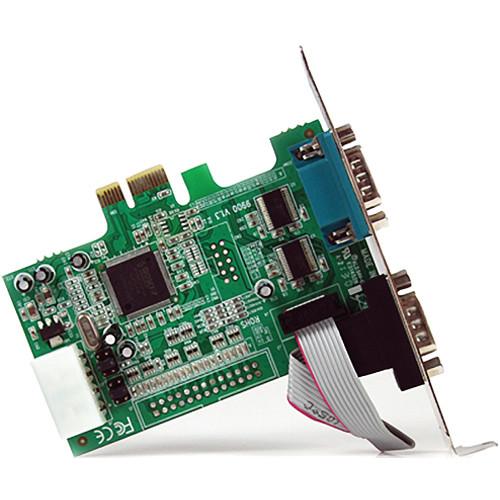

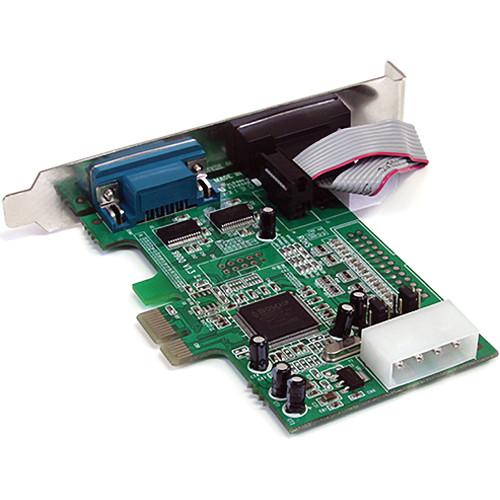

Product description The green 2-Port RS-232 Serial PCIe Adapter Card with 16550 UART from StarTech lets you turn a PCIe slot into two RS-232 (DB-9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCIe, reducing the CPU load by as much as 48% over conventional serial cards. The serial card adapter is compatible with a broad range of operating systems including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32/64-bit), Linux Kernel 2.6.11 and above, as well as Mac OS 10.4 and above. Furthermore, the serial card includes an optional half-height/low-profile bracket that allows the card to be installed in any PCIe slot, regardless of the size of the computer case. - Native single-chip, single lane chipset delivers true PCIe performance
- Two high-speed RS-232 serial ports support data transfer rates up to 460.8 kb/s
- Compliant with PCIe base specification revision 1.0a
- Selectable power output on pin 9 of the serial port
- 128-byte deep FIFO per transmitter and receiver
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Automated in-band software flow control using programmable Xon/Xoff in both directions
Applications - Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, and label printers
- POS retail applications in grocery stores and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full-profile or low-profile versions to control serial devices such as cash drawers, card readers/card swipes, printers, keypads / pinpads, and pen pads
- Standard ATM (automated teller machines) to control keypads, receipt printer, card readers/card swipes, touchscreen LCDs, camera control, and more
- Used to control multiple surveillance/security cameras in parking structures and office buildings, among others

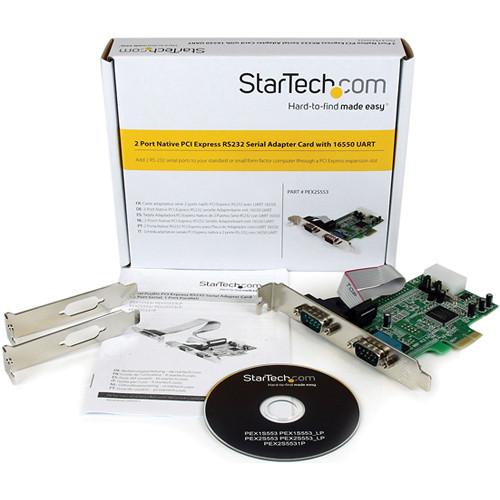

UPC: 065030841740 In the Box StarTech 2-Port RS-232 Serial PCIe Adapter Card with 16550 UART (Green) 2 x Low-Profile Brackets 1 x Driver CD Limited Lifetime Warranty Brochure PDF 217.9kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port RS-232 Serial PCIe Adapter Card with 16550 UART in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

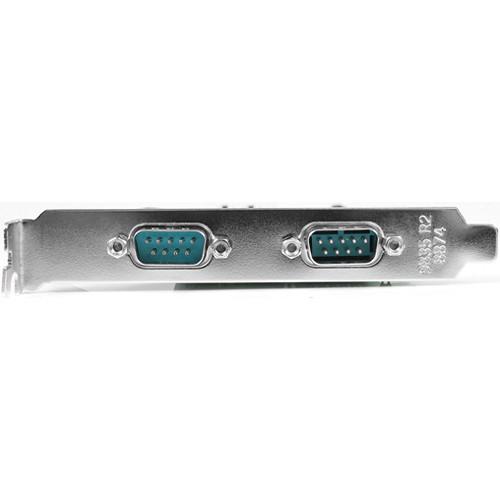

Technical parametersStarTech PEX2S553 Specs | | | Interface | Serial | | Ports | 2 | | Bus Type | PCIe | | Card Type | Standard profile Low profile bracket included | | Port Style | Integrated on card | | Chipset ID | ASIX/MosChip - MCS9922CV-AA | | | | Type | 1 x PCIe x1 male | | Internal Ports | 1 x LP4 (4-pin; Molex large drive power) male | | External Ports | 2 x DB-9 (9-pin; D-Sub) male | | | | Baud Rate | Maximum: 460.8 kb/s | | Serial Protocol | RS-232 | | FIFO | 128 bytes | | | | OS Compatibility | Windows DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS X 10.4 to 10.10
Linux kernel 2.6.x to 4.4.x LTS versions | | | | Humidity | 5 to 85% RH | | Compliance | CE, FCC, RoHS | | Operating Temperature | 14 to 176°F (-10 to 80°C) | | Storage Temperature | -4 to 212°F (-20 to 100°C) | | | | Dimensions (L x W x H) | 4.1 x 4.7 x 0.8" (104.1 x 119.3 x 20.3 mm) | | Weight | 2.2 oz (63.5 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.6 x 5.6 x 1.3" |
