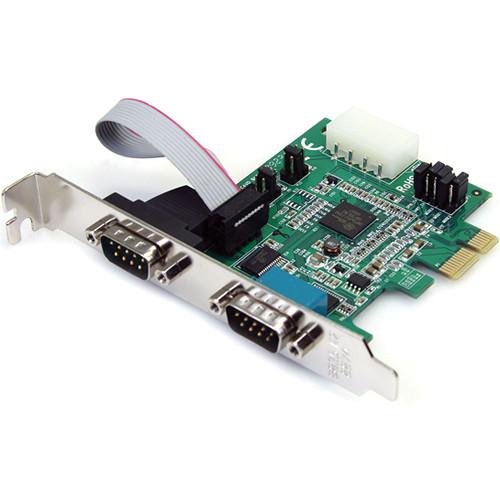

User Manual for StarTech 2-Port RS-232 Serial PCIe Adapter Card with 16950 UART Click to enlarge the picture
Contents of the user manual for the StarTech 2-Port RS-232 Serial PCIe Adapter
- Product category: Serial RS-422/RS-232 Cards StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Serial RS-422/RS-232 Cards
 |
User manual for the StarTech 2-Port RS-232 Serial PCIe Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

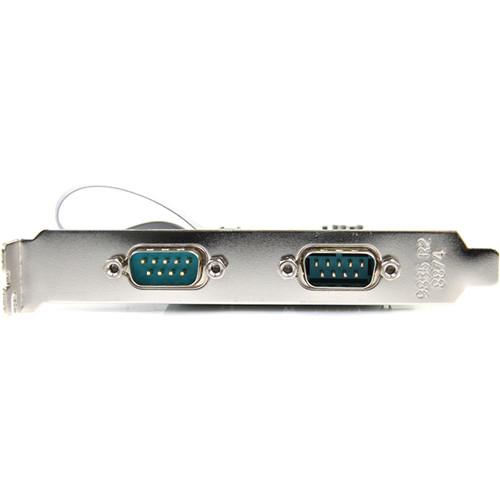

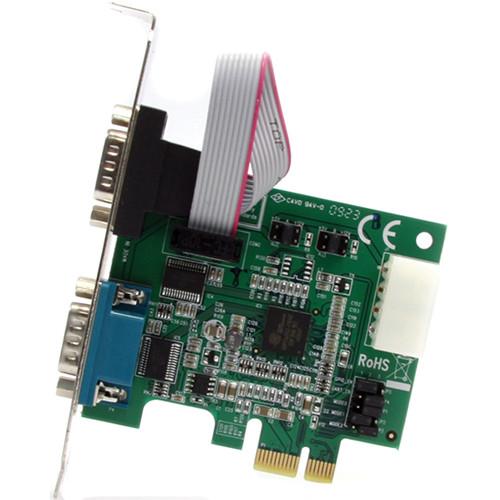

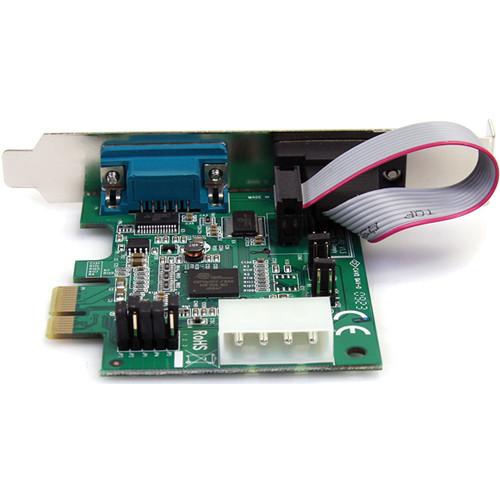

Product description The 2-Port RS-232 Serial PCIe Adapter Card with 16950 UART from StarTech turns a PCIe slot into two RS-232 (DB9) serial connections. The adapter card is based on a native single chip design that provides optimum reliability and speed, while reducing the load applied to the CPU by as much as 48% over conventional (bridge chip) serial cards. The serial adapter card is compatible with a broad range of operating systems, including Windows and Linux (Kernel 2.6.11 and later). Furthermore, it includes an optional half-height/low-profile bracket that allows the card to be installed in virtually any computer case, making it easier to add serial ports to a PCIe-enabled computer, regardless of the size of the computer case. - Selectable power output on pin 9 for the serial port
- Features two high-speed RS-232 serial ports with data transfer rate up to 460.8 Kb/s
- Compliant with PCIe base specification revision 1.0a
- Native single-chip, single-lane PCIe offers increased speed and reduces CPU load by up to 48%
- Includes both standard and half-height/low-profile mounting brackets to ensure easy installation into almost any system
- High performance dual channel Oxford 950 UART
- 128-byte deep FIFO per transmitter and receiver
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND
Applications - Self service automated machines and kiosks to control serial devices such as scales, touch screens, magnetic card readers, bar code scanners, receipt printers, and label printers
- POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low-profile versions to control serial devices such as cash drawers, card readers/card swipes, printers, keypads/pinpads, and pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers/card swipes, touchscreen LCDs, camera control, and more
- Used to control multiple surveillance/security cameras in a parking structure, an office building, and more

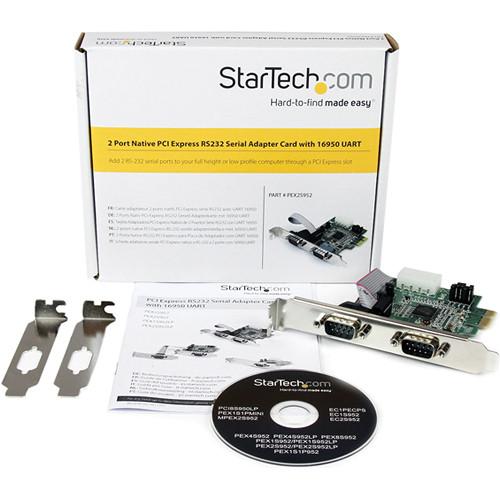

UPC: 065030831581 In the Box StarTech 2-Port RS-232 Serial PCIe Adapter Card with 16950 UART 2 x Low Profile Brackets Driver CD Limited Lifetime Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port RS-232 Serial PCIe Adapter Card with 16950 UART in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 2-Port RS-232 Serial PCIe Adapter Card with 16950 UART can be downloaded in PDF format at the link stated below.
Technical parametersStarTech PEX2S952 Specs | | | Interface | Serial | | Ports | 2 | | Bus Type | PCIe | | Card Type | Standard profile Low-profile bracket included | | Port Style | Integrated on card | | | | Type | 1 x PCIe x1 male | | Internal Ports | 1 x LP4 (4-pin; Molex large drive power) male | | External Ports | 2 x DB-9 (9-pin; D-Sub) male | | | | Baud Rate | Maximum: 460.8 Kb/s | | Serial Protocol | RS-232 | | Data Bits | 4, 5, 6, 7, 8 | | FIFO | 128 bytes | | Stop Bits | 1, 1.5, 2 | | | | OS Compatibility | Windows 7/8/Vista/XP (32/64-bit), XP Embedded, CE 6.0/5.0
Windows Server 2012, 2008 R2, 2003 (32/64-bit), 2000
Linux 2.4.x/2.6.x | | | | Humidity | 5~85% RH | | Compliance | CE, FCC, RoHS | | Operating Temperature | -10 to 80°C (14 to 176°F) | | Storage Temperature | -20 to 100°C (-4 to 212°F) | | | | Dimensions (L x W x H) | 3.5 x 2.6 x 0.8" (88.9 x 66.0 x 20.3 mm) | | Weight | 2 oz (56.6 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.8 x 5.6 x 1.2" |
