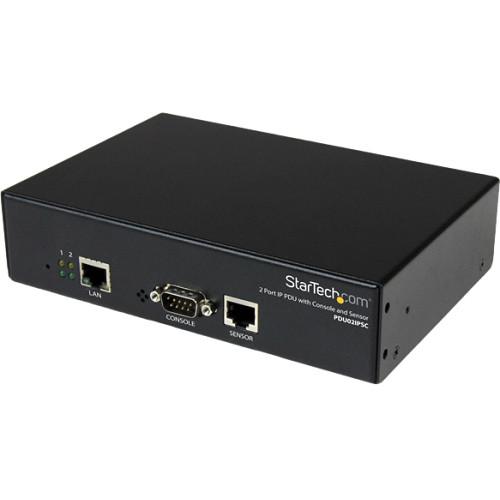

User Manual for StarTech 2-Port Switched IP PDU Power Switch w RS232 Console and Sensor Ports Click to enlarge the picture
Contents of the user manual for the StarTech 2-Port Switched IP PDU Power
- Product category: Networking Accessories StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Networking Accessories
|
User manual for the StarTech 2-Port Switched IP PDU Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black 2-Port Switched IP PDU Power Switch w/ RS232 Console and Sensor Ports from StarTech is a single-phase remotely managed power distribution unit that lets you monitor and control power to two connected devices over a local IP network or the Internet to reduce downtime. For simple remote administration, the IP PDU lets you monitor and control your connected equipment, without having to dispatch service personnel to the physical location of your devices. Along with global outlet controls, each individual outlet can be switched on/off independently, power cycled for immediate reboot or rebooted with timed delays, ensuring you have the control you need. The PDU includes an RJ-45 sensor port, allowing you to connect up to four Dry Contact Input sensors and configure alerts for status changes. For additional flexibility, this model also has an integrated microphone to detect abnormal noise in the environment, and a vibration sensor, both with configurable alerts. The integrated console port lets you connect a UPS (APC Smart UPS series) via standard RS232 to remotely monitor connection and battery status. With a user-friendly web interface, this versatile IP power switch provides several features to help you effectively manage your devices. Features include Auto-Ping functions to detect failed network equipment and perform a power-cycle automatically, per-outlet scheduled power operations and notification of power events through email, SMS or SNMP traps. - Console port connects to a UPS via RS232 for monitoring connection status, voltage, and battery life
- Supports power event scheduling on a daily, weekly, monthly, or yearly basis
- Auto-Ping can monitor and auto-detect failed network equipment to perform a timed power cycle
- Supports Power Start Sequencing to limit in-rush current
- Security features include user account/password, IP or Mac address filters
- Input circuit breaker for overload protection
- Reduce downtime of key equipment with remote power control
- Monitor and control from anywhere in the world through a simple web interface
- View UPS status and dry contact input status with integrated serial and sensor ports
- Use for intelligent remote power management for data center devices
- Monitor and receive power event notifications for critical server and networking equipment
- Create power schedules for industrial machinery
UPC: 065030852364 In the Box StarTech 2-Port Switched IP PDU Power Switch w/ RS232 Console and Sensor Ports Power Cable Limited 2-Year Warranty Brochure PDF 98kb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port Switched IP PDU Power Switch w RS232 Console and Sensor Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech PDU02IPSC Specs | Number of Ports | 2 | | Maximum Current Load per Port | 8 A | | Maximum Total Current Output | 12 A | | Connectors | Input Connector: 1 x IEC 60320 C14 power plug
Other Interface: 1 x DB-9 (9-pin; D-Sub) male, 2 x RJ-45 female
Output Connectors: 2 x NEMA 5-15 power (North America) receptacle | | LED Indicators | 1 x Power
1 x Reset indicator
2 x Per-Outlet on/off indicators | | Input Voltage | 100 to 240 AC | | Power Consumption | 4.5 W | | Enclosure Material | Steel | | Relative Humidity | 0 to 85% (non-condensing) | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 32 to 158°F (0 to 70°C) | | Compliance | RoHS | | Certifications | CE, FCC | | Dimensions (L x W x H) | 7.2 x 5.1 x 1.8" (18.2 x 13.0 x 4.5 cm) | | Weight | 28.9 oz (820.0 g) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 9.7 x 8.5 x 3.2" |
