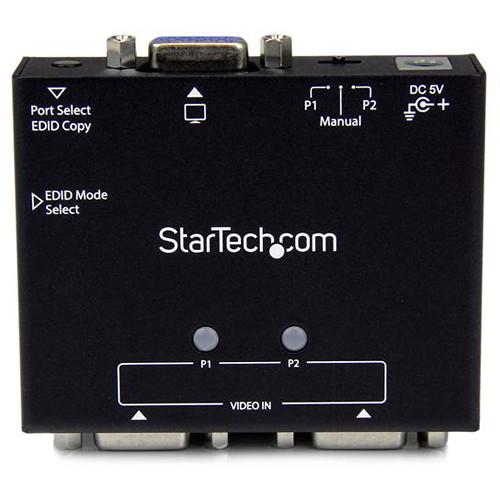

User Manual for StarTech 2-Port VGA Auto Switcher with Priority Switching and EDID Copy Click to enlarge the picture
Contents of the user manual for the StarTech 2-Port VGA Auto Switcher with
- Product category: Routers & Switchers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Routers & Switchers
 |
User manual for the StarTech 2-Port VGA Auto Switcher with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

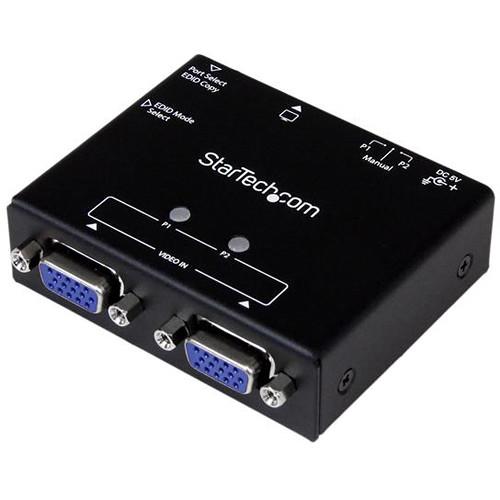

Product description The 2-Port VGA Auto Switcher from StarTech lets you share a display between two computers and automatically switch to the active source device using configurable priority switching. When the selected primary input port is turned off, the device automatically switches to the secondary input. It also offers manual control with an easy-to-use button that allows you to toggle between video sources. With built-in EDID emulation, it also ensures maximum compatibility with your display or projector and supports resolutions up to 2048 x 1152. This switcher can be powered using the included universal power adapter or the USB power cable. - General
-
- Supports resolutions up to 2048 x 1152
- Priority switching
- Automatic or manual port selection

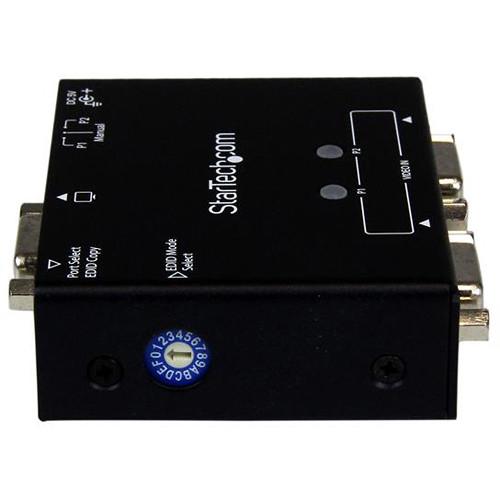

- EDID emulation
- Widescreen support
- Mounting hardware for easy installation
- CE, FCC, and RoHS compliant
- Applications
-
- You can share a laptop computer with a projector in boardrooms or trade shows
- Automatic switching ensures an active signal is displayed on the screen even if the laptop is disconnected
- Enables you to connect and switch between multiple sources in test bench facilities, data centers, help desks, and broadcasting facilities
- You can connect two media players or PCs to your digital signage display for more messaging options

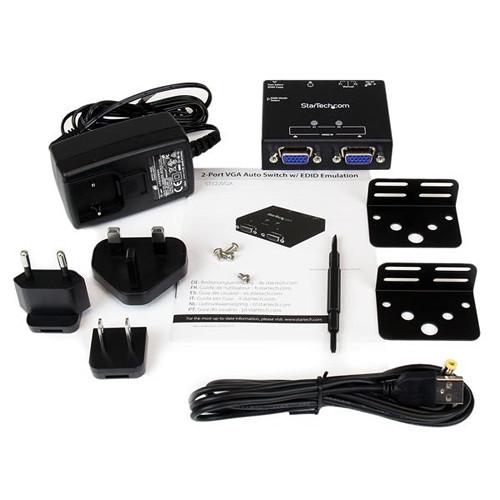

UPC: 065030852821 In the Box StarTech 2-Port VGA Auto Switcher with Priority Switching and EDID Copy USB Power Cable Universal Power Adapter Mounting Hardware Limited 2-Year Warranty More from Manufacturer wufrrvtferrtezsuyurccazafx Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port VGA Auto Switcher with Priority Switching and EDID Copy in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST122VGA Specs | Supported Resolutions | 2048 x 1152
1920 x 1440/1200/1080
1680 x 1050
1600 x 1200/900
1440 x 900
1366 x 768
1280 x 1024/720
1024 x 768
Maximum Analog Resolutions:
2048 x 1152 (WXGA)

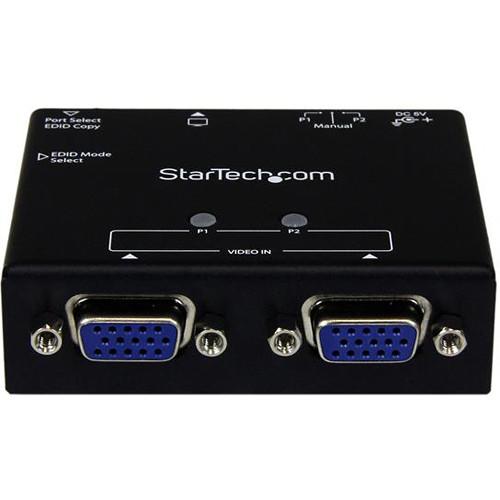

1920 x 1200 (WUXGA) | | Widescreen Support | Yes | | Standards | EDID | | Input | 2 x 15-pin VGA (high-density D-Sub), female | | Output | 1 x 15-pin VGA (high-density D-Sub), female | | LED Indicators | P1 (port 1 selected)
P2 (port 2 selected) | | Center Tip Polarity | Positive | | Input Current | 0.4 A | | Input Voltage | 110 to 240 AC | | Output Voltage | 9 VDC | | Output Current | 2 A | | Power Source | AC adapter, included | | Humidity | 0 to 80% | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Enclosure Type | Aluminum | | Dimensions | 0.8 x 2.9 x 6.2" / 2.0 x 7.4 x 16 cm | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 6.7 x 5.7 x 2.8" |
