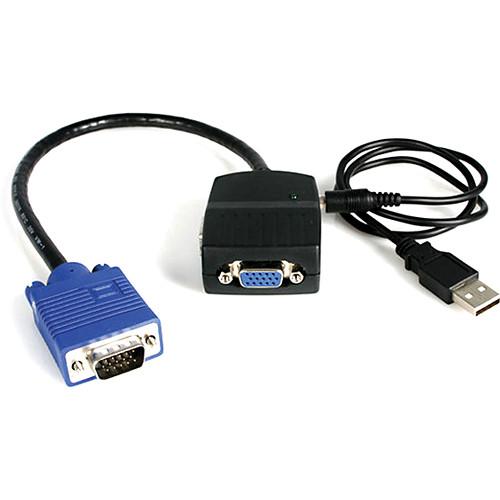

User Manual for StarTech 2-Port VGA Video Splitter Click to enlarge the picture
Contents of the user manual for the StarTech 2-Port VGA Video Splitter
- Product category: Converters & Splitters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Converters & Splitters
|
User manual for the StarTech 2-Port VGA Video Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black 2-Port VGA Video Splitter from StarTech allows a computer to display VGA video on two monitors simultaneously. It is perfect for classrooms, tradeshows or any environment that requires high-quality video transmission on several monitors simultaneously. The USB-Powered device does not require a power outlet. The splitter supports displays with up to 300 MHz bandwidth and up to 2048x1536 resolution. In addition, to simplify placement of your VGA displays, it features a built-in booster circuit that allows you to locate VGA monitors up to 213.2' (65m) away from your host system and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet. The video splitter also supports easy plug and play installation. - Multiple screens let you communicate your message more effectively to large audiences with greater impact
- Supports resolution of up to 2048 x 1536 @ 60 Hz
- USB-powered compact VGA video splitter, no bulky external power adapter required
- Integrated signal amplifier boosts your connection range to 213.2' (65m)
- Supports DDC, DDC2, DDC2B (for video out port 1)
- Use for in-store product merchandising in retail environments to give your advertisements greater visibility
- Display travel schedules and alerts in airports, bus terminals and train stations
- Create engaging multimedia presentations for demonstration in lecture halls and classrooms
- Get your message across multiple displays for trade-shows or information booths/kiosks
- Quick and easy solution to split a video signal in auditorium like structures
UPC: 065030825856 In the Box StarTech 2-Port VGA Video Splitter (Black, USB Powered) USB to DC Power Adapter 2-Year Warranty Brochure PDF 132.4kbryveawcbcrvsvu More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 2-Port VGA Video Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST122LE Specs | Port | 2 | | Industry Standards | DDC, DDC2, DDC2B (on video out port 1) | | Maximum Cable Length | 213.2' (65 m) | | Integrated Cable Length | 15" (400 mm) | | Enclosure Type | Plastic | | LED Indicator | 1 x power | | Connector 1 | 1 x VGA (15-pin; high density D-Sub) male | | Connector 2 | 2 x VGA (15-pin; high density D-Sub) female | | Maximum Analog Resolutions | 2048 x 1536 | | Bandwidth | 300 MHz | | MTBF | 40,000 hours | | Power Requirement | 5 VDC USB Power Adapter Included | | Environmental Requirements | Operating Temperature: 32 to 158°F (0 to 70°C)
Storage Temperature: -4 to 185°F (-20 to 85°C)
Relative Humidity: 0 to 95% | | System Requirements | VGA enabled video source device with an available USB port
VGA enabled display devices | | Certifications | CE, FCC, RoHS | | Dimensions | 2.6 x 1.8 x 0.8" (68.0 x 46.0 x 21.5 mm) | | Weight | 3.8 oz (110 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.8 x 5.1 x 1.0" |
