User Manual for StarTech 25 RU 36" Knock-Down Server Rack Cabinet with Casters Click to enlarge the picture
Contents of the user manual for the StarTech 25 RU 36" Knock-Down Server
- Product category: Rack Furniture StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Rack Furniture
 |
User manual for the StarTech 25 RU 36" Knock-Down Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

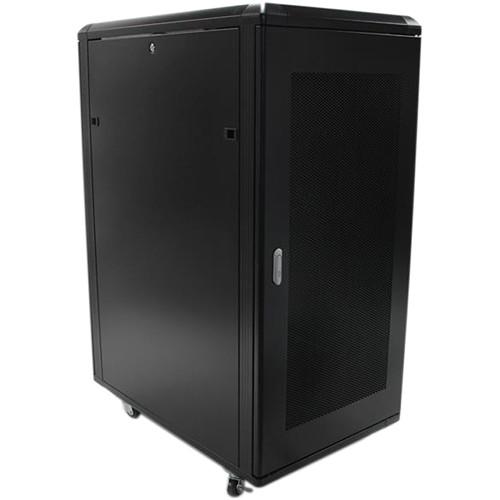

Product description The black StarTech 25 RU 36" Knock-Down Server Rack Cabinet with Casters is a large rack cabinet designed to hold up to 25 RU of 19" rack equipment for system installers and A/V technicians in server rooms, recording studios, and broadcast facilities. Its steel construction allows it to support a weight capacity of over 1760 pounds. The mounting rails can be adjusted to accommodate a maximum mounting depth of 32 inches. The locking front door features a glass window for visual monitoring of your equipment; the side doors are removable for easy gear access. Cooling is executed via a passive design comprised of the steel mesh rear door and vents on the ceiling and front door. The removable ceiling and floor panels provide wide brushed ports to allow efficient cable management while maintaining a clean appearance. The cabinet includes casters for facilities that require equipment mobility and grounding lugs in case secure floor mounting is required. It ships as a flat-pack, allowing space-efficient storage until assembly is desired. - Compliant with EIA-310 standards for 25 RU of 19" rackmount devices
- Passive cooling keeps your equipment at an optimal temperature
- Ceiling panel features square venting holes that are cage nut compatible

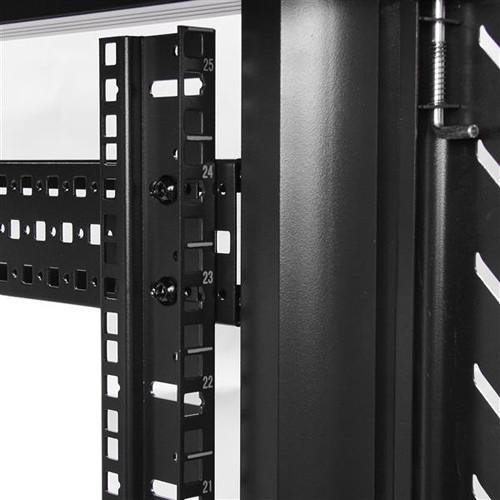

- Adjustable mounting rails allow a maximum mounting depth of 32"
- Removable side panels with independent, locking, quick-release mechanisms enable easy equipment access

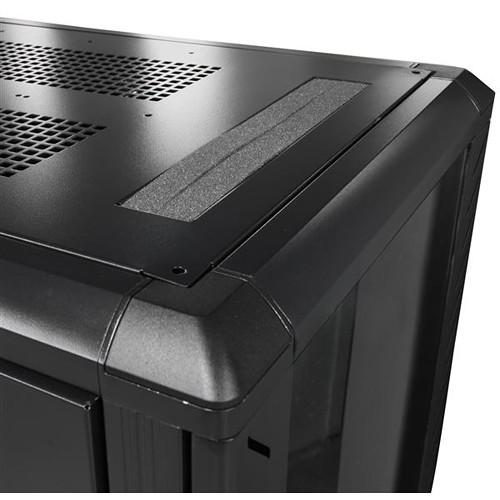

- Brushed ports on the ceiling and floor panels provide simple, clean cable management points

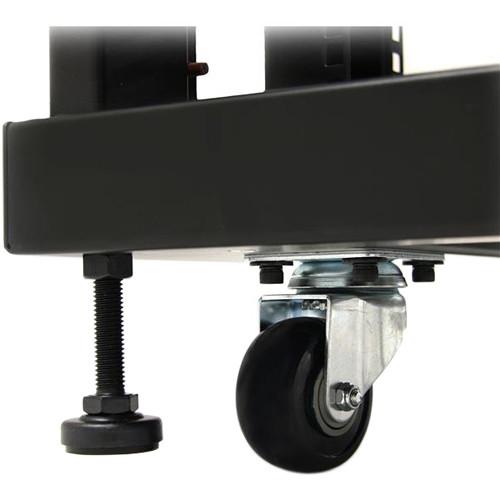

- Roll the rack on the casters or mount it to the floor via the grounding lugs
- Weight capacity over 1760 lb
- Easy to assemble with supplied hardware

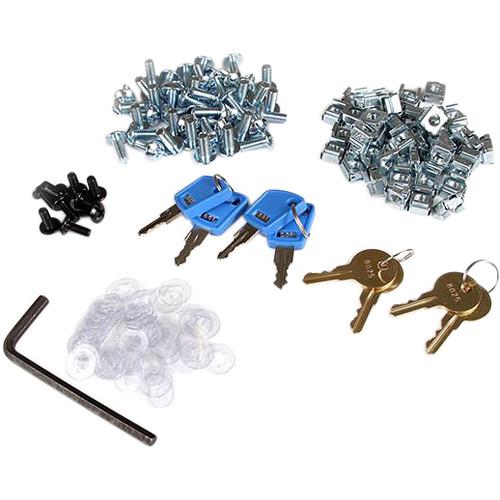

In the Box StarTech 25 RU 36" Knock-Down Server Rack Cabinet with Casters (Black) Top Panel 3 x Bottom Panels 2 x Side Panels and Frames 4 x Cross Braces 8 x Plastic Corner Caps 4 x Casters 2 x Sets of Keys Assembly Screw Kit Bag of M6 Cab Screws and Nuts 2 x Allen Wrenches 4 x Adjustable Feet Limited Lifetime Warranty More from Manufacturer csxestqucrxyyy Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 25 RU 36" Knock-Down Server Rack Cabinet with Casters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech RK2536BKF Specs | Rack Form Factor | 25 RU | | Rack Depth | 32" / 81.3 cm | | Load Capacity | 1763.7 lb / 800 kg (Stationary) | | Material of Construction | Steel | | Enclosure Design | Enclosed | | Interior Dimensions | 18.3 x 43.9 x 34.6" / 46.5 x 111.6 x 87.8 cm | | Exterior Dimensions (W x H x D) | 23.6 x 47.9 x 39.4" / 60 x 121.6 x 100 cm (without Casters)
23.6 x 51.3 x 39.4" / 60 x 130.3 x 100 cm (with Casters) | | Weight | 159.1 lb / 72.2 kg |
