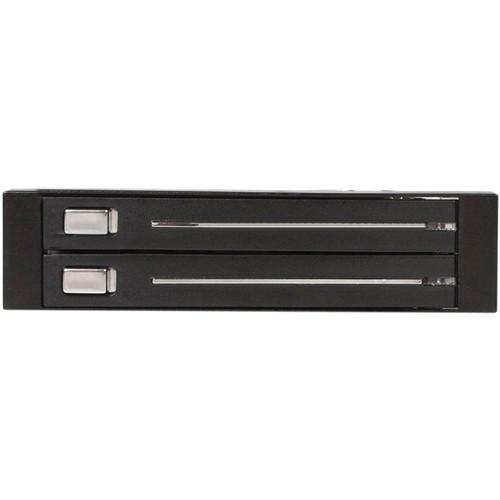

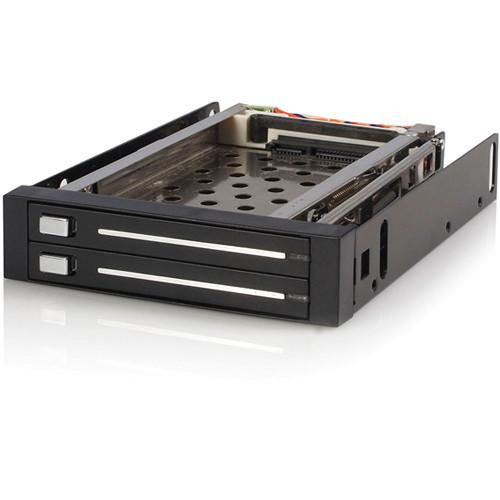

Product description The black 3.5" SATA Hot-Swap Bay for Dual 2.5" HDD from StarTech allows you to install two 2.5" SATA hard drives or solid state drives in a single 3.5" bay. It comes with a "no mounting required/easy eject" feature (like a tape cartridge or floppy disk). The HDD hot-swappable bay doesn't require the drives to be installed in a tray. To maximize performance and utilize the speed potential of SATA III hard drives, this HDD backplane supports SATA III for transfer speed of up to 6 Gb/s when paired with a compatible controller. It is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications. This backplane is suitable for operating system image deployment or any task that requires quick access to large volumes of data. - Holds up to two SATA drives in a single 3.5" bay
- Includes a plastic protective film for the bottom side of the hard drive
- Aluminum construction and 50,000+ insertion rating ensure durability of both the HDD/SSD and bay
- Power/activity LED for each drive
- High-performance transfer speed with SATA revision I/II/III (1.5/3.0/6.0 Gb/s)
- Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
- Plug and play and hot-swap compatible
- The trayless design facilitates quick installation and removal of HDD/SSD without having to open the chassis; drives are not mounted into separate trays/enclosures
Applications - IT environments, where you need to quickly insert or replace removable hard drives/solid state drives
- Imaging - For system building or configuring new systems
- Use the hot-swap bay in the master system to copy Windows OS quickly to a blank hard drive as part of the system building process
- Ideal for RAID applications (with RAID supported SATA controller)
UPC: 065030827980 In the Box StarTech 3.5" SATA Hot-Swap Backplane Bay for Dual 2.5" HDD 2 x LP4 to 4-Pin LED/15-Pin SATA Power Y-Cables 2 x SATA Cables 2 x Hard Drive Protector Films 1 x Screw Kit Limited 2-Year Warranty Brochure PDF 125.3kbseyzyedfcezxevyaxezubswct More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 3.5" SATA Hot-Swap Backplane Bay for Dual 2.5" HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech HSB220SAT25B Specs | | | Number of Drives | 2 | | Drive Size | 2.5" | | | | Connector Type | 2 x SATA (7-pin; data) receptacles
2 x SATA power (15-pin) receptacles
2 x SP4 (4-pin; small drive power) male | | Drive Connectors | 2 x SATA (7-pin; data) receptacles
2 x SATA power (15 pin) receptacles | | Host Connectors | 2 x SATA (7-pin; Data) plugs
2 x SATA power (15-pin) plugs | | | | Type and Rate | SATA III (6 Gb/s), SATA II (3 Gb/s), SATA I (1.5 Gb/s) | | Max Drive Capacity | Tested up to 500 GB per drive | | Hot-Swappable | Yes | | | | Enclosure Type | Aluminum | | LED Indicators | 1 x power/drive activity | | Certifications | CE, FCC, and RoHS | | Dimensions (L x W x H) | 5.3 x 4.0 x 0.9" (134.6 x 101.6 x 22.8 mm) | | Weight | 10 oz (283 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.5 x 5.0 x 2.0" |
