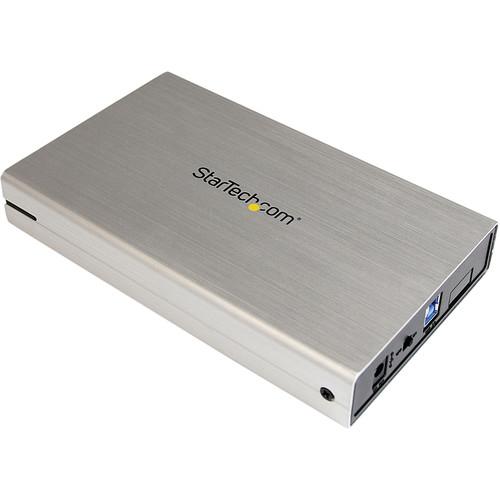

User Manual for StarTech 3.5" USB 3.0 SATA III External Hard Drive Enclosure with UASP Click to enlarge the picture
Contents of the user manual for the StarTech 3.5" USB 3.0 SATA III
- Product category: Hard Drive Enclosures & Docks StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Hard Drive Enclosures & Docks
|
User manual for the StarTech 3.5" USB 3.0 SATA III contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The silver 3.5" USB 3.0 SATA III External Hard Drive Enclosure with UASP from StarTech lets you connect a 3.5" SATA III hard drive (HDD) through an available USB port. The enclosure delivers optimal performance with a USB 3.0 connection and is backwards compatible with USB 2.0/1.1 host connections. Enhanced with USB Attached SCSI Protocol (UASP), this 3.5" SATA III enclosure performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP reduces latency and significantly increases transfer speeds while reducing processor usage to utilize the full potential of the SATA III hard drives. With support for SATA I/II/III, and large capacity drives (tested up to 4TB), this HDD enclosure is compatible with virtually any 3.5" SATA hard drive and can greatly increase the storage/backup capabilities of your computer. The 3.5" USB 3.0/SATA III enclosure features high-quality aluminum construction, ensuring durability. UASP is supported in Windows 8, Mac OS X (10.8 or above), and Linux. Moreover, UASP delivers 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. - The external drive is compliant with USB Attached SCSI Protocol (UASP) transport specifications
- Lightweight and durable aluminum enclosure
- SuperSpeed USB 3.0 compliant host interface supporting data transfer rates up to 5 Gb/s
- High-speed USB 2.0 compliant host interface with transfer rates up to 480 Mb/s
- LED indicator for power and activity
- Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gb/s) drives
- Plug-and-play and hot-swap compatible
- Applications:
- •Take advantage of laptops and desktops with USB 3.0 (UASP) connectivity•Turn a high-capacity SATA hard drive into a portable external storage solution•Create a fast, portable external storage solution for desktops, laptops, or netbooks•Upgrade the USB 2.0 drive enclosure to the SuperSpeed USB 3.0•Add extra storage to almost any USB-enabled computer system•Back up important data to an external storage device•Share large files between computers quickly and securely without a network•Retrieve data from an old SATA drive, or turn the unused drive into an additional external storage device
UPC: 065030852241 In the Box StarTech 3.5" USB 3.0 SATA III External Hard Drive Enclosure with UASP (Silver) Screw Kit Universal Power Adapter USB 3.0 Cable HDD Stand Limited 2-Year Warranty Brochure PDF 128.2kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 3.5" USB 3.0 SATA III External Hard Drive Enclosure with UASP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech S3510SMU33 Specs | Number of Bays | 1 x 3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA, SATA II, SATA III | | UASP Support | Yes | | OS Compatibility | Windows
macOS
Linux | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.6 A | | DC Input Power | 12 VDC at 2 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | 14 to 149°F / -10 to 65°C | | Storage Humidity | 5 to 95% | | | | Material of Construction | Aluminum, Plastic | | Bridge Chipset | ASMedia ASM1053E | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 7.5 x 1.2 x 4.5" / 191.5 x 31.4 x 115.4 mm | | Weight | 11.2 oz / 317.0 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.8 x 5.3 x 4.1" |
