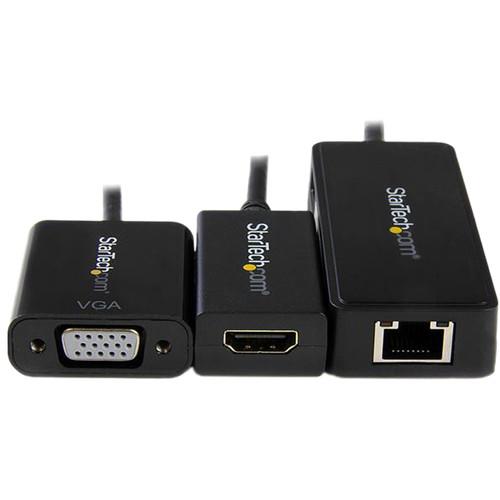

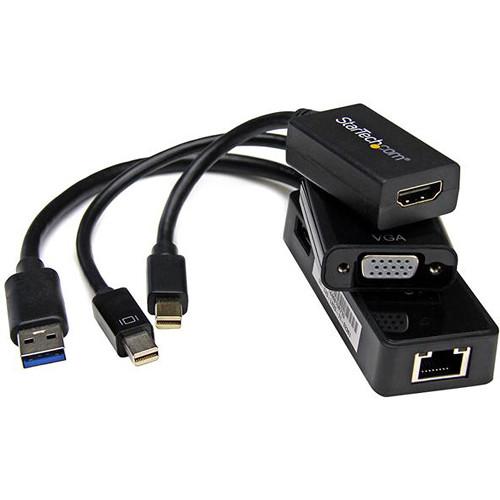

Product description Get more from your Microsoft Surface Tablet with the 3-in-1 Accessory Kit for Surface and Surface Pro from StarTech. This accessory kit contains a Mini DisplayPort to HDMI adapter, Mini DisplayPort to VGA adapter, and a USB 3.0 to Gigabit Ethernet adapter. Use the Mini DisplayPort adapters to connect to HDMI and VGA-compliant displays, projectors, or TVs. Then attach the USB 3.0 to Gigabit Ethernet adapter for a faster and more reliable internet connection. The Gigabit Ethernet adapter also has a USB pass-through port, so you don't lose the USB 3.0 port functionality. These adapters are light, easily portable, and intended to enhance your Surface experience. -
- Easily connect external displays or projectors with the plug-and-play Mini DisplayPort adapters
- Achieve wired internet speeds with the USB 3.0 to Gigabit Ethernet adapter
- Keep your USB 3.0 port with the pass-through port on the Gigabit Ethernet adapter

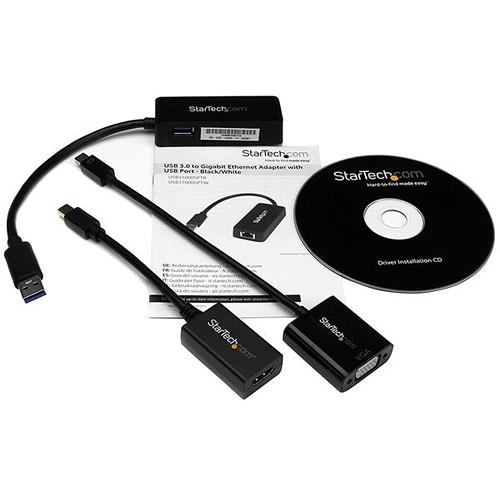

UPC: 065030859110 In the Box StarTech 3-in-1 Accessory Kit for Surface and Surface Pro Mini DisplayPort to HDMI Adapter Mini DisplayPort to VGA Adapter USB 3.0 to Gigabit Ethernet Adapter Limited 2-Year Warranty Brochure PDF 211.2kbvzvdvwwqbzrswevxrqwyxubyzqrc More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 3-in-1 Accessory Kit for Surface and Surface Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech MSTP3MDPUGBK Specs | Compatibility | Microsoft Surface Pro 2
Microsoft Surface 3
Microsoft Surface Pro 3
Microsoft Surface Pro 4
Microsoft Surface Pro
Microsoft Surface Book | | Connector 1 | Mini DisplayPort to HDMI AdapterConverter Type: Passive
Audio Specifications: 5.1 Surround Sound
Maximum Digital Resolution: 1920 x 1200
Connector A: Mini DisplayPort (20-pin), male
Connector B: HDMI (19-pin), femaleHeight: 0.6" (15 mm)
Length: 3" (76.2 mm)
Width: 1.6" (40 mm)
Weight: 2.1 oz (60 g)DisplayPort ++ required on video card or video source (DVI and HDMI pass-through must be supported) | | Connector 2 | Mini DisplayPort to VGA Adapter
Converter Type: Active
Maximum Analog Resolution: 1920 x 1200
Connector A: Mini DisplayPort (20-pin), male
Connector B: 15-Pin VGA, female
Length: 4" (102 mm)
Weight: 1.8 oz (50 g) | | Connector 3 | USB 3.0 to Gigabit Ethernet AdapterBus Type: USB 3.0
Chipset ID: ASIX AX88179, VIA VL811
Industry Standards: IEEE 802.3i, u, ab, az
Interface: RJ45
Ports: 1
USB Pass-Through: YesAuto MDIX: Yes
Compatible Networks: 10 / 100 / 1000 Mbps
Full Duplex Support: 4K max
Max Distance: 330' (100 m)
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet - full-duplex)
Connector A: RJ-45, female
Connector B: USB 3.0 Type-A (9-pin), female
Connector C: USB 3.0 Type-A (9-pin), male
LED Indicators: 10/100 Link/Activity (Green), Gigabit Link/Activity (Amber)
Environmental
Humidity: 5 to 85% RH
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Cable Length: 6.1" (155 mm)
Height: 0.7" (17 mm)
Length: 5" (126 mm)
Width: 1.4" (35 mm)
Weight: 1.5 oz (42 g) | | | | Package Weight | 0.39 lb | | Box Dimensions (LxWxH) | 6.65 x 5.55 x 1.2" |
