User Manual for StarTech 3-Port 2b 1a 1394 Low Profile PCI Express FireWire Adapter Card Click to enlarge the picture
Contents of the user manual for the StarTech 3-Port 2b 1a 1394 Low
- Product category: FireWire IEEE-1394 Controller Cards StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech FireWire IEEE-1394 Controller Cards
 |
User manual for the StarTech 3-Port 2b 1a 1394 Low contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

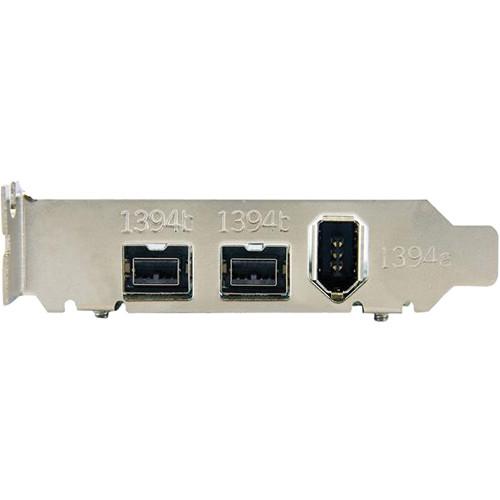

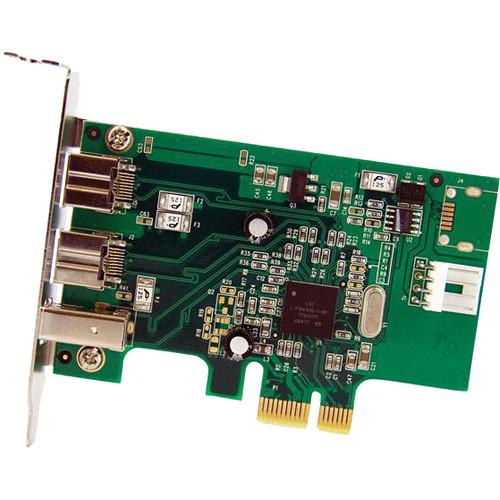

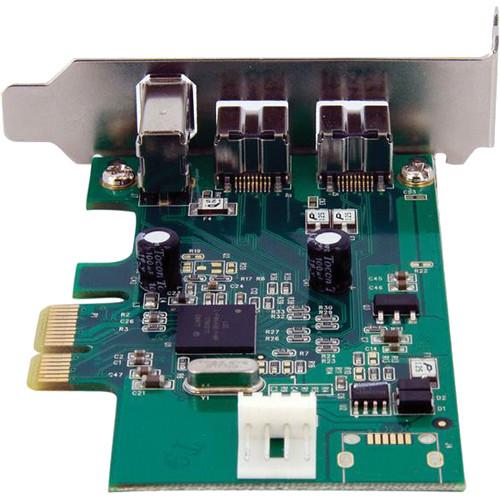

Product description The 3-Port 2b 1a 1394 Low Profile PCI Express FireWire Adapter Card from StarTech can be installed in a PCI Express slot. With dual IEEE 1394b ports and single IEEE 1394a port, it provides broad compatibility with a whole range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.). This adds 3 FireWire ports to a standard or small form factor computer enabling support for high powered FireWire devices. It features a native single chip PCI Express chipset which results in fast, reliable performance. Using this card, you can add high speed FireWire port to any desktop. One of its great applications is that a high speed external hard drive or digital camera can be connected to a PCI Express enabled system. Note: The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party. - Dual 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
- Single 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
- Built with a native PCI Express chipset, no bridge chip
- Internal power connector for high powered FireWire devices
- Includes low profile/half-height installation bracket
- Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
- The software included with this product supports a "typical" driver install only

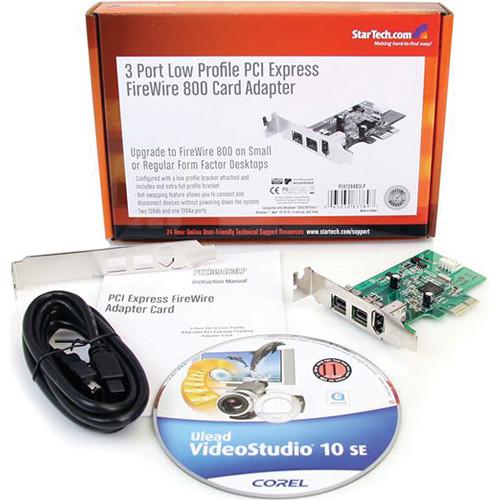

UPC: 065030837897 In the Box StarTech 3-Port 2b 1a 1394 Low Profile PCI Express FireWire Adapter Card FireWire Cable Full Profile Bracket Limited Lifetime Warranty with Free Lifetime Technical Support Manual PDF 766.4kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 3-Port 2b 1a 1394 Low Profile PCI Express FireWire Adapter Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech PEX1394B3LP Specs | Bus Type | PCI Express | | External I/O Ports | 1 - Firewire 400 (6 pin; IEEE 1394a) Female2 - Firewire 800 (9 pin; IEEE 1394b) Female | | Compliant Standards | IEEE - 1394 / 1394A / 1394BOHCIPCI 2.2 | | Interface | FireWire 800 (1394b) | | Data Transfer Rate | Up to 800 Mbps | | Ports | 3 | | Hardware | PCI Slot | | OS Compatibility | - Windows 10, 8.1, 8, 7, Vista, 2000, and XP
- Windows Server 2016, 2012, 2008 R2, and 2003
- Mac OS 10.6 to 10.14
- Linux 3.5.x to 4.4.x (LTS versions only) | | Humidity | 0 ~ 90% RH | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -4 to 194°F (-20 to 90°C) | | Dimensions | 7.8 x 6 x 2.3" (19.81 x 15.24 x 5.84 cm) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.5 x 5.3 x 2.1" |
