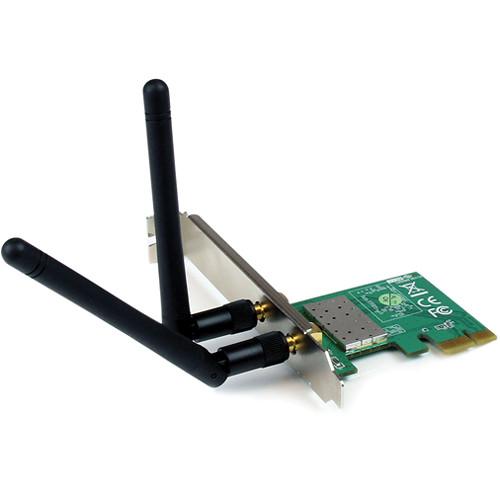

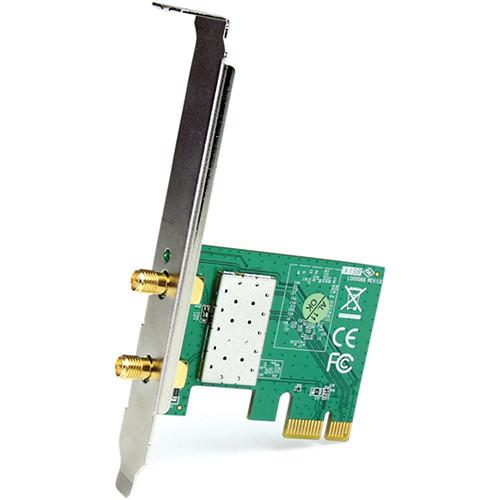

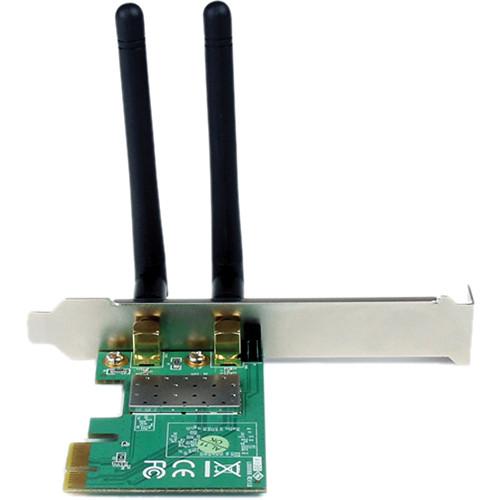

Product description The 300 Mb/s PCIe 802.11 b/g/n Wireless Network Adapter from StarTech adds high-speed wireless network connectivity to almost any PCIe-enabled desktop/workstation PC. Using a 2T2R (2 transmitter/2 receiver) design over the 2.4 GHz frequency, this PCIe wireless card provides up to 300 Mb/s of data bandwidth over an 802.11n network, while improving signal reception and range. Backwards compatible with 802.11b/g networks (11/54 Mb/s), this Wi-Fi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA, and WPA2. It also supports wireless Quality of Service (QoS) and facilitates quick and easy setup through WPS. - PCIe 2.0 and 802.11n compliance ensure a fast, reliable wireless-N network connection, while still being able to connect to older wireless b/g networks
- Support for wireless network security protocols and QoS ensures a safe and efficient network experience
- Includes both a full and low profile/half-height bracket for installation into any sized desktop computer
- Connect a remote workstation PC to a wireless-N network in environments where running network cables are not feasible
- 2 Transmitter/2 Receiver (2 x 2:2) antenna configuration
- Compliant with IEEE 802.11n standard, with support for up to 300 Mb/s of wireless data bandwidth
- Backwards compatible with IEEE 802.11b/g standards for up to 11/54 Mb/s connections respectively with Wireless-B and Wireless-G networks
- Supported security features are; WEP (64-128-bit), WPA, WPA2, WPS
- Support for WMM/WMM-PS Quality of Service (QoS)
- Infrastructure and Ad-Hoc network modes support

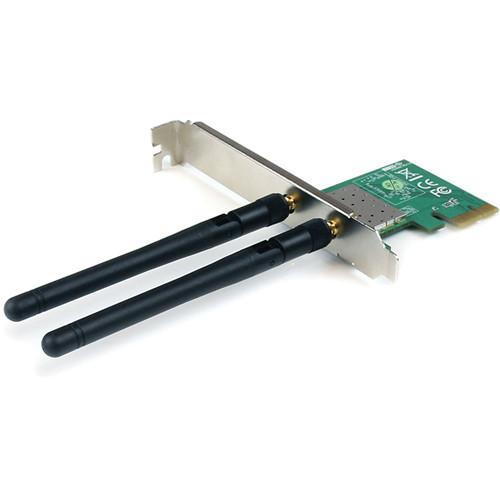

- Dual detachable 2dBi antennas

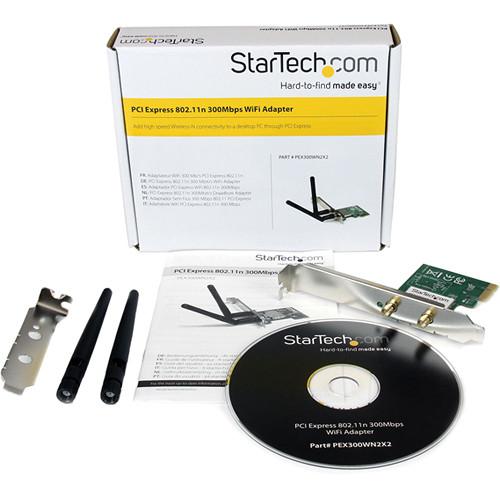

UPC: 065030844482 In the Box StarTech 300 Mb/s PCIe 802.11 b/g/n Wireless Network Adapter 2 x Antennas Low Profile Bracket Driver CD Limited 2-Year Warranty Guides & Manuals aurzautsvvvwdstxdfxf More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 300 Mb s PCIe 802.11 b g n Wireless Network Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 300 Mb s PCIe 802.11 b g n Wireless Network Adapter can be downloaded in PDF format at the link stated below.

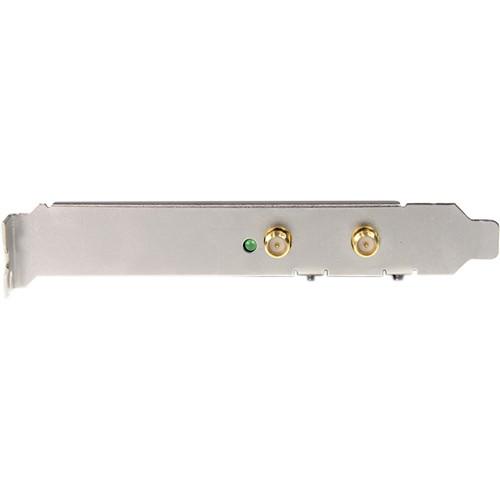

Technical parametersStarTech PEX300WN2X2 Specs | | | Interface | Wireless Ethernet | | Bus Type | PCIe x1 | | Card Type | Standard profile | | Antenna | Antenna Configuration: 2 x 2:2 (T x R:S) | | Industry Standards | IEEE 802.11b, IEEE 802.11g, IEEE802.11n | | Chipset ID | Ralink RT5392 | | | | Connector Type | 2 x RP-SMA (Coax; Reverse Polarity SubMiniature A) female | | | | Bandwidth | 20/40 MHz | | Frequency Range | 2.4 to 2.484 GHz | | Maximum Data Transfer Rate | 802.11n: 300 Mb/s | | Supported Protocols | CSMA/CA | | Full Duplex Support | Yes | | Modulation | OFDM/DSSS/DBPSK/DQPSK/CCK | | Security Features | TKIP/AES
WEP data encryption
WPA data encryption | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Windows Server 2008 R2, 2003 (32/64-bit)
Linux 2.6.32 or later | | | | LED Indicators | 1 x Link/Activity (green) | | | | Operating Temperature | 14 to 158°F (-10 to 70°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 5 to 95% RH | | | | System and Cable Requirements | Available full profile PCIe expansion slot | | | | Dimensions (L x W x H) | 3.0 x 1.9 x 0.7" (7.5 x 4.9 x 1.8 cm) | | Weight | 1.3 oz (36.0 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.6 x 5.6 x 1.4" |
