User Manual for StarTech 39.4' SFF-8087 SATA SAS to 4 x SATA SAS Cable Click to enlarge the picture
Contents of the user manual for the StarTech 39.4' SFF-8087 SATA SAS to
- Product category: SATA & eSATA Cables StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech SATA & eSATA Cables
|
User manual for the StarTech 39.4' SFF-8087 SATA SAS to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

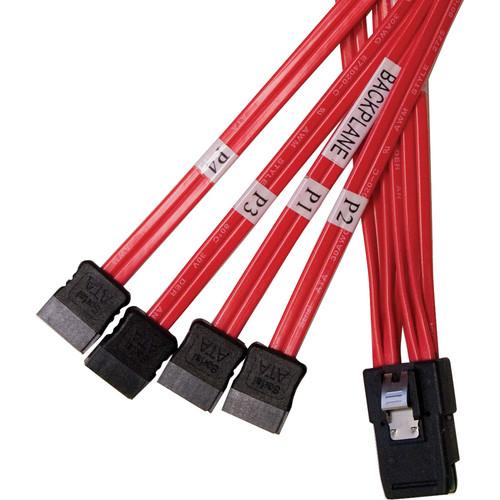

Product description The red 39.4' (1m) SFF-8087 SATA/SAS to 4 x SATA/SAS Cable from StarTech connects a SATA/SAS controller to 4 SATA drives. The cable features a 36-pin plug (SFF-8087), which fans out to 4 SATA 7-pin receptacles, providing a reliable solution for connecting a SATA Hard Disk drive (HDD) to a SAS controller or backplane. Designed and constructed for long-lasting dependability and reliability, the cable provides high-performance SAS/SATA drive and backplane connectivity. In addition, the latching SATA and SAS connectors eliminate accidental disconnections. - Supports up to 6 Gb/s throughput per channel
- Features 4 latching SATA connectors
- Connects a Serial ATA hard drive to a Serial Attached SCSI (SAS) controller or backplane
UPC: 065030846998 In the Box StarTech 39.4' (1m) SFF-8087 SATA/SAS to 4 x SATA/SAS Cable (Red) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 39.4' SFF-8087 SATA SAS to 4 x SATA SAS Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SAS8087S4100 Specs | Interface / Transfer Rate | SATA III: 6 Gb/s | | Length | 39.4' (1 m) | | Number of Conductors | 2 | | Connector 1 | 1 x SFF-8087 (36-pin; internal mini-SAS) latching plug | | Connector 2 | 4 x SATA (7-pin; data) latching receptacle | | Wire Gauge | 30 AWG | | Connector Style | Latching | | RoHS Compliant | Yes | | Weight | 0.2 lb (0.1 kg) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 7.7 x 4.1 x 0.9" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 90 owners. Add your rating and experience with the product.
