User Manual for StarTech 4-Bay Mobile Rack Backplane for 2.5" SATA SAS Drives Click to enlarge the picture
Contents of the user manual for the StarTech 4-Bay Mobile Rack Backplane for
- Product category: Internal Hard Drive Trays StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Internal Hard Drive Trays
 |
User manual for the StarTech 4-Bay Mobile Rack Backplane for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

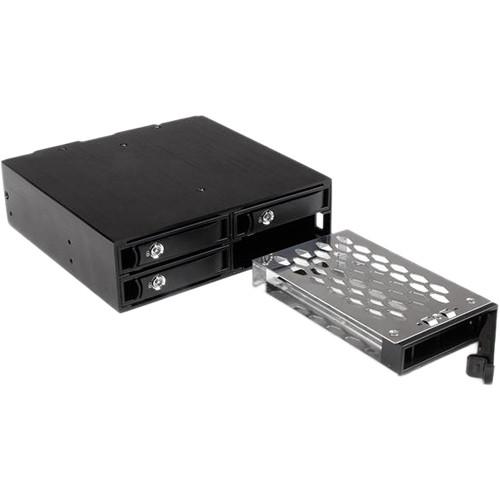

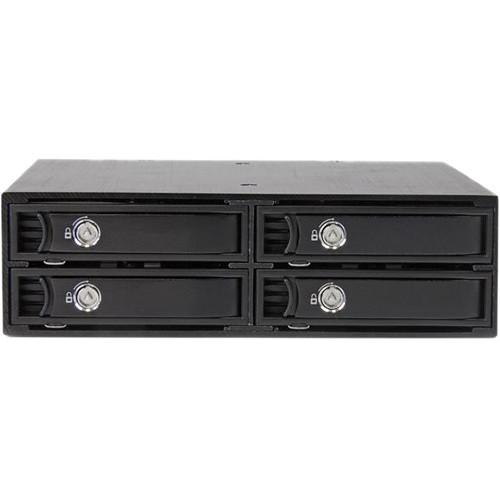

Product description Provided by third party: Hot swap with ease by installing four SSDs/HDDs into one 5.25in bay. Now it's easy to drive share and enhance the storage capabilities of your server or PC. This mobile rack backplane lets you install four 2.5in SATA or SAS solid-state or hard disk drives into a single 5.25in bay and quickly hot swap them between systems. It's ideal for systems integrators and administrators who are looking for flexible management of their data storage.

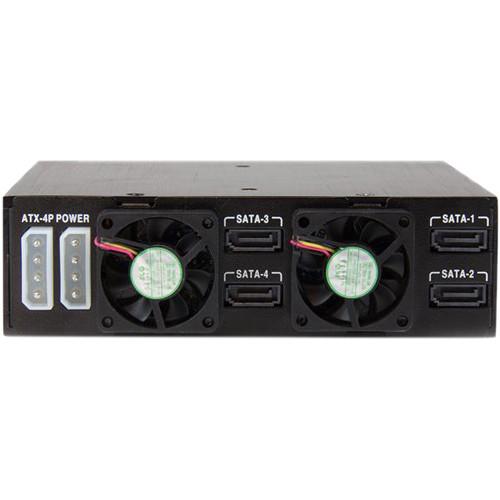

The mobile rack backplane is engineered to protect your valuable data and provide reliable performance. The aluminum housing is designed for enhanced heat dissipation, while two 40mm fans improve air flow to minimize heat build-up and ensure optimum operating temperature.

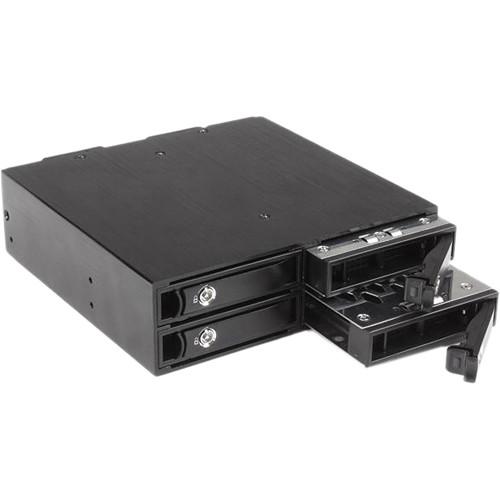

The backplane can be mounted either vertically or horizontally, for error-free tray insertion and maximum compatibility with servers or desktop computers.You can lock the removable steel trays in place, providing an enhanced level of drive protection. The Non-Scratch SATA (NSS) connector provides a high 50,000+ insertion rating, your assurance of long-lasting performance of both the drives and the bay.
Many fast-paced work environments require drives to be removed regularly. Hot swap between systems quickly, without shutting down, with the convenient backplane.
The included drive trays are interchangeable, working with both the 4-bay backplane and the single-bay backplane (SATSASBP125) so you can hot swap between systems for easy file access.
Designed for versatile use, the backplane supports an extensive range of both SATA or SAS based HDDs and SSDs, from 5 to 15mm in height.
To maximize the performance of your drives, the mobile rack supports SAS II and SATA III performance for transfer speeds up to 6 Gbps when paired with a compatible controller. The backplane also works with your preferred RAID controller or Hyper Duo controller to produce a high-performance or redundant storage solution.
UPC: 065030859837 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Bay Mobile Rack Backplane for 2.5" SATA SAS Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SATSASBP425 Specs | | | Device Type | Storage enclosure | | Enclosure Color | Black | | | | Supported Devices / Modules Qty | 4 | | Supported Drives | SATA-600 / SAS-2 | | | | Type | Hot-swap | | Capacity | 0 | | Interface Type | SATA 6Gb/s / SAS 6Gb/s | | | | Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" | | Interfaces | 4 x SATA 6Gb/s - 7 pin Serial ATA
4 x SAS 6Gb/s - 7 pin Serial ATA
1 x - 4 pin internal power | | | | Features | Key lock, LED indicator, built-in cooling fan | | Cables Included | 4 x Serial ATA cable - 13 ft | | MTBF | 30,000 hours | | Compliant Standards | FCC, RoHS | | Included Accessories | 4 x drive trays, 20 x drive mounting screws, 8 x backplane mounting screws | | | | Width | 5.7 in | | Depth | 6 in | | Height | 1.7 in | | Weight | 26.1 oz | | | | Service & Support | Limited warranty - 2 years | | | | Min Operating Temperature | 32
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
