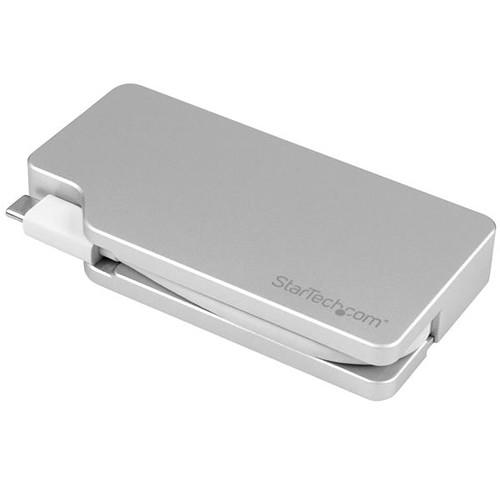

User Manual for StarTech 4-in-1 USB Type-C A V Multi-Adapter Hub Click to enlarge the picture
Contents of the user manual for the StarTech 4-in-1 USB Type-C A V
- Product category: Computer Monitor Adapters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Computer Monitor Adapters
 |
User manual for the StarTech 4-in-1 USB Type-C A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Built with a sturdy aluminum housing and integrated Mini DisplayPort 1.2, HDMI, Dual Link DVI-D, and VGA outputs, as well as an integrated USB Type-C cable, the 4-in-1 USB Type-C A/V Multi-Adapter Hub from StarTech allows users to connect their USB Type-C system, such as the Apple MacBook, to an external Mini DisplayPort, HDMI, Dual Link DVI-D, or VGA display. Please bear in mind that in order to pass a DisplayPort video signal through the USB Type-C port, your system must support DP alt mode.
This adapter supports a maximum digital resolution of 3840 x 2160 and a maximum analog resolution of 1920 x 1200. Using the Mini DisplayPort or HDMI outputs, resolutions of 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, and 1280 x 720 are supported, while the Dual Link DVI-D and VGA outputs support resolutions of 1920 x 1200, 1920 x 1080, and 1280 x 720. Additionally, the Mini DisplayPort and HDMI outputs support 7.1-channel surround sound. Please note that only one video output may be used at a time. If multiple outputs are used, only one will function.
The 4-in-1 USB Type-C A/V Multi-Adapter Hub is also compatible with Thunderbolt 3 devices that are capable of outputting a DisplayPort signal. It is VESA certified, utilizes plug-and-play installation, and its small footprint and lightweight design mean it won't take up much room in your workspace, while also making it easily portable for on-the-go use. General Features - All-In-One Video Connectivity
- Instead of filling your laptop bag with different converters for different displays, this 4-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI, HDMI and Mini DisplayPort outputs, this adapter lets you connect from your laptop's USB Type-C port to virtually any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type.
With support for multiple video outputs and a small-footprint design, this adapter is a well-suited plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office. - Built-In Cable Manager
- The adapter features a built-in magnetic fastener for cable management. The magnet helps guide the breakout cable into place for quick and secure storage while traveling, ensuring the adapter is neatly stored in your travel bag.
- Picture Quality - Up to UHD 4K
- The HDMI and Mini DisplayPort outputs on this travel adapter support Ultra HD 4K resolutions, providing four times the picture quality of Full HD 1080p. The HDMI and Mini DisplayPort outputs are also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also a good fit for your legacy video equipment. The VGA and DVI outputs also support HD resolutions up to 1920 x 1200, so you can still enjoy excellent video quality.
This travel adapter is compatible with USB Type-C Intel Thunderbolt 3 devices that are capable of outputting a DisplayPort signal. - DP alt Mode
- The travel adapter is VESA certified to ensure compatibility with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB Type-C port.
UPC: 065030863094 In the Box StarTech 4-in-1 USB Type-C A/V Multi-Adapter Hub Limited 2-Year Warranty Brochure PDF 206kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-in-1 USB Type-C A V Multi-Adapter Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech CDPVGDVHDMDP Specs | | | Display | 1 x Mini DisplayPort 1.2 (Female)
1 x VGA (Female)
1 x DVI-D (Female)
1 x HDMI (Female) | | | | System Connection | USB (Unspecified Type) Type-C Male | | | | Maximum Supported Resolution | 3840 x 2160 | | Audio Support | Yes, 7.1 Channel | | | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | 14 to 176°F / -10 to 80°C | | Operating Humidity | 40 to 50% | | | | Cable Length | 0.4" / 10.2 mm | | Dimensions | 0.6 x 4.1 x 2.2" / 15.2 x 104.1 x 55.9 mm | | Weight | 4.4 oz / 124.7 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.7 x 5.7 x 1.3" |
