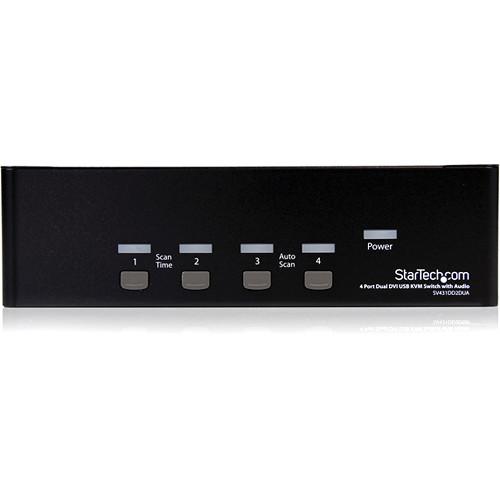

User Manual for StarTech 4-Port Dual DVI 2.0 USB Hub KVM Switch with Audio Click to enlarge the picture
Contents of the user manual for the StarTech 4-Port Dual DVI 2.0 USB
- Product category: KVM Switches StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Switches
 |
User manual for the StarTech 4-Port Dual DVI 2.0 USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

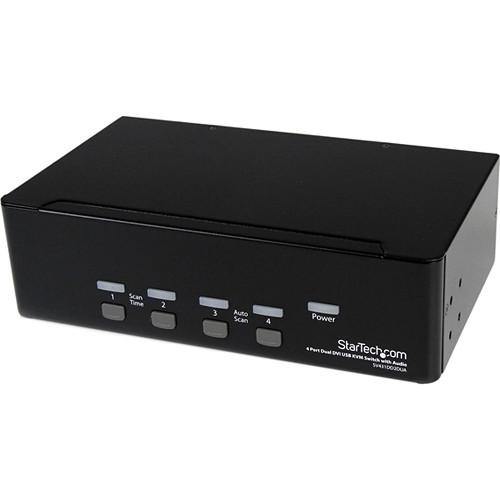

Product description Multi-Monitors: Maximizing Multitasking Read More The black 4-Port Dual DVI 2.0 USB Hub KVM Switch with Audio from StarTech allows up to four dual display multimedia computers, each with dual DVI video outputs, to share two monitors, one microphone and a set of speakers, one keyboard and one mouse, as well as two USB peripherals. It supports resolutions up to 2048 × 1536 (analog) and 1920 × 1200 (digital). Take full advantage of dual head video cards by switching up to four machines across two high-resolution DVI monitors. The switch is an ideal solution for graphic designers, CAD/CAM designers, or educational and financial institutions. This dual view KVM switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional-level video quality on both monitors. It also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives, or web cams to be shared between attached systems, thus eliminating duplicate peripheral costs. Note: While both DVI-I (analog mode) and DVI-D (digital mode) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections. - The switch has a four-system control for single user workstations with dual head video cards, thus increasing user productivity in the office
- It comprises of front panel push-button and hot-key functions for easy switching
- An integrated USB 2.0 hub allows USB 2.0 peripherals such as thumb drives, external hard drives, and web cams to be shared between attached systems, thus eliminating duplicate peripheral costs.
- The switch has an audible tone that confirms port switching
- It is a combined or independent switching of audio and/or USB hub ports
- The EDID retention eliminates hassle when switching between computers as the KVM remembers monitor settings
- The switch supports all USB-capable operating systems that include Windows 98e/SE/ME/2000/XP/Vista/7, Linux, Mac OS, and more
- It is TMDS compliant and supports DDC2B emulation and HDCP for digital content protection
- It has a status LED display for easy port status monitoring

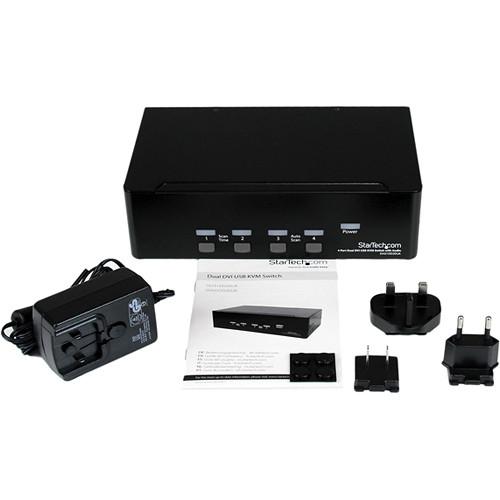

UPC: 065030835695 In the Box StarTech 4-Port Dual DVI 2.0 USB Hub KVM Switch with Audio (Black) 4 x Rubber Feet Universal Power Adapter (US/UK/EU) 3-Year Limited Warranty Brochure PDF 203.4kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port Dual DVI 2.0 USB Hub KVM Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

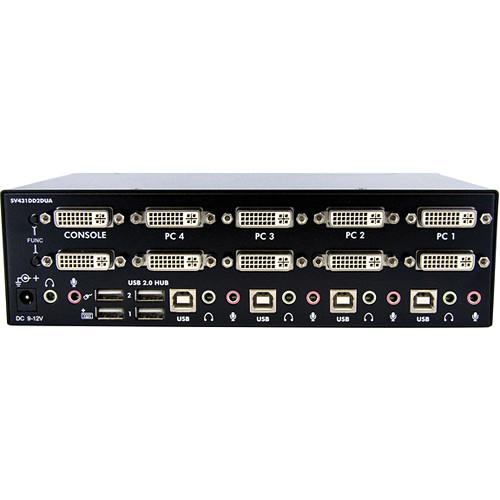

Technical parametersStarTech SV431DD2DUA Specs | | | Audio | Yes | | KVM Ports | 4 | | PC Interface | USB | | PC Video Type | DVI | | Multi-Monitor | Yes | | Rack-Mountable | Optional | | | | Operating System | Windows 98e/SE/ME/2000/XP/Vista/7, Linux, Mac OS, and more No software or drivers are required, thus providing a completely OS independent KVM solution | | | | Console Interfaces | 2 x DVI-I (29-pin) female
2 x 0.14" (3.5 mm) mini-jack (3-position) female
4 x USB A (4-pin) female | | Host Connectors | 8 x DVI-I (29-pin) female
4 x USB B (4-pin) female
8 x 0.14" (3.5 mm) mini-jack (3-position) female | | | | DVI Support | Single link | | Maximum Analog Resolution | 2048 x 1536 @ 85Hz | | Maximum Digital Resolution | 1920 x 1200 @ 60Hz | | Maximum Number of Users | 1 | | Port Selection | Push button and hot keys | | Indicators | LED Indicators1:
Green: Power
LED Indicators4:
Green: Host Online
Red: Host Selected | | | | Input Voltage | 110 ~ 240 AC | | Input Current | 0.8 A | | Output Voltage | 12 DC | | Output Current | A | | Center Tip Polarity | Positive | | Plug Type | M | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 90 % RH | | | | Enclosure Type | Steel | | Dimensions (W x H x D) | 8.7 x 2.4 x 5.1" (220.9 x 60.9 x 129.5 mm) | | Weight | 44.2 oz (1253.0 g) | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 11.7 x 9.7 x 3.3" |
