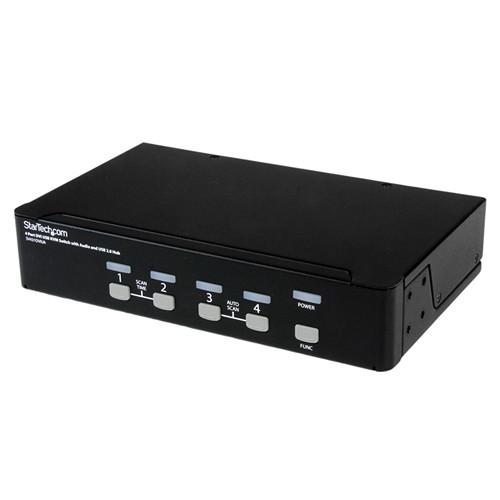

User Manual for StarTech 4-Port DVI USB KVM Switch with Audio and USB 2.0 Hub Click to enlarge the picture
Contents of the user manual for the StarTech 4-Port DVI USB KVM Switch
- Product category: KVM Switches StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Switches
 |
User manual for the StarTech 4-Port DVI USB KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The black 4-Port DVI USB KVM Switch with Audio and USB 2.0 Hub from StarTech lets you control four USB-enabled DVI-capable computers from a single USB keyboard and mouse peripheral set. The KVM switch is ideal for multimedia applications and supports audio and microphone switching. It allows you to switch between audio/mic channels either independently or simultaneously when switching between computers for KVM control. The switch features an integrated USB 2.0 hub which allows you to use shared USB peripherals from the control point as if the devices were connected directly to the slave computers. It is a cost-effective solution that lets you use USB peripherals between computers (when selected), eliminating the expense of buying individual peripherals for each slave computer. - Built-in 4-port independent/simultaneous USB 2.0 device hub for sharing high-speed USB devices with audio and microphone switching
- Versatile compliance with USB 2.0 and older versions
- Perfect for demanding high resolution applications (2560 x 1600 at 60 Hz (analog))

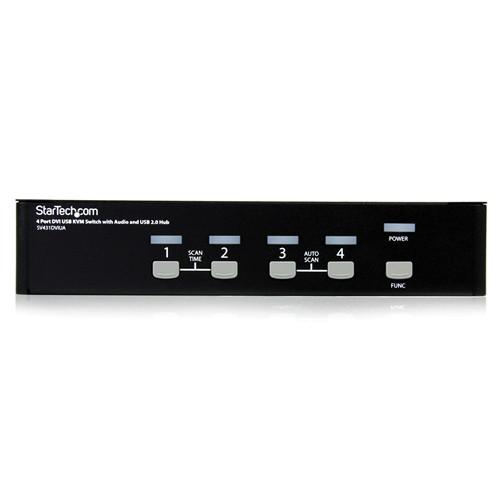

- Channel selection/hub port control by front-panel push buttons
- DVI interface technology supports digital video signal transmission
- USB keyboard and mouse support
- Applications:
- Ideal for using desktops, workstations, and servers with Flat Panel LCD monitor
Sharing computers and USB devices in the home/SOHO/multimedia environment
Switching USB peripherals instantly between PCs

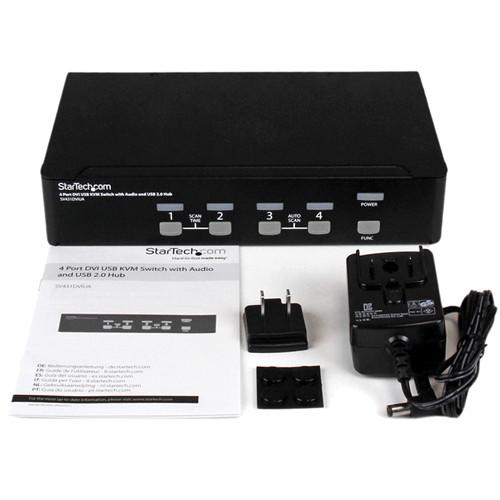

Switches instantly between PCs UPC: 065030824958 In the Box StarTech 4-Port DVI USB KVM Switch with Audio and USB 2.0 Hub (Black) 4 x Rubber Feet Power Adapter Limited 3-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port DVI USB KVM Switch with Audio and USB 2.0 Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 4-Port DVI USB KVM Switch with Audio and USB 2.0 Hub can be downloaded in PDF format at the link stated below.
Technical parametersStarTech SV431DVIUA Specs | | | Audio | Yes | | KVM Ports | 4 | | PC Interface | USB | | PC Video Type | DVI | | | | Console Interfaces | 1 x DVI-I (29-pin) female
2 x 3.5 mm mini-jack (3-position) female

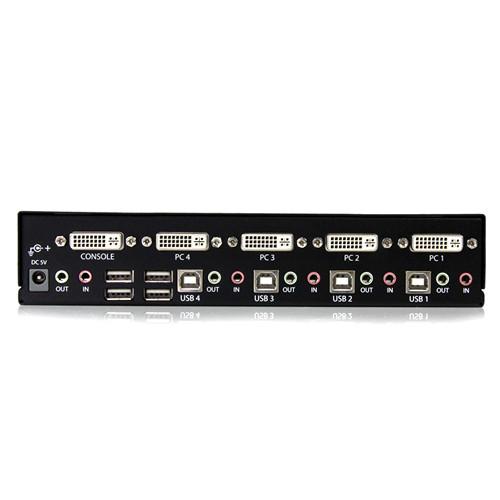

2 x USB A (4-pin) female | | Host Connectors | 4 x DVI-I (29-pin) female
4 x USB B (4-pin) female
8 x 3.5 mm mini-jack (3-position) female | | Other Interface | 2 x USB A (4-pin) female | | | | DVI Support | Yes | | Maximum Analog Resolution | 2560 x 1600 at 60 Hz | | Maximum Digital Resolution | 1920 x 1200 at 60/70 Hz | | Maximum Number of Users | 1 | | | | Plug Type | M | | Input Voltage | 110 ~ 240 AC | | Input Current | 0.4 A | | Output Voltage | 5 VDC | | Output Current | 2 A | | Center Tip Polarity | Positive | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0~80% | | | | Enclosure Type | Steel | | Compliance | HDCP and RoHS | | Dimensions (L x W x H) | 10.0 x 1.8 x 4.5" (254.0 x 45.7 x 114.3 mm) | | Weight | 3.63 lb (1.64 kg) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 16.299 x 8.504 x 3.543" |
