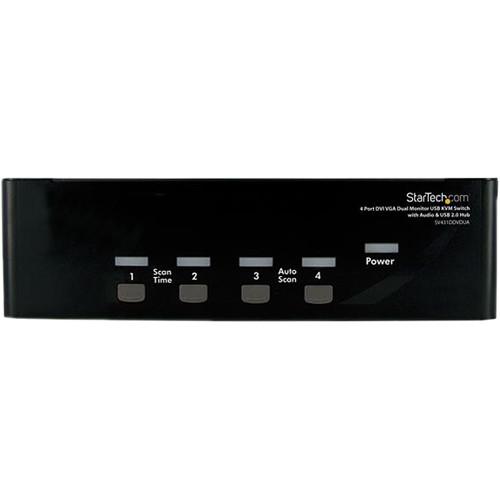

User Manual for StarTech 4-Port DVI VGA Dual Monitor KVM Switch with Audio & USB Hub Click to enlarge the picture
Contents of the user manual for the StarTech 4-Port DVI VGA Dual Monitor
- Product category: KVM Switches StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Switches
 |
User manual for the StarTech 4-Port DVI VGA Dual Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The black 4-Port DVI + VGA Dual Monitor KVM Switch with Audio & USB Hub from StarTech lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set. This dual view KVM switch provides one VGA and one DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers. The DVI + VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers. It offers a compact design with a rugged metal chassis for durable performance. Note: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source. - Direct channel selection and operation using front panel push-button or keyboard hotkeys
- Supports a maximum digital resolution of 1920 x 1200 and analog resolution of 1920 x 1440; recommended resolution is 1920 x 1200
- High-resolution DVI and VGA ports support almost any dual display scenario (maximum digital resolution of 1920 x 1200 and analog of 1920 x 1440); even with one DVI + VGA PC, and one dual DVI PC. Additionally, an adapter can be used with this KVM to support configuration
- Integrated USB 2.0 hub and Mic/Audio switching allow users to have full multimedia control of two computers and share USB peripherals, eliminating the expense of duplicate devices
- Absolutely no software or drivers required, providing a completely OS independent KVM solution
- OS independent (no drivers or software required)
- Full support for plug-and-play peripherals
- Status LED display for easy port status monitoring
- USB style keyboard and mouse, plus two other USB 2.0 peripherals can be shared between two computers
- Tone indicators for computer switching
- Selectable time intervals for auto scan
- Rear function key to adjust video strength
- Applications:
- Perfect solution for desktops, workstations, and servers with both VGA and DVI-D ports, allowing users to take advantage of dual monitor configurations
Ideal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high-resolution dual monitor units are needed
Suitable for use in environments with electromagnetic interference, based on sturdy metal design

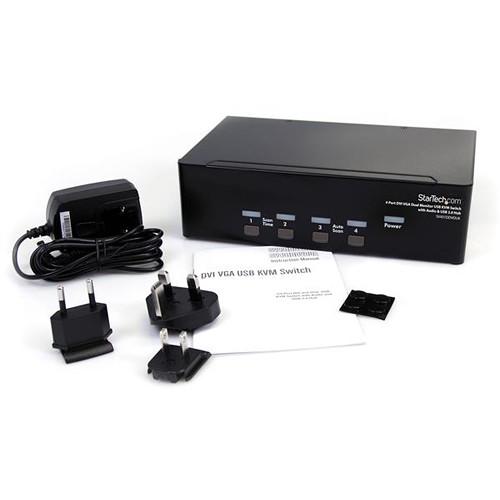

Versatile support for setups where one machine is DVI and VGA, and the other is VGA and VGA (with available adapters) UPC: 065030835701 In the Box StarTech 4-Port DVI + VGA Dual Monitor KVM Switch with Audio & USB Hub (Black) Rubber Feet Universal Power Adapter (US/UK/EU) Limited 3-Year Warranty Brochure PDF 204.7kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port DVI VGA Dual Monitor KVM Switch with Audio & USB Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

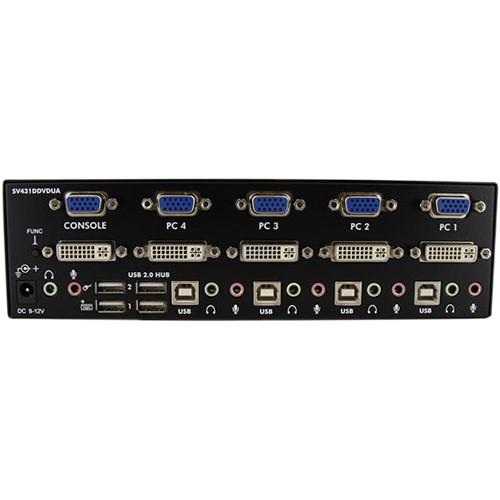

Technical parametersStarTech SV431DDVDUA Specs | | | Audio | Yes | | KVM Ports | 4 | | PC Interface | USB | | PC Video Type | DVI + VGA | | Multi-Monitor | Yes | | | | Console Interfaces | 1 x DVI-I (29-pin) female 1 x VGA (15-pin; high density D-Sub) female 2 x 3.5 mm mini-jack (3-position) female 4 x USB A (4-pin) female | | Host Connectors | 4 x 3.5 mm mini-jack (3-position) female
4 x DVI-I (29-pin) female
4 x USB B (4-pin) female
4 x VGA (15-pin; high density-D-Sub) female | | | | DVI Support | Single link | | Maximum Analog Resolution | 1920 x 1400 | | Maximum Digital Resolution | 1920 x 1200 | | Maximum Number of Users | 1 | | Port Selection | Push button and hotkeys | | | | LED Indicators | 1 x Green - Power
2 x Green - PC Detected
2 x Red - PC Indicator | | | | Plug Type | M | | Center Tip Polarity | Positive | | Input Voltage | 110 ~ 240 VAC | | Input Current | 0.8 A | | Output Voltage | 12 VDC | | Output Current | 1.5 A | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 80% RH | | | | Enclosure Type | Steel | | Length | 6.4" (162.5 mm) | | Dimensions (W x H x D) | 8.7 x 2.4 x 5.1" (220.9 x 60.9 x 129.5 mm) | | Weight | 43.6 oz (1236.0 g) | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 11.8 x 10.0 x 3.1" | Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source.
