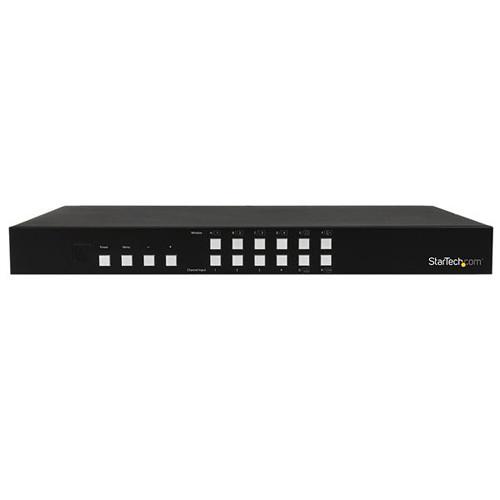

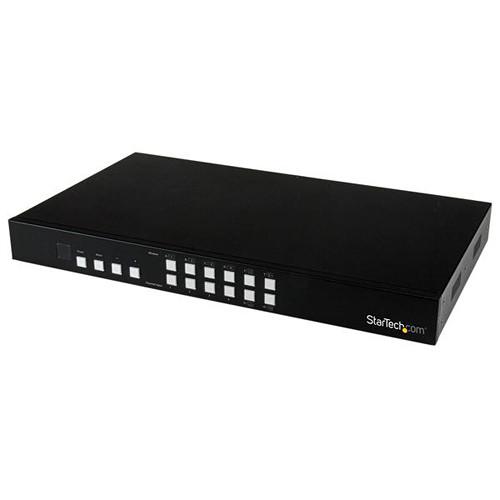

Product description The 4-Port HDMI Switch with Picture-and-Picture Multiviewer from StarTech allows you to connect four HDMI video sources to a single HDMI display, with the added benefit of playing all sources on your display simultaneously. The split-screen multiplexing switch gives you the flexibility of a 4-port video switch. - Complete Picture Display
-
- The split-screen multiplexing switch gives you the flexibility of a 4-port video switch with the added benefit of combining two, three or four video sources onto your output display

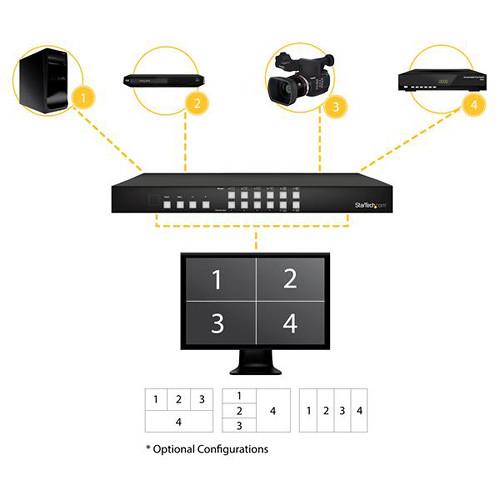

- Supports three different picture-and-picture modes per display: Matrix (1x1) / Dual (2x1) / Quad (4x1)
- Output Control
-
- Control and adjust your video sources remotely via RS-232 (serial), RJ45 (local TCP/IP network), or the included IR remote control
- Increases Display Versatility
-
- Flexible video switch can improve any video display application
- Picture-and-Picture technology enables you to share up to four distinct images on the same screen
- For security monitoring, you can combine four video sources across a single display, zooming in to a single feed for a closer look
- For versatile installation options, mounting hardware is included
- Applications
-
- Allows for multi-screen configurations
- Provides multiple video sources on the same screen of your digital signage applications
- Ideal for connecting/switching multiple sources in test bench facilities, data centers, help desks, and broadcasting facilities
- General
-
- Save cost and screen real estate by combining multiple inputs on a single HDMI display
- You can customize your output with multiple display modes for combining video
- Supports video resolutions up to 1920 x 1200 and 1080p
- Mounting hardware included

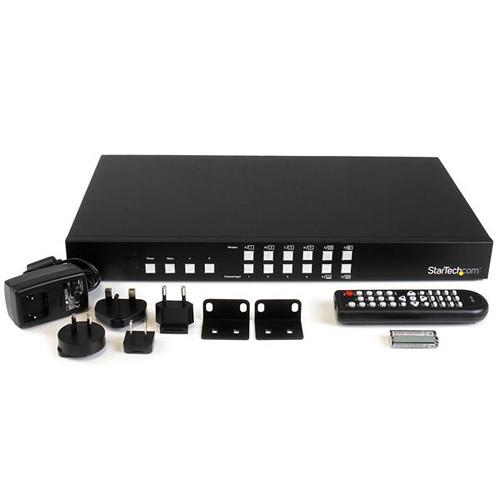

UPC: 065030858472 In the Box StarTech 4-Port HDMI Switch with Picture-and-Picture Multiviewer 2 x Mounting Bracket Remote Control Universal Power Adapter Limited 2-Year Warranty More from Manufacturer wufrrvtferrtezsuyurccazafx Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port HDMI Switch with Picture-and-Picture Multiviewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech VS421HDPIP Specs | Supported Resolutions | 1920 x 1200
1920 x 1080
1280 x 720

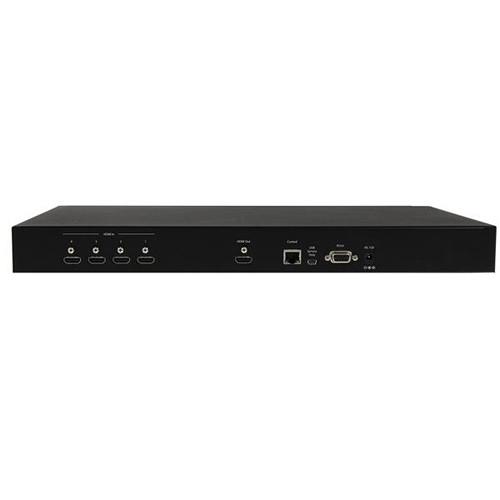

640 x 480 | | Connectors | Video In:
4 x HDMI (19-pin), female
Video Out:
1 x HDMI (19-pin), female
Control:
1 x RS-232 (D-Sub), male
1 x RJ45, female
1 x Infrared (SIR/FIR) | | Audio Specifications | 7.1 surround sound | | Widescreen Support | Yes | | Input Current | 1 A | | Input Voltage | 100 to 240 AC | | Output Current | 3 A | | Output Voltage | 12 VDC | | Power Source | AC adapter included | | Material | Aluminum | | Dimensions | 1.7 x 17 x 9.8" / 4.4 x 43 x 25 cm | | Weight | 99.7 oz / 2825 g | | | | Package Weight | 9.95 lb | | Box Dimensions (LxWxH) | 22.8 x 16.3 x 5.6" |
