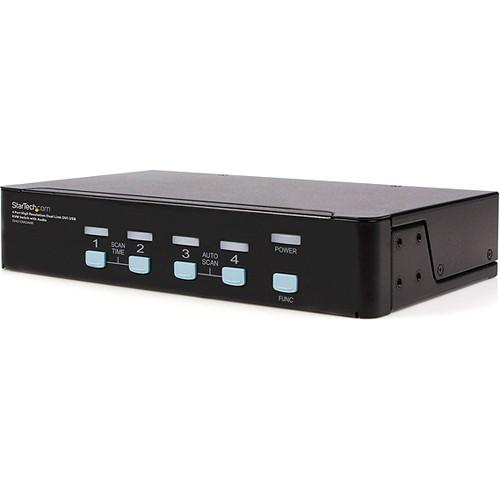

Product description Multi-Monitors: Maximizing Multitasking Read More crequuybyvctayetfces The black 4-Port High Resolution USB DVI Dual Link KVM Switch with Audio from StarTech provides simple, yet comprehensive KVM control of up to 4 directly connected computers with dual link DVI output and USB keyboard and mouse connections. Audio switching capability and support for high resolution dual link DVI applications up to 2560 x 1600 @ 60 Hz (up to 3840 x 2400 at lower refresh rates) make this KVM a superior switching solution that integrates perfectly into multimedia environments. The switch is compatible with all USB supported operating systems and requires no software or drivers to install. It features a built-in USB 2.0 hub that allows you to share up to 3 high-speed USB devices between computers. - All metal chassis for long-term durability
- Supports dual link DVI resolutions of up to 2560 x 1600 @ 60 Hz
- Higher resolutions of up to 3840 x 2400 supported at lower refresh rates
- Integrated USB 2.0 hub allows you to share up to 3 high-speed USB devices between computers
- Compatible with all USB supported operating systems

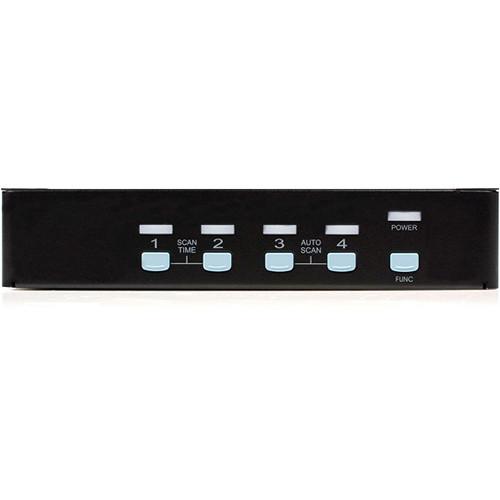

- Front panel push button computer selection
Advantage - Dual link DVI interface supports higher resolution applications, allowing you to take full advantage of your larger high resolution monitor's workspace
Applications - Ideal for switching between desktops, workstations and servers requiring ultra-high resolution displays
- Sharing computers and USB devices in the home/SOHO/multimedia environment
- Switching USB peripherals between connected PCs
- Designed for large and high resolution displays such as Multimedia Display, Apple Cinema Displays, Stock Trading Setups and Medical Displays

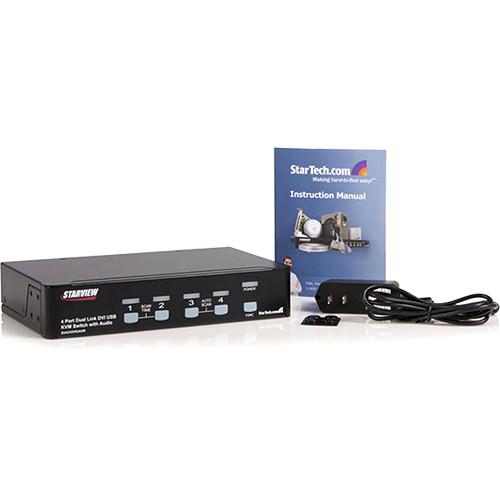

UPC: 065030831369 In the Box StarTech 4-Port High Resolution USB DVI Dual Link KVM Switch with Audio (Black) Rubber Foot Pad Power Adapter 3-Year Warranty Brochure PDF 202.9kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port High Resolution USB DVI Dual Link KVM Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SV431DVIUAHR Specs | Hardware | Audio: Yes
KVM Ports: 4
PC Interface: USB
PC Video Type: DVI

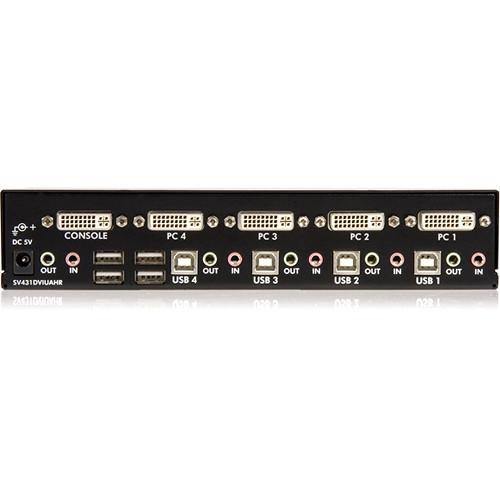

Rack-Mountable: Optional | | Connectors | Console Interfaces:
1 x DVI-I (29-pin) female
2 x 0.14" (3.5 mm) mini-jack (3 position) female
2 x USB A (4-pin) female
Host Connectors
4 x DVI-I (29-pin) female
4 x USB B (4-pin) female
8 x 0.14" (3.5 mm) mini-jack (3 position) female
Other Interfaces:
2 x USB A (4-pin) female | | Performance | MTBF: 64, 000 hours
DVI Support: Dual link
Maximum Digital Resolutions: 2560 x 1600 @ 60 Hz
Wide Screen Supported: Yes
Maximum Number of Users: 1
Port Selection Support: Push button | | Power | Power Adapter Included: Yes
Input Voltage: 110 ~ 240 AC
Input Current: 0.4 A
Output Voltage: 5 DC
Output Current: 2 A
Center Tip Polarity: Positive
Plug Type: M | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 ~ 80% RH | | | | Certifications | CE, FCC, RoHS | | Enclosure Type | Steel | | Dimensions (WxHxD) | 8.7 x 1.7 x 5.1" (220 x 44 x 130 mm) | | Weight | 61.8 oz (1750 g) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 16.142 x 8.268 x 3.543" | Note: Resolutions exceeding 2560 x 1600 can be obtained by using a lower refresh rate. Example 3840 x 2400 @ 30 Hz
