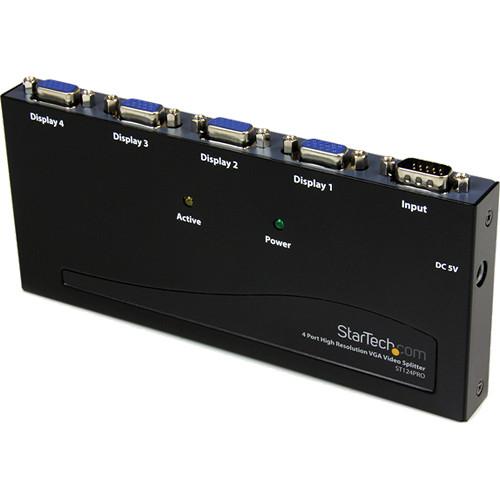

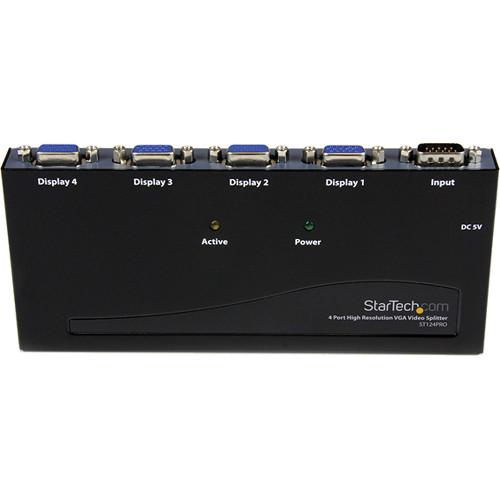

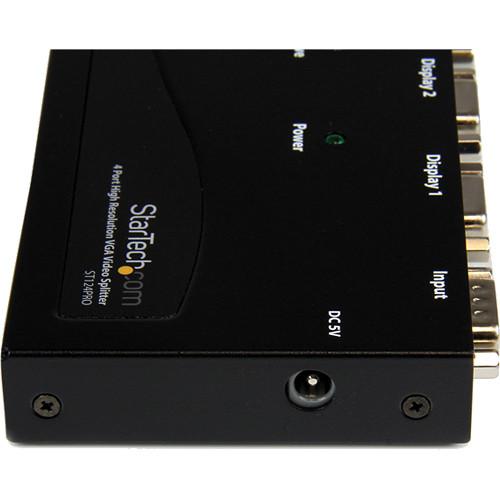

Product description The black 4-Port High Resolution VGA Video Splitter from StarTech splits a VGA video source signal to up to four monitors or projectors simultaneously. It thus provides a professional grade solution that is perfect for presentations, classrooms, tradeshows or in-store displays, where there is need for the highest quality video on multiple monitors. The splitter supports monitors with up to 350MHz of video bandwidth and displays resolution of up to 2048 x 1536 @ 80Hz. It also features an integrated booster circuit that allows the video signal to be extended up to 210' (64m), enabling you to place your displays in the most convenient location based on your application. - The VGA Video Splitter allows one VGA video source to simultaneously display on 4 different monitors
- Supports resolution of up to 2048 x 1536 @ 80 Hz
- High video bandwidth of 350 MHz
- Daisy chainable for almost unlimited expansion
- It uses standard monitor extension cables
- The VGA Video Splitter is DDC compatible
Advantages - An integrated signal amplifier boosts your connection range to 210' (64m)
- High quality construction and high resolution support maintains signal strength for crisp and sharp imaging
- Multiple screens let you broadcast your message to a large audience with greater impact
Applications - Create engaging multimedia presentations for demonstration in lecture halls and classrooms
- Display travel schedules and alerts in airports, bus terminals and train stations
- Create eye-catching displays in trade-shows and auditoriums
- Use for in-store product merchandising in retail environments to give your advertisements greater visibility
- Get your message across multiple displays for trade-shows or information booths / kiosks
- Quick and easy solution to split a video signal in an auditorium or house of worship

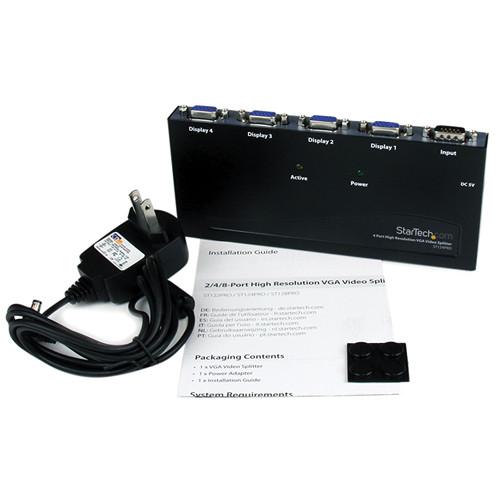

UPC: 065030783101 In the Box StarTech 4-Port High Resolution VGA Video Splitter (Black) 4 x Rubber Feet Power Adapter 2-Year Warranty Brochure PDF 138.6kbeczaeddqvvtwrcdzxrcsdw More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port High Resolution VGA Video Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST124PRO Specs | | | Ports | 4 | | Maximum Cable Length | 210' (64 m) | | Regulatory Approvals | FCC part-15 class-A, CE mark | | Industry Standards | DDC compatible All other monitors must be able to support the highest video resolution of the DDC-type monitor connected to video-out 1. | | | | Connector Type | 1 x VGA (15-pin, high-density D-sub) male
4 x VGA (15-pin, high-density D-sub) female | | | | Maximum Analog Resolutions | 2048 x 1536 @ 80 Hz | | Bandwidth | 350 MHz | | | | Power Adapter | Yes (included) | | Input Voltage | 5 VDC | | Input Current | 0.2 A | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Humidity | 0~80% RH (non-condensing) | | Certifications | CE, FCC and RoHS | | | | Dimensions (L x W x H) | 7.2 x 3.1 x 0.8" (182.8 x 78.7 x 20.3 mm) | | Weight | 2.39 lb (1.08 kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.4 x 7.3 x 3.7" | Note: Male to female VGA extension cable required (MXT101HQ).
