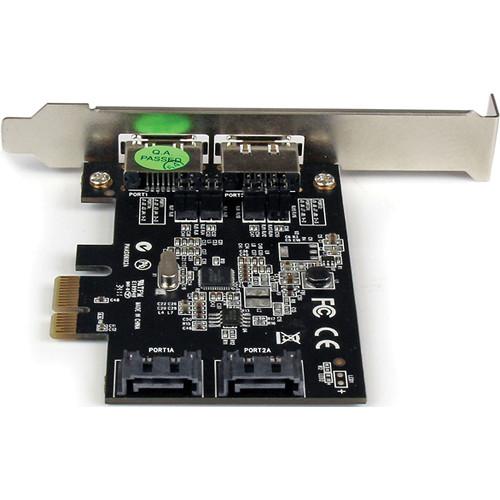

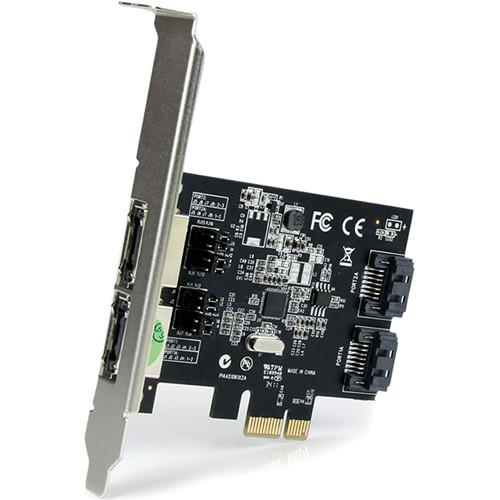

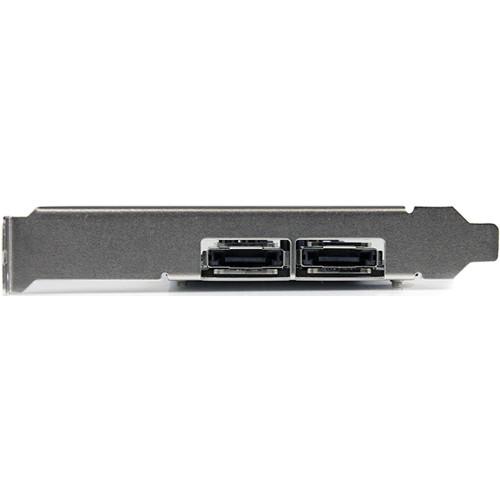

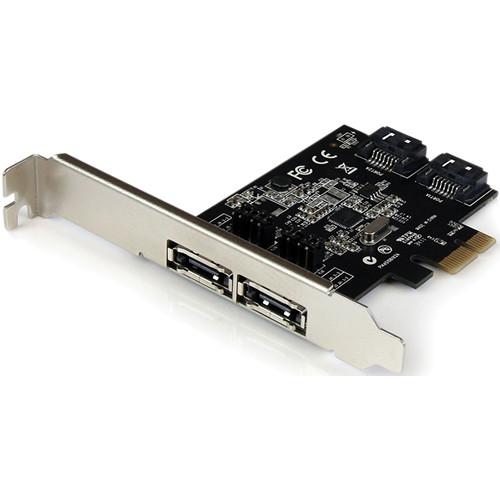

Product description The 4-Port (2 Internal/2 External) PCIe SATA 6 Gb/s Controller Card from StarTech adds 2 internal or external SATA ports to your computer through a single PCIe (x1) card slot. The card features on-board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as required. The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary. The card is fully compliant with the SATA revision 3.0 specification (up to 6 Gb/s of data bandwidth), enabling you to utilize the speeds of high-performance hard drives and solid state drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray). - Two internal/external switchable SATA ports
- Features two SATA channels that can be independently switched between the internal or external (eSATA) ports as needed
- Compliant with SATA revision 3.0, which can support up to 6 Gb/s of bandwidth
- Supports SATA-based optical drives (CD/DVD/BD)
- Offers SATA III connectivity (6 Gb/s) while maintaining backwards compatibility with SATA I (1.5 Gb/s) and II (3 Gb/s) device connections, which helps eliminate the expense of having to upgrade drives
- Includes both a full and low-profile/half-height bracket for installation into any size of desktop computer
- Uses existing SATA I/II cabling
- Supports Native Command Queuing (NCQ) and ATA/ATAPI commands
- Port multiplier FIS-based and Command-based switching supported
- Compliant with PCIe 2.0 standards
Applications - Upgrade an older PCIe-based system with SATA 6 Gb/s connectivity to better utilize faster SATA drives
- Add more internal SATA ports to a computer system for connecting additional storage drives and/or optical drives
- Add internal and/or external SATA III ports to a computer through a single PCIe slot, with the option to change the available connections to external/internal ports, as needed based on updated system requirements or applications

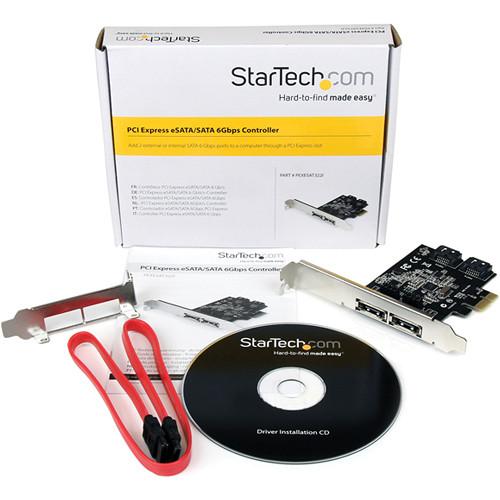

UPC: 065030848428 In the Box StarTech 4-Port (2 Internal/2 External) PCIe SATA 6 Gb/s Controller Card SATA Cable Low-Profile Bracket Driver CD 2-Year Limited Warranty Guides & Manuals dedysxfyvruw More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port PCIe SATA 6 Gb s Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 4-Port PCIe SATA 6 Gb s Controller Card can be downloaded in PDF format at the link stated below.
Technical parametersStarTech PEXESAT322I Specs | | | Bus Type | PCIe | | Card Type | Standard profile (LP bracket included) | | Chipset ID | ASMEDIA ASM1061 | | Interface | eSATA and SATA | | Port Style | Integrated on card | | Ports | 2 | | | | Connector Type | 1 x PCIe x1 male | | External Ports | 2 x eSATA (7-pin; Data) plug | | Internal Ports | 2 x SATA (7-pin; Data) plug | | | | LBA Support | 48-bit | | Port Multiplier | Yes | | Type and Rate | SATA III (6 Gb/s) | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Windows Server 2012, 2008 R2, 2003 (32/64-bit) | | | | Humidity | 5 ~ 85% RH | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Certifications | CE, FCC, and RoHS compliant | | | | Dimensions (L x W x H) | 4.8 x 3.6 x 0.8" (121.9 x 91.4 x 20.3 mm) | | Weight | 1.6 oz (45.3 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.8 x 5.6 x 1.0" |
