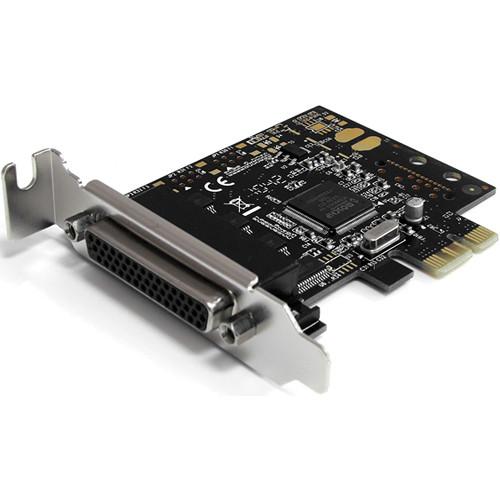

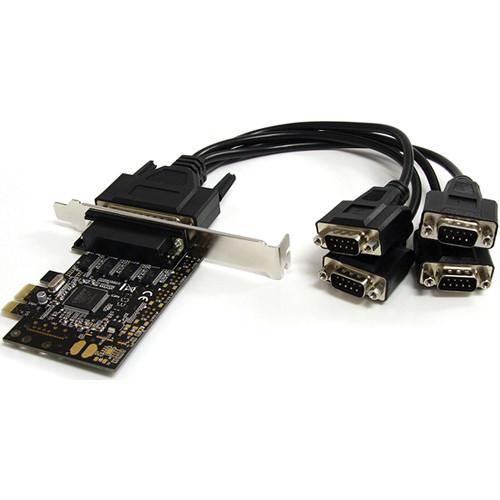

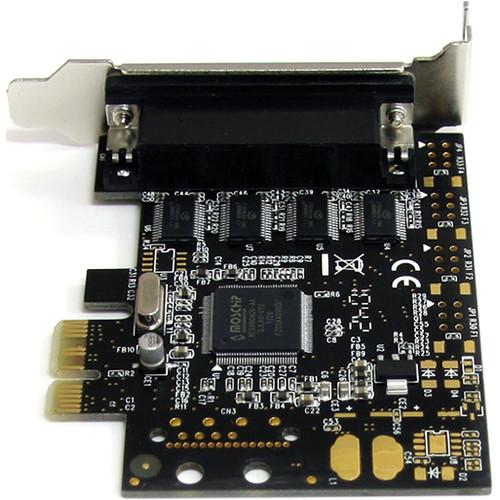

Product description The 4-Port RS-232 PCIe Serial Card with Breakout Cable from StarTech lets you add 4 RS-232 serial ports using a single PCIe , low profile expansion slot, with an included 1-to-4 cable. The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards. This card is a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers. The 4-port serial adapter includes both full-profile and low-profile/half-height brackets for compatibility with standard and small form factor computers. It is compatible with a broad range of operating systems, including Windows, Linux, and Mac OS. - Native single-chip, single lane PCIe design ensures optimal system performance (up to 48% less CPU load)

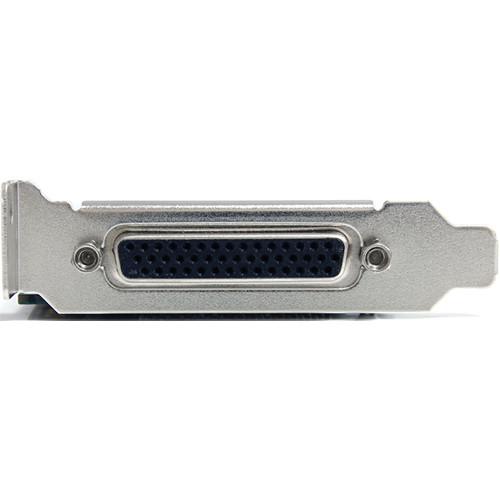

- Includes both standard and low-profile/half-height brackets, which makes this card suitable for any application, including small form factor embedded applications

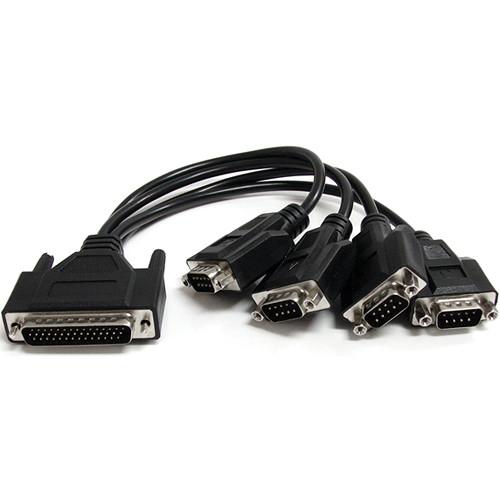

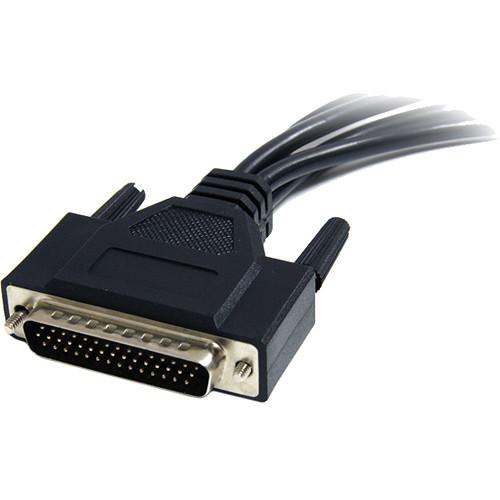

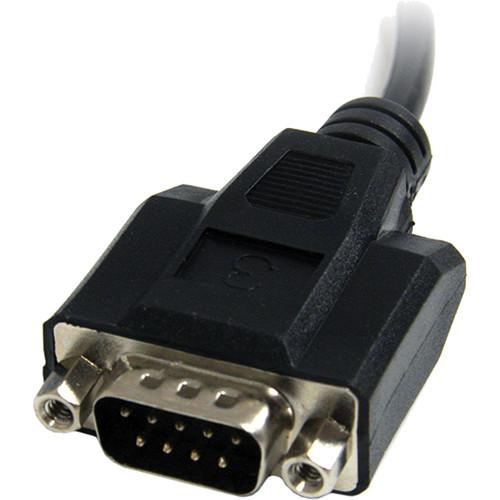

- Breakout cable design; only one expansion slot is needed to add 4 additional serial ports to any system

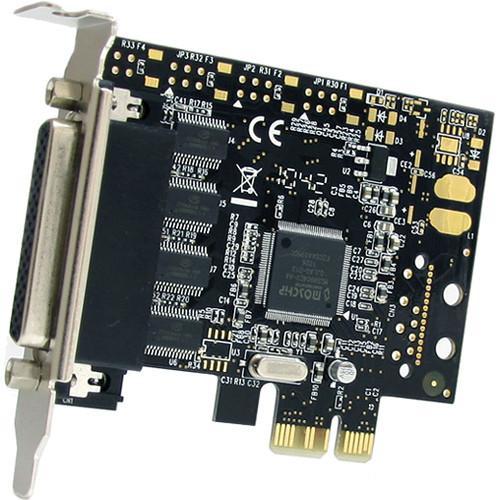

- On-chip 256-byte depth FIFO in transmit/receive path of each port
- Single-lane (x1) PCIe with throughput up to 2.5 Gb/s
- Supports hardware and software flow control
- Supports re-map function for legacy ports 1
Please Note: Supports only Windows, Linux, & Mac OS. close - Supports data transfer rates up to 250 Kb/s on each port
- Compliant with PCIe base specification revision 1.0a
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Applications:
- Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
Connect specialized parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip drives, and memory card readers
Environmental Control (lighting, temperature, clocks)
Entertainment (video lottery terminals, slot machines, gaming systems)
Healthcare (patient monitoring equipment, nurses' stations, modems) Security (UPS control, access key panels, video cameras, card readers, modems)
Hospitality/restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
Consumer (modems, PDAs, digital cameras, printers)
ISDN networking UPC: 065030842556 In the Box StarTech 4-Port RS-232 PCIe Serial Card with Breakout Cable Breakout Cable Full-Profile Bracket Driver CD Limited Lifetime Warranty Guides & Manuals fsrtwqyzftwdaqrc More from Manufacturer fsrtwqyzftwdaqrc Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port RS-232 PCIe Serial Card with Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 4-Port RS-232 PCIe Serial Card with Breakout Cable can be downloaded in PDF format at the link stated below.
Technical parametersStarTech PEX4S553B Specs | | | Card Type | Low profile | | Interface | Serial | | Ports | 4 | | Bus Type | PCIe | | Port Style | Dongle (included) | | Chipset ID | ASIX/MosChip - MCS9904CV-AA | | | | Connector Type | 1 x PCIe x1 male | | External Ports | 4 x DB-9 (9-pin; D-Sub) male | | | | Max Baud Rate | 230.4 Kb/s | | Serial Protocol | RS-232 | | Data Bits | 5, 6, 7, 8 | | FIFO | 256 bytes | | Parity | Even, Odd, None, Space, and Mark | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
Windows Server 2012, 2008 R2, 2003 (32/64-bit)
Mac OS 10.4 and up (Tested up to 10.9)
Linux | | | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Humidity | 5~85% RH | | | | Compliance | CE and RoHS compliant | | Microsoft WHQL Certified | Yes | | | | Dimensions (L x W x H) | 3.2 x 0.5 x 2.7" (81.2 x 12.7 x 68.5 mm) | | Weight | 1.8 oz (51.0 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 8.4 x 5.7 x 1.6" |
