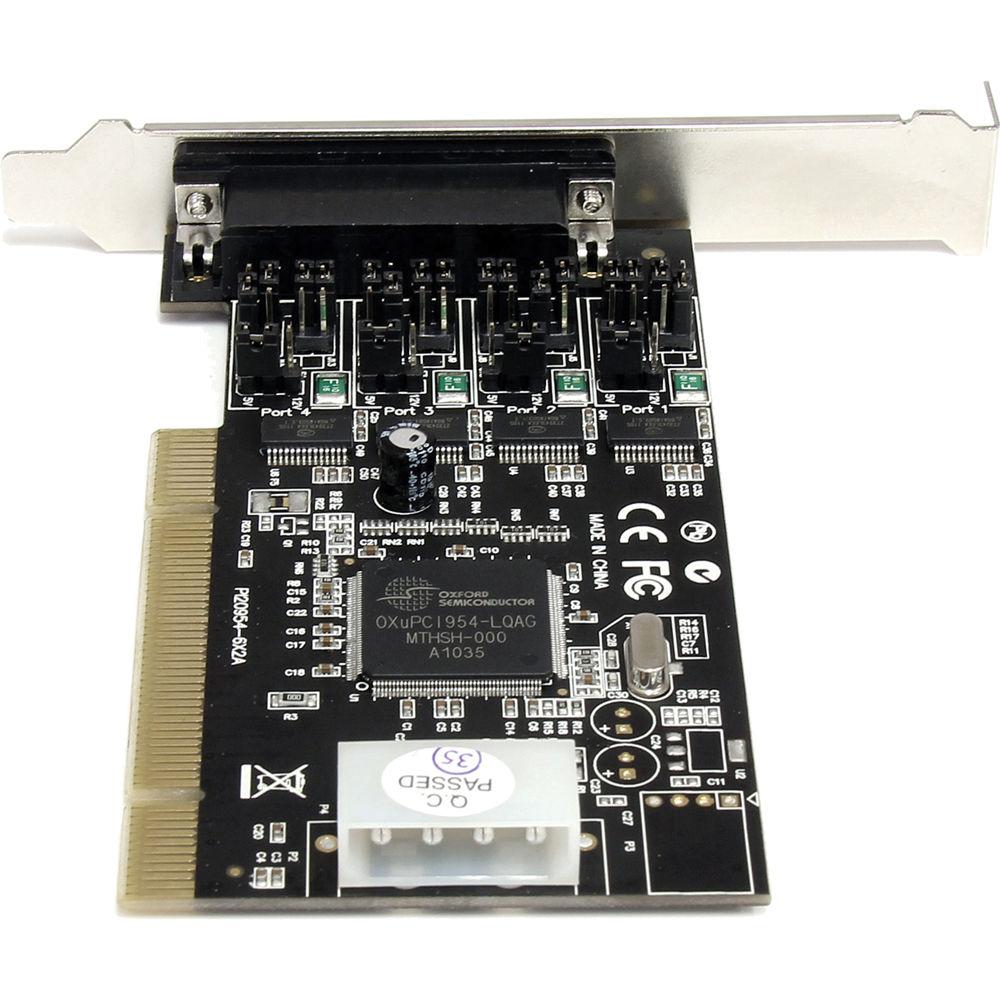

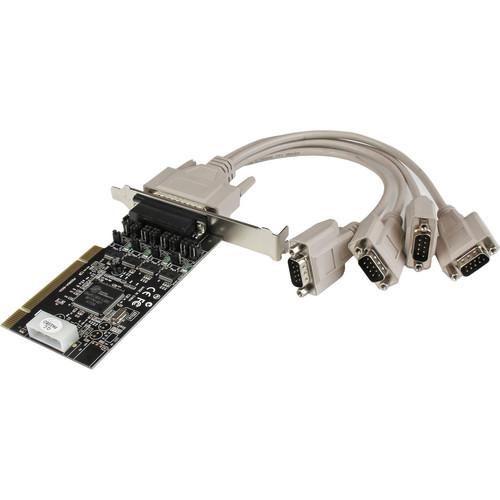

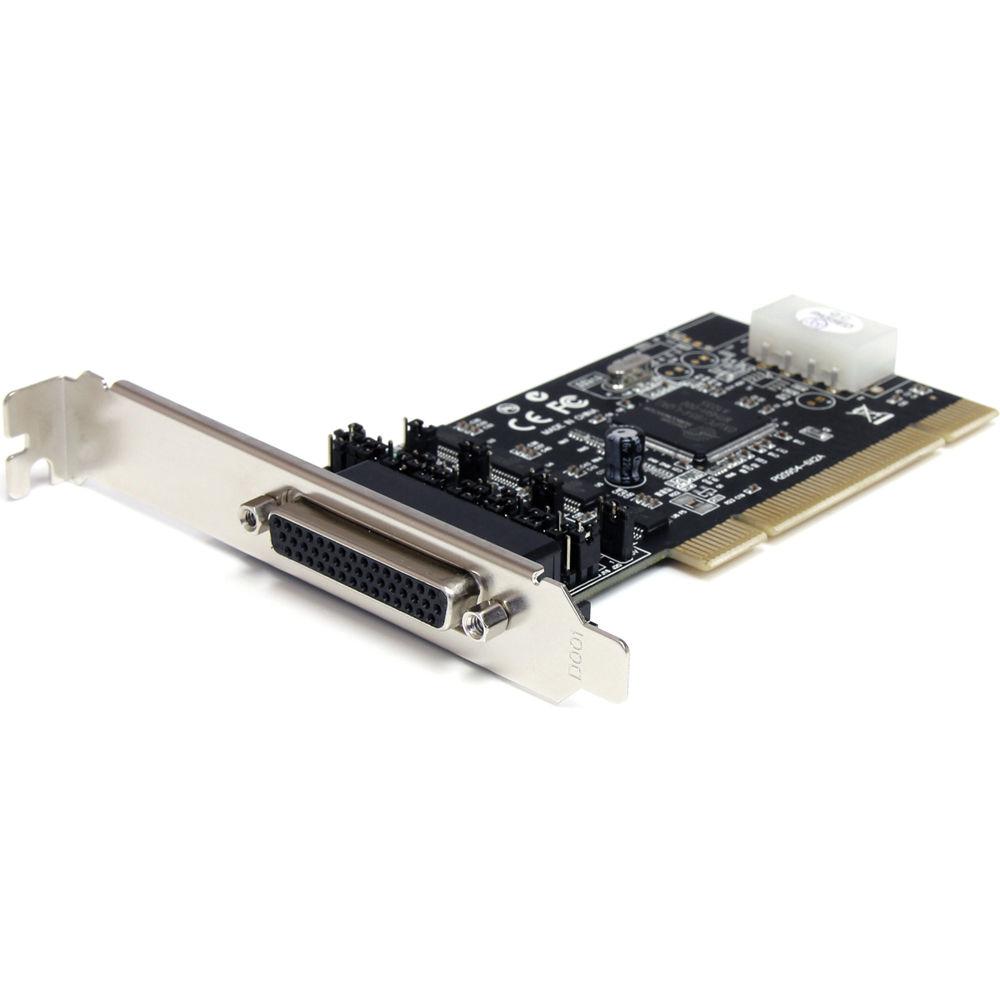

Product description The black 4-Port RS232 PCI Serial Card Adapter with Power Output from StarTech turns a PCI slot into four RS232 (DB9) serial connections and enables compatible devices to draw power from the serial ports. Suitable for many RS232-powered serial applications, this PCI serial card offers a selectable 5V or 12V power option, capable of power output using pin 1, 4, 8 or 9, which enables you to configure the card to suit the requirements of your powered RS232 devices. A flexible solution for adding serial ports to full-sized or small form factor systems, the PCI serial card includes both low- and full-profile brackets. It also includes a breakout cable which helps to avoid cluttered connections. - Selectable 5/12V power output on one of four different pins (1/4/8/9) provides the flexibility needed to connect nearly any powered serial device

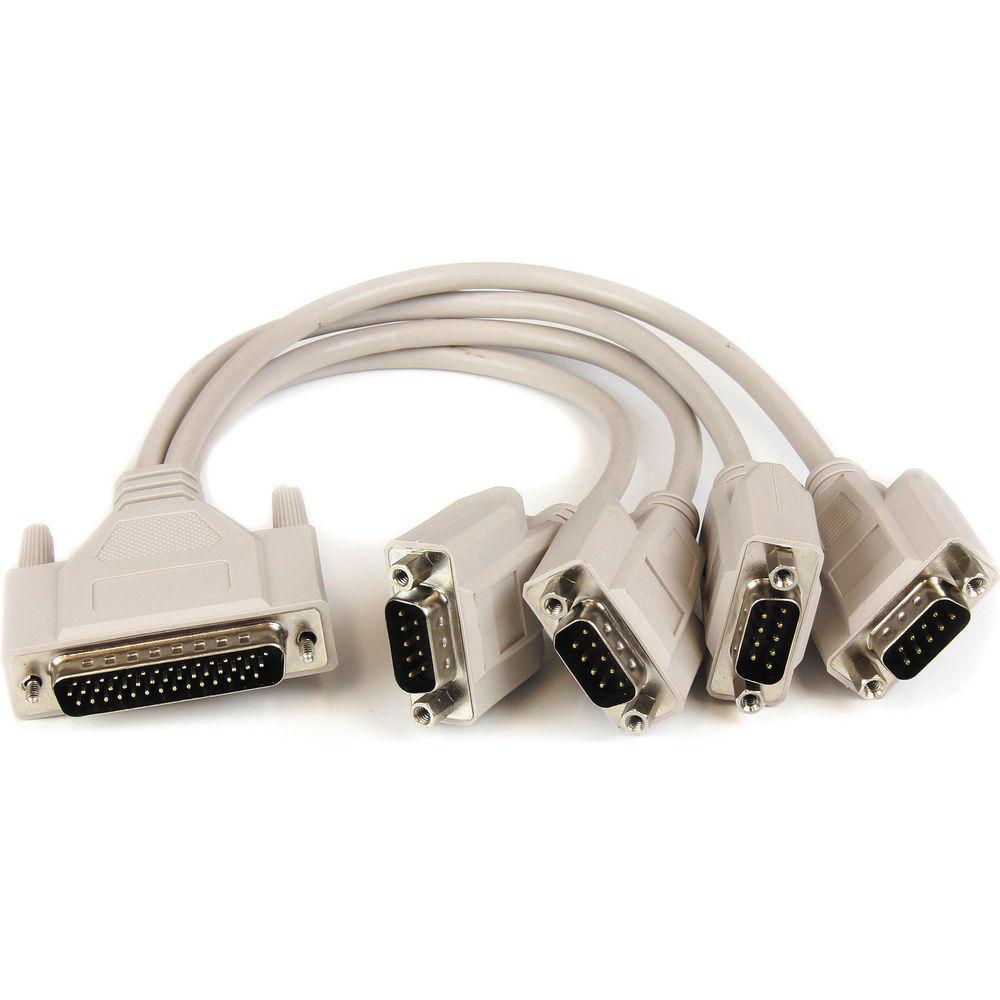

- The included breakout cable is a cost-effective, all-in-one solution that allows the addition of multiple RS232 serial ports through a single PCI slot

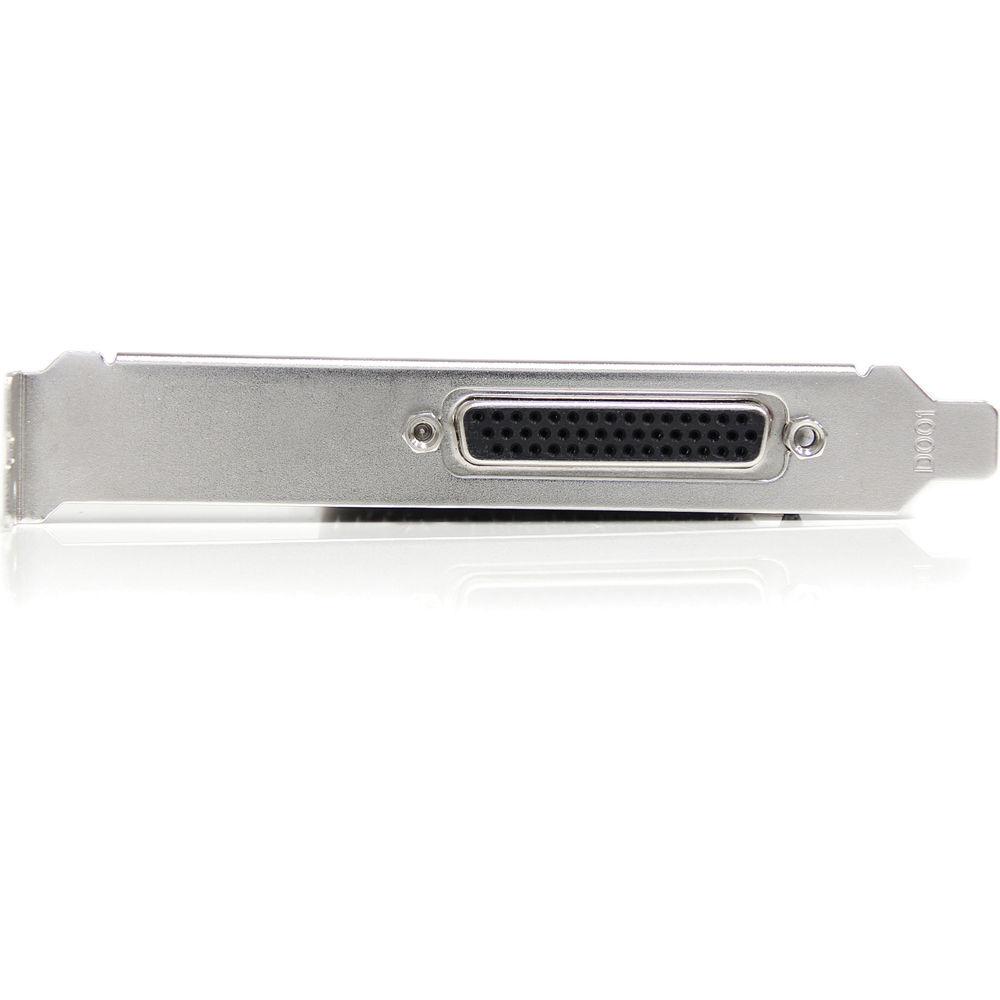

- Includes both low-profile/half-height and full-profile brackets to ensure fitment into a broad range of system form factors
- Four high-speed RS232 serial ports with data transfer rates up to 460 Kbps
- Universal PCI card supports installation into 3.3 or 5V PCI slots
- Compliant with PCI specifications revision 3.0
- High-performance Oxford 16C950 UART
- 128-byte deep FIFO per transmitter and receiver
- ±15KV ESD protection on all signal pins
Applications - Monitor and control industrial machines on an assembly line or in a production environment
- POS retail applications in grocery stores and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales and elevated displays on poles
- Bank teller workstations in either full-profile or low-profile versions to control serial devices such as cash drawers, card readers/card swipes, printers, keypads/PIN pads and pen pads
- Self-service automated machines and kiosks to control serial devices such as scales, touch screens, magnetic card readers, barcode scanners, receipt printers and label printers
- Used to control multiple surveillance/security cameras in a parking structure, office building and more
- Standard automated teller machines to control keypads, receipt printer, card readers/card swipes, touch screen LCDs, camera control and more

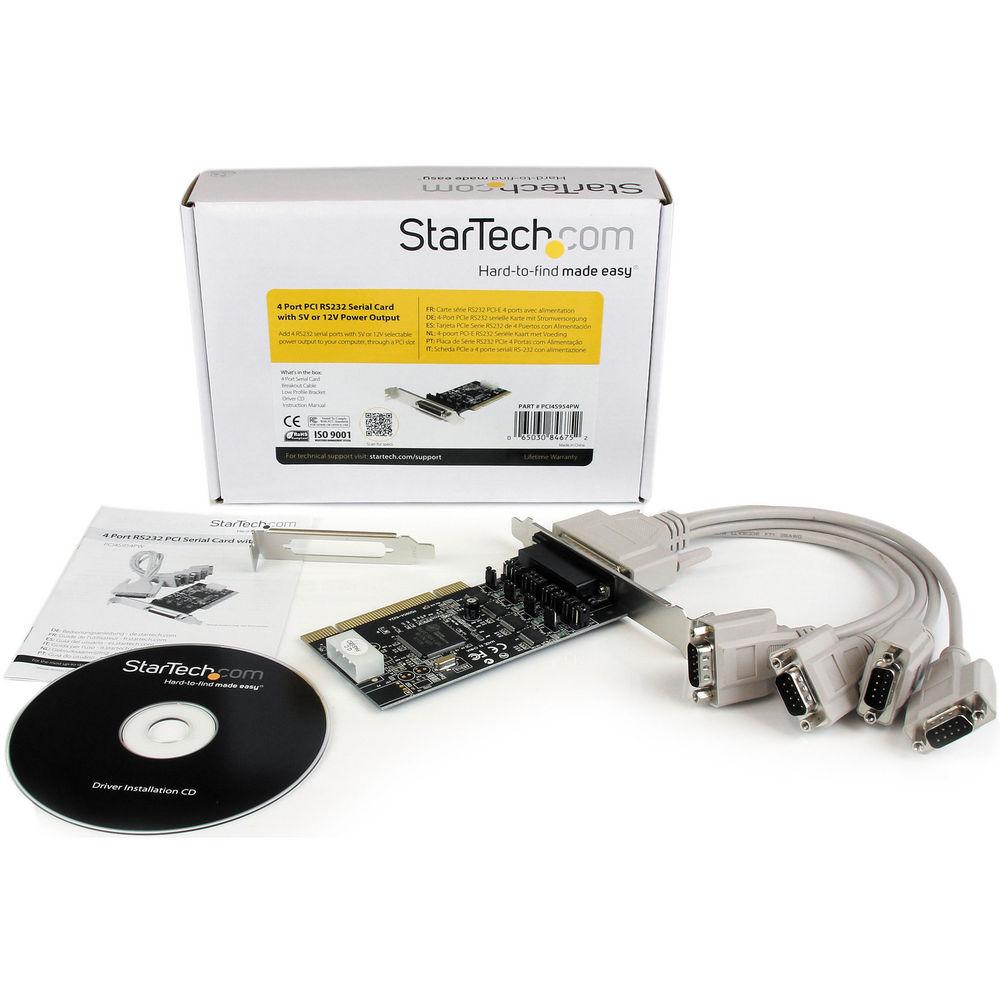

UPC: 065030846752 In the Box StarTech 4-Port RS232 PCI Serial Card Adapter with Power Output (Black) Breakout Cable Low-Profile Bracket Full-Profile Bracket Driver CD Limited Lifetime Warranty Brochure PDF 141.5kbaeyfqrqeatavtbazdtevzxtsyqyerbfc More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port RS232 PCI Serial Card Adapter with Power Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech PCI4S954PW Specs | | | Ports | 4 | | Interface | Serial | | Bus Type | PCI/PCI-X (5/3.3 V) | | Card Type | Standard profile (low-profile bracket included) | | Port Style | Dongle (included) | | Industry Standards | PCI 3.0 | | Chipset ID | PLX/Oxford - OXuPCI954 | | | | Connector Type | 1 x PCI/PCI-X (universal 3.3 and 5 V; 32-bit) male | | Internal Ports | 1 x LP4 (4-pin; Molex large drive power) female | | External Ports | 4 x DB-9 (9-pin; D-Sub) male | | | | Maximum Data Transfer Rate | 460.8 Kbps | | Serial Protocol | RS-232 | | Data Bits | 5, 6, 7, 8, 9 | | FIFO Buffer | 128 bytes | | Flow Control | Automated in-band (Xon/Xoff)
Automated out-of-band (CTS#/RTS# and/or DSR#/DTR#) | | Stop Bits | 1, 1.5, 2 | | Surge Protection | ±15KV ESD on all signal pins | | | | OS Compatibility | Windows 8 (32/64-bit)/7 (32/64-bit)/Vista (32/64-bit)/XP (32/64-bit), CE 5.0
Windows Server 2008 R2/2003 (32/64-bit)
Linux 2.4.x/2.6.x | | Microsoft WHQL Certified | Yes | | | | Humidity | 5 ~ 85% RH | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 4 to 140°F (-20 to 60°C) | | | | Certifications | CE, FCC, RoHS | | Dimensions (LxWxH) | 5 x 0.6 x 2.5" (127 x 15 x 64 mm) | | Weight | 2.4 oz (68 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 8.4 x 6.2 x 2.2" |
