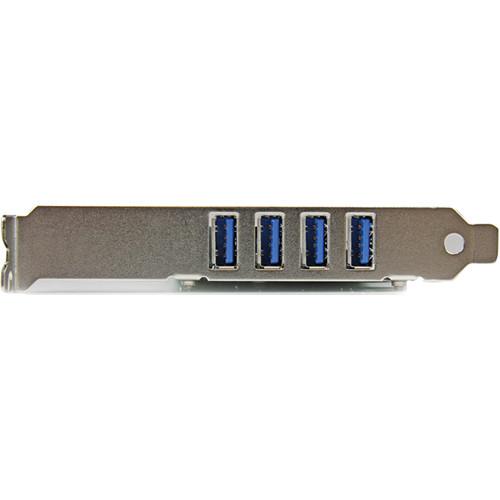

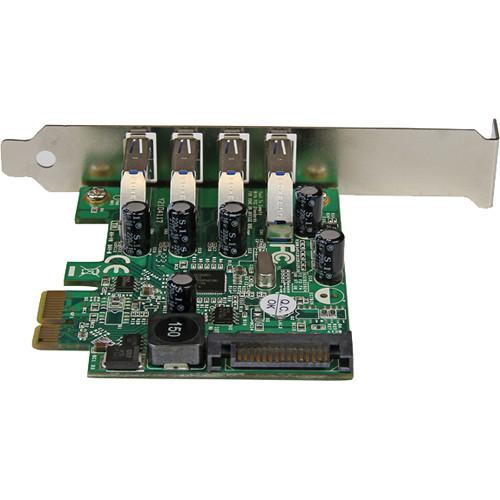

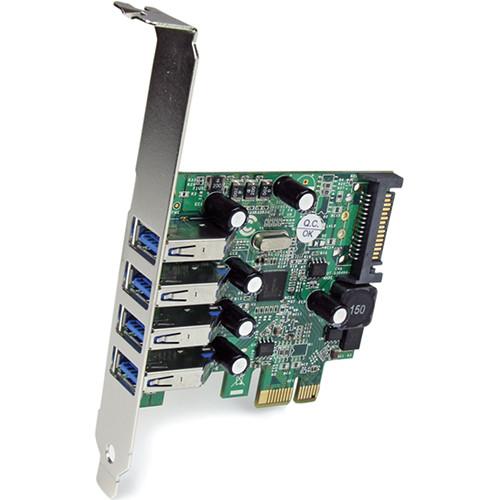

Product description The 4-Port SuperSpeed USB 3.0 PCIe Card with SATA Power Connector & UASP from StarTech adds 4 external USB 3.0 ports to any PCIe-enabled computer system with support for data rates up to 5 Gb/s. The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low-profile computer system using the included low-profile bracket. Additionally, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer's power supply. Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure. Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds with less wait time on data transfers. UASP is supported in Windows 8, Server 2012, and Linux kernel 2.6.3 or later. Note: UASP require a compatible operating system. - The USB 3.0 PCIe card features 4 external USB 3.0 ports using a space-saving stacked layout
- Provides quick file transfers and performs up to 70% faster than traditional USB 3.0 when used with a UASP-supported enclosure
- Power high-powered USB devices as necessary, with the built-in optional SATA power connector
- UASP support for more efficient data transfer
- Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.95 specifications
- Optionally provides up to 900mA per USB port
- Backwards compatible with USB 2.0 and USB 1.0/1.1 devices
- Compliant with PCIe 2.0 specifications
- Includes a low-profile/half-height installation bracket
Applications - Upgrade an older PCIe-based system with USB 3.0 connectivity to fully utilize USB 3.0 devices
- Expand a system's USB capabilities by adding four additional external USB ports for connecting additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, and more

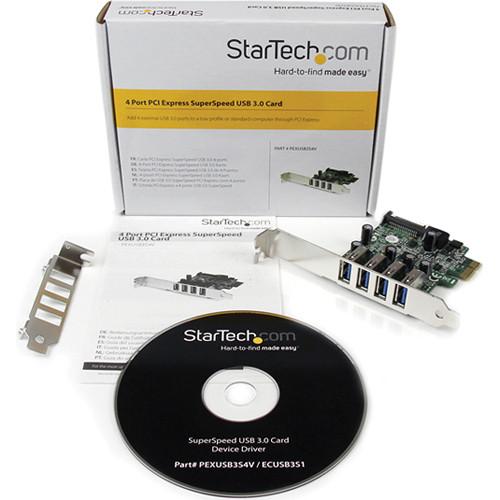

UPC: 065030848961 In the Box StarTech 4-Port SuperSpeed USB 3.0 PCIe Card with SATA Power Connector & UASP Low-Profile Bracket Driver CD 2-Year Limited Warranty Brochure PDF 217.6kbtuscuwudvrzzcvzryyuxwuyraxdsbyuw More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port SuperSpeed USB 3.0 PCIe Card with SATA Power Connector & UASP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech PEXUSB3S4V Specs | | | Bus Type | PCIe | | Card Type | Standard profile | | Chipset ID | NEC uPD720201 | | Interface | USB 3.0 | | Port Style | Integrated on card | | Ports | 4 | | | | Connector Type | 1 x PCIe x1 male | | External Ports | 4 x USB 3.0 A (9-pin; SuperSpeed) female | | Internal Ports | 1 x SATA power (15-pin) plug | | | | Type and Rate | USB 3.0 - 5 Gb/s | | UASP Support | Yes | | | | OS Compatibility | Windows XP (32/64-bit)/Server 2003 (32/64-bit)/Server 2008 R2/Vista (32/64-bit)/7 (32/64-bit)/8 (32/64-bit) | | | | Relative Humidity | 20 ~ 80% | | Operating Temperature | 41 to 122°F (5 to 50°C) | | Storage Temperature | -13 to 158°F (-25 to 70°C) | | Certifications | CE, FCC, and RoHS compliant | | | | System and Cable Requirements | Available PCIe expansion slot | | | | Dimensions (L x W x H) | 3.0 x 0.7 x 2.7" (76.2 x 17.7 x 68.5 mm) | | Weight | 1.6 oz (45.3 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.4 x 5.1 x 0.9" | Note: The maximum throughput of this card is limited by the bus interface. If used with PCIe Gen 1.0 enabled computers, the max throughput is 2.5 Gb/s. If used with PCIe Gen 2.0 enabled computers, the max throughput is 5 Gb/s.
