User Manual for StarTech 4-Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub Click to enlarge the picture
Contents of the user manual for the StarTech 4-Port Triple Monitor DVI USB
- Product category: KVM Switches StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Switches
 |
User manual for the StarTech 4-Port Triple Monitor DVI USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

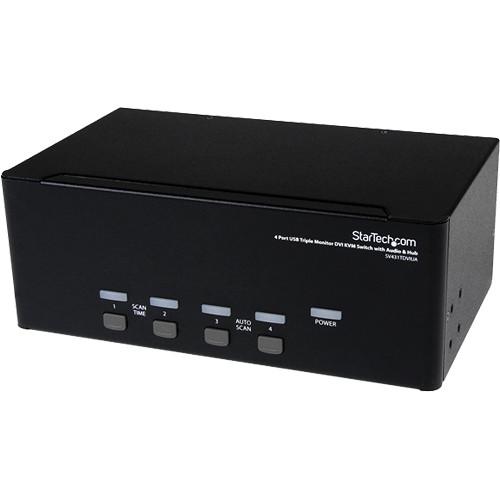

Product description Multi-Monitors: Maximizing Multitasking Read More aeaszqrfrt The 4-Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub from StarTech allows four PCs (each with three DVI video outputs) to share monitors, one microphone and set of speakers, one keyboard and one mouse as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer or webcam. The switch enables you to switch back and forth between four multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions of up to 1920 x 1200. It also features an integrated USB port hub which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs. Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended, wherever possible, to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact our technical support team for assistance identifying your source. - Supports high definition DVI resolutions on three monitors, each up to 1920 x 1200
- Switch USB and audio devices independently

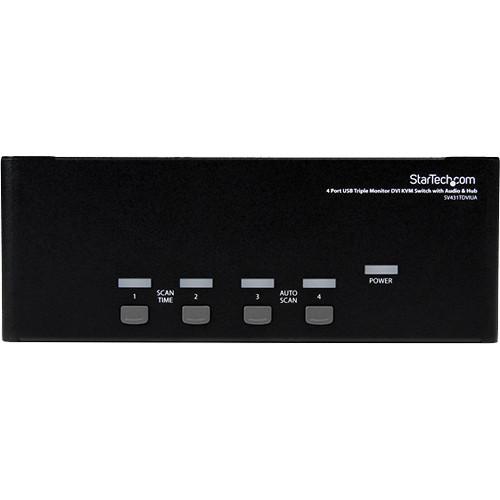

- Supports front panel push button and hot key functions for computer selection
- OS independent; no software or drivers required
- All metal chassis for long-term durability
- Hub port supports high-speed USB 2.0 devices
Applications - Switch three displays, mouse, keyboard, speakers, microphone and one USB peripheral between four PCs
- Graphic design and multimedia production applications
- Great for CAD/CAM operators using multiple monitor systems
- Financial/banking and trading workstations with multiple monitors
- High resolution medical imaging with multiple displays
Advantage - By enabling control of four triple display computer systems using a single set of peripherals, the switch helps save cost and work space
- With support for high definition resolutions (1920 x 1200) on each of the three connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
- Integrated USB 2.0 hub and microphone/audio switching enables you to have full multimedia control of two computers, while sharing USB peripherals

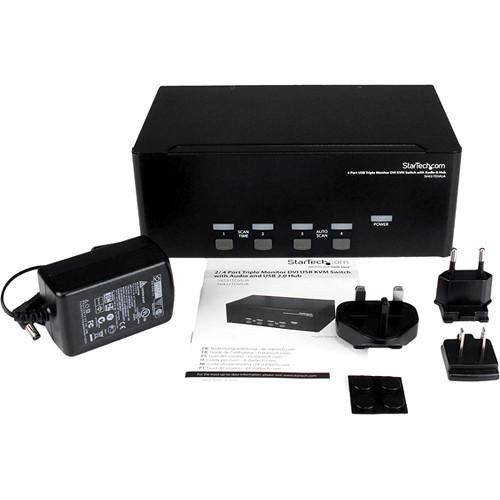

In the Box StarTech 4-Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub 4 x Rubber Foot Pads Universal Power Adapter (NA/UK/EU) 3-Year Warranty Brochure PDF 203.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SV431TDVIUA Specs | Hardware | Audio: Yes
KVM Ports: 4
PC Interface: USB
PC Video Type: DVI
Multi-Monitor: Yes

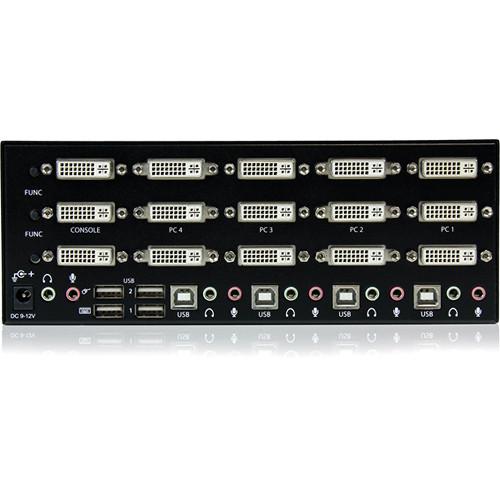

Rack-Mountable: Yes | | Connectors | Console Interfaces:
2 x 0.14" (3.5 mm) mini-jack (3 position) female
3 x DVI-I (29-pin) female
4 x USB A (4-pin) female
Host Connectors:
12 x DVI-I (29-pin) female
4 x USB B (4-pin) female
8 x 0.14" (3.5 mm) mini-jack (3 position) female | | Performance | DVI Support: Yes
Maximum Digital Resolutions: 1920 x 1200
Wide Screen Supported: Yes
Auto Scan: 3, 8, 15 and 30 seconds
Maximum Number of Users: 1
Port Selection Support: Push button and hotkeys | | LED Indicators | 4 x green - active PC
4 x orange - PC online | | Power | Power Adapter Included: Yes
Input Voltage: 110 ~ 240 VAC
Input Current: 0.8 A
Output Voltage: 12 VDC
Output Current: 1.5 A
Center Tip Polarity: Positive
Plug Type: M | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Humidity | 0 ~ 80% RH | | | | Certifications | CE, FCC, RoHS | | Color | Black | | Enclosure Type | Steel | | Dimensions (WxHxD) | 8.6 x 3.2 x 5.4" (219 x 81 x 137 mm) | | Weight | 52.8 oz (1496 g) | Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source.
