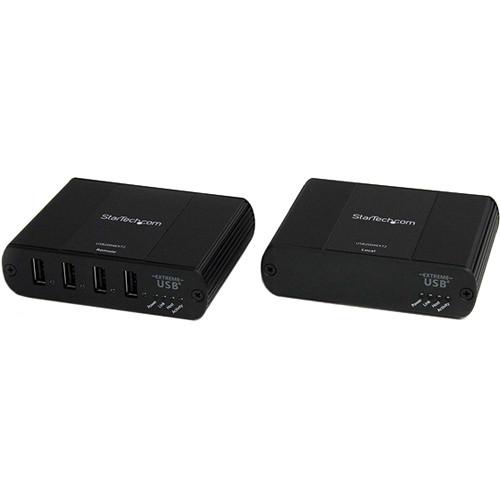

Product description The black 4-Port USB 2.0 Extender over Cat5/6 from StarTech lets you extend up to four USB 2.0 connections over distances up to 330’ over standard Cat5 or Cat6 UTP cabling. Backward compatible with USB 1.0 devices, this extender allows up to four USB devices to be placed at remote locations away from the host computer system.This extender offers data transfer rates up to 480 Mb/s and 500mA of power per port (with the use of an external power adapter at the remote end). This USB extender is a fast, easy-to-set up, and versatile USB extension solution with a sleek metal enclosure that ensures durability in virtually all types of operating environments. - General
-
- Four USB 2.0 ports at remote end over a single Cat5/6 cable
- Maximum extension distance up to 330'
- High-speed USB 2.0 compliant with data transfer rates up to 480 Mb/s
- Provides 500mA of power per port
- Electrical static discharge (ESD) protection of 8 kV contact and 16 kV air
- No drivers or software required
- Plug-and-play and hot swappable
- Includes surface mounting brackets for both units
- Applications
-
- Secured environments where the host computer must be in a secure, inaccessible location from the keyboard, mouse, camera, or other USB input devices
- Use existing in-wall Cat5/6 wiring to extend USB connections between rooms
- Reduce cable clutter and the need for mid-point USB hubs/repeaters by running a single, easy-to-install Cat5/6 cable
- Industrial control environments where the host computer must be located away from interference or contamination

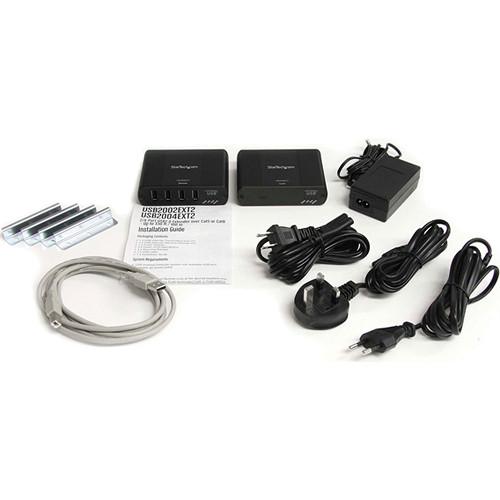

UPC: 065030841559 In the Box StarTech 4-Port USB 2.0 Extender over Cat5/6 (Black) USB 2.0 Cable 4 x Mounting Bracket 3 x Power Cord (NA/UK/EU) Power Adapter Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port USB 2.0 Extender over Cat5 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 4-Port USB 2.0 Extender over Cat5 6 can be downloaded in PDF format at the link stated below.

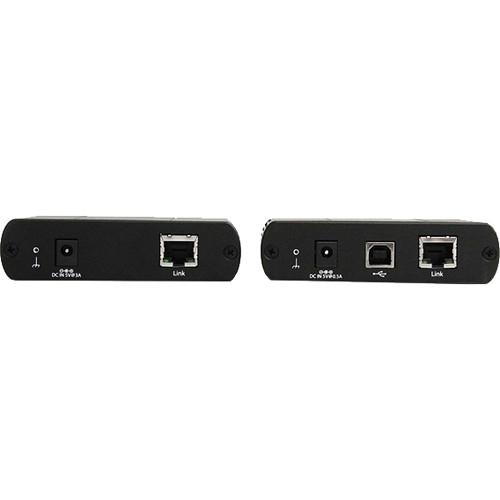

Technical parametersStarTech USB2004EXT2 Specs | | | Ports | 4 | | Cabling Type | Cat5/Cat6 UTP | | | | Connector | Local Unit:
1 x RJ-45, female
1 x USB Type-B (4-pin), female
Remote Unit:
1 x RJ-45, female
4 x USB Type-A (4-pin), female | | | | Maximum Data Transfer Rate | 480 Mb/s | | Maximum Cable Length | 328' (100 m) | | | | OS Compatibility | Windows 2000 XP (32/64) / Server 2003 (32/64) / Vista (32/64) / 7 (32/64) / Server 2008 R2 / Windows CE 6.0
Mac OS X

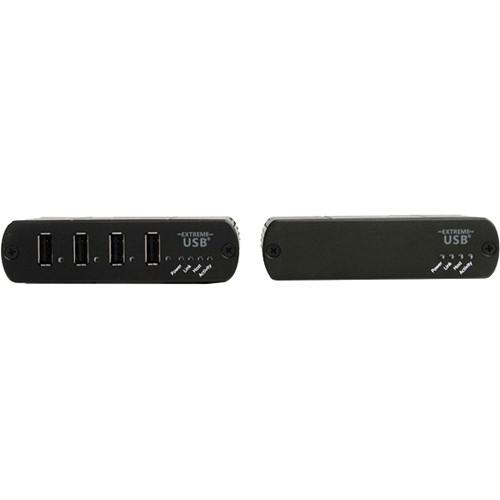

Linux | | | | LED Indicators | 1 x Activity
1 x Host connection
1 x Link
1 x Power
4 x USB link | | | | Input Voltage | 110 to 240 VAC | | Output Voltage | 5 VDC | | Output Current | 3 A | | Center Tip Polarity | Positive | | Plug Type | C | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90% RH | | | | Requirements | USB-enabled computer system with available USB port | | | | Enclosure Type | Aluminum and plastic | | Dimensions (L x W x H) | 3.9 x 3.0 x 1.0" (10.0 x 7.6 x 2.6 cm) | | Weight | 21.2 oz (600 g) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 3.0" |
