User Manual for StarTech 4-Port USB 3.0 DisplayPort KVM Switch Click to enlarge the picture
Contents of the user manual for the StarTech 4-Port USB 3.0 DisplayPort KVM
- Product category: KVM Switches StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Switches
 |
User manual for the StarTech 4-Port USB 3.0 DisplayPort KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

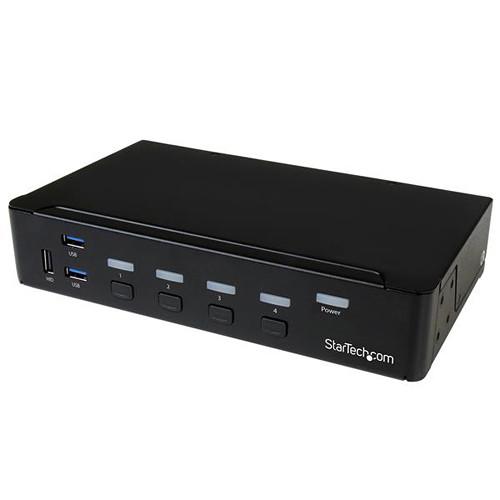

Product description Multi-Monitors: Maximizing Multitasking Read More The 4-Port USB 3.0 DisplayPort KVM Switch from StarTech lets you control four DisplayPort (DP) computers with a single monitor, keyboard, and mouse. It offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals. With support for USB 3.0, you can achieve data transfer rates up to 5 Gb/s. This interface is suitable for quickly transferring large amounts of data to external USB 3.0 drives. Offering support for up to 4K resolution, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it suitable for graphical applications that require high-resolution video support. It features auxiliary 3.5mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM suitable for professional applications such as video and sound design or editing. -
- Easily share peripheral devices using the built-in USB 3.0 hub
- Full multimedia control with separate 3.5mm auxiliary support
- No software or drivers required
- Independent HID keyboard and mouse ports
- Using the 1 RU rackmount bracket, the KVM can be rack-mounted to your server rack

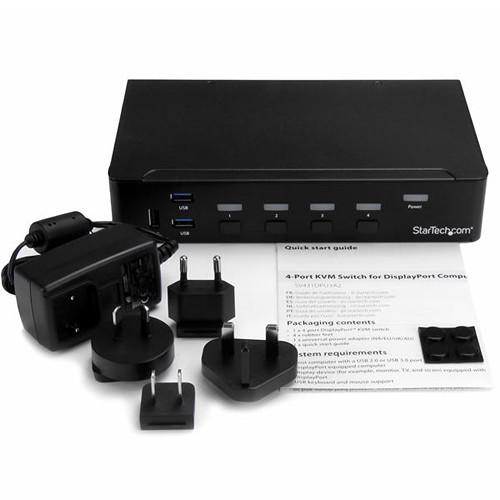

UPC: 065030863728 In the Box StarTech 4-Port USB 3.0 DisplayPort KVM Switch 4 x Rubber Feet Universal Power Adapter Limited 2-Year Warranty Brochure PDF 206.4kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port USB 3.0 DisplayPort KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SV431DPU3A2 Specs | Ports | 4 | | Maximum Digital Resolutions | 3840 x 2160 @ 30 Hz | | Supported Resolutions | 1024 x 768
1280 x 720 (720p)
1920 x 1080 (1080p)
1920 x 1200
2560 x 1440
2560 x 1600

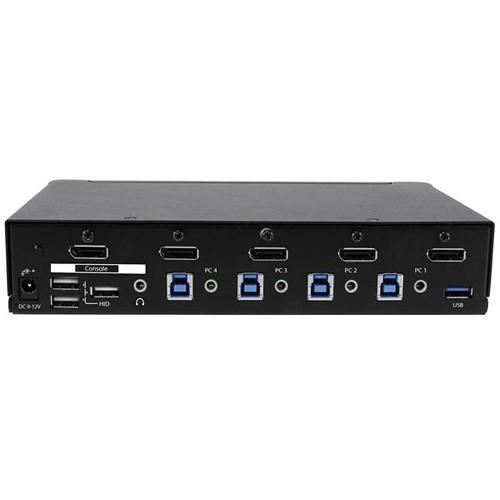

3840 x 2160 (Ultra HD 4K) | | Audio Support | 2-channel stereo supported | | Interface | USB 3.0 | | PC Video Type | DisplayPort | | Port Selection Support | Push button and hotkeys | | Hot Keys | Hot-key selection available | | Console Interface | 1 x DisplayPort (20-pin) female output
1 x 3.5 mm mini-jack (3-position) female output
4 x USB Type-A (9-pin) USB 3.0 female
3 x USB Type-A (9-pin) USB 3.0 female | | Host Connectors | 4 x DisplayPort (20-pin) female input
4 x USB Type-B (9-pin) USB 3.0 female
4 x 3.5 mm mini-jack (3-position) female input | | Indicators | 4 x Port selection/link LEDs
1 x Power LED | | Cable Length | 32.8' / 10 m | | Input Voltage | 100 to 240 AC | | Output Current | 1.5 A | | Output Voltage | 12 DC | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Humidity (Non-Condensing) | 0 to 80% RH | | Dimensions | 1.7 x 8.7 x 5.1" / 4.3 x 22.0 x 13.0 cm | | Weight | 2.3 lb / 1.1 kg | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 11.6 x 9.8 x 3.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
