User Manual for StarTech 4-Port USB to RS-232 Serial DB-9 Adapter Hub Click to enlarge the picture
Contents of the user manual for the StarTech 4-Port USB to RS-232 Serial
- Product category: Converters & Splitters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Converters & Splitters
 |
User manual for the StarTech 4-Port USB to RS-232 Serial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

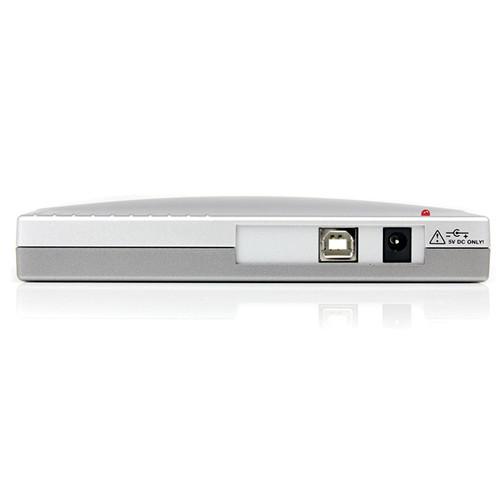

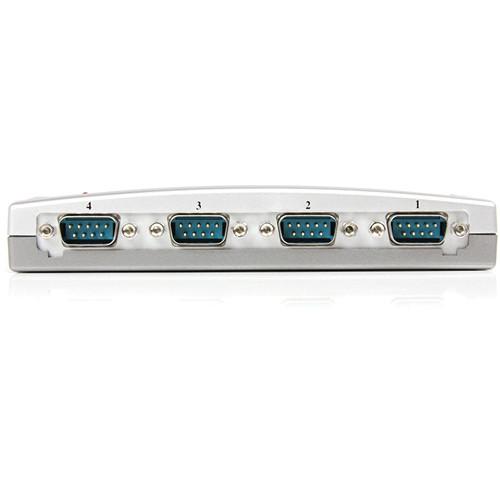

Product description The 4-Port USB to RS-232 Serial DB-9 Adapter Hub from StarTech lets you connect up to four RS-232 serial devices to your Mac, PC laptop, or desktop computer through a single USB port, similar to built-in DB-9 male serial connectors. The RS-232 serial hub is compactly designed to preserve valuable workspace, and is bus powered to eliminate the need for an external power adapter. This adapter hub is a cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS-232 serial peripherals. - Adds four additional RS-232 serial ports to any computer with a free USB port
- Provides serial connectivity to legacy free systems lacking RS-232 serial ports
- Supports wakeup and power management modes
- Bus powered; no external power adapter required
- Plug-and-play installation
- Fully compliant with USB 1.1 specifications and compatible with USB 2.0
- Connect modems, digitizer tablets, mice, bar code scanners, GPS receivers, ISDN terminal adapters, mobile phones, scanners, UPS, and POS equipment to your system
- Connect and program LEDs and digital signage boards with serial communication ports

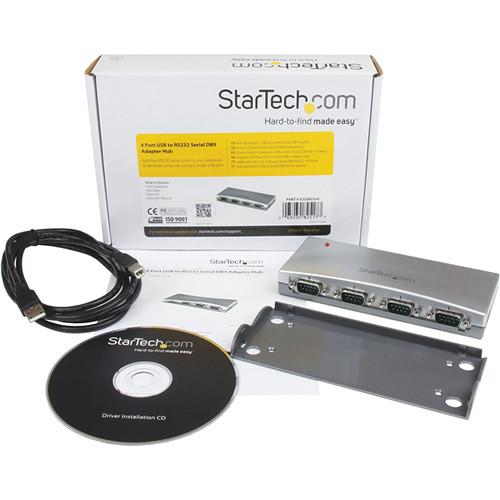

UPC: 065030825177 In the Box StarTech 4-Port USB to RS-232 Serial DB-9 Adapter Hub USB Cable Driver CD Limited Lifetime Warranty Brochure PDF 114.1kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port USB to RS-232 Serial DB-9 Adapter Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ICUSB2324 Specs | | | Interface | Serial | | Ports | 4 | | Bus Type | USB 2.0 | | Port Style | External hub | | Industry Standards | RS-232
USB 1.1 | | Chipset ID | FTDI - FT232RL | | | | Connector Type | 1 x USB A (4-pin) male | | External Ports | 4 x DB-9 (9-pin; D-Sub) male | | | | Max Baud Rate | 921.6 Kb/s | | Serial Protocol | RS-232 | | FIFO | 256 bytes | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, 98SE, XP Embedded, CE (4.2+)
Windows Server 2012, 2008 R2, 2003 (32/64-bit)
Mac OS 10.x (tested up to 10.9)
Linux 2.4.x/2.6.x | | | | Power Consumption | 1 to 1.5 W | | | | Humidity | 5 to 95% RH | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | | | System Requirement | 1 x free USB port | | | | Enclosure Material | Plastic | | Cable Length | 6' (1.8 m) | | Dimensions (L x W x H) | 5.9 x 2.6 x 1" (15.0 x 6.6 x 2.6 cm) | | Weight | 3.9 oz (110 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.7 x 8.0 x 2.2" |
