User Manual for StarTech 4-Port USB to Serial Adapter Hub with COM Retention Click to enlarge the picture
Contents of the user manual for the StarTech 4-Port USB to Serial Adapter
- Product category: Converters & Splitters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Converters & Splitters
 |
User manual for the StarTech 4-Port USB to Serial Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black 4-Port USB to Serial Adapter Hub with COM Retention from StarTech is a straight-through professional grade adapter that converts a single USB port to 4 RS232 serial ports, allowing you to connect to, monitor and control your serial devices. Its rugged metal construction and sturdy wall-mount brackets provide a robust solution for both harsh industrial environments and simple desktop installations.Powered by USB, the device does not require a power outlet for most standard applications. For installations requiring more power through the RS232 ports, the hub supports connection of an external power adapter (not included) to the integrated DC jack or terminal block. Once connected, the adapter retains assigned serial COM port values, allowing the same values to automatically be re-assigned to the ports provided by the adapter in the event it is disconnected, then re-connected to the host computer. This innovative adapter offers a professional grade solution for connecting legacy or industrial RS232 serial devices to modern computers or computers with unused USB ports - perfect for connecting serial modems, barcode scanners or any device with serial sync through USB, eliminating the expense of upgrading serial peripherals for USB compatibility. - Multiple ports with COM port retention give you hassle-free control of several serial devices, without you having to remember where each one was last connected
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation with the USB-powered adapter - no power outlet required
- Baud rate of up to 230 Kbps

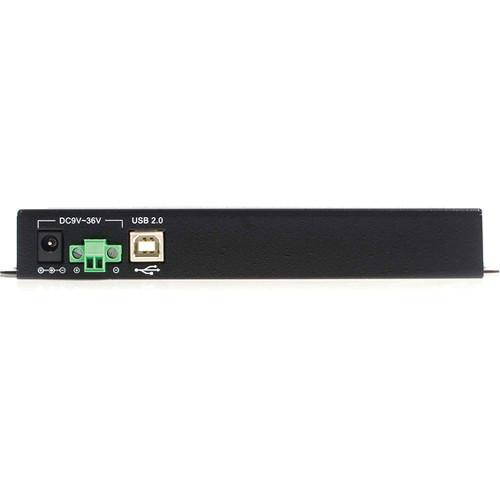

- Integrated DC jack or terminal block for connecting an external power adapter (not included)
- Designed to make serial port expansion quick and simple
- Provides dual buffers for upstream and downstream data transfer
- Supports automatic handshake mode
- Enables and disables enumerations
Applications - Perfect for IT administrators looking to add legacy functionality to new notebooks, PCs and servers that lack an integrated RS232 port
- Connect, monitor and control industrial/automotive sensors and equipment
- Connect barcode scanners, receipt printers and other point-of-sale devices
- Connect a satellite receiver, serial modem or PDA with serial sync
- Connect and program LED and digital signage boards with serial communication ports

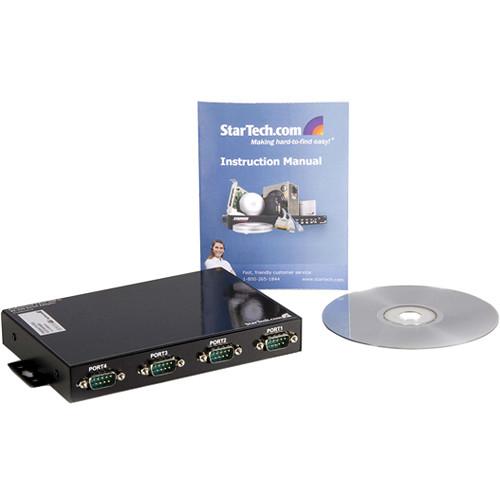

UPC: 065030832472 In the Box StarTech 4-Port USB to Serial Adapter Hub with COM Retention (Black) 3' (0.91m) USB A to B Cable Driver CD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4-Port USB to Serial Adapter Hub with COM Retention in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ICUSB2324X Specs | | | Interface | Serial | | Ports | 4 | | Bus Type | USB 2.0 | | Port Style | External hub | | Chipset ID | Texas Instruments - TIUSB3410 | | | | Connection Type | 1 x USB A (4-pin) male | | External Ports | 4 x DB-9 (9-pin; D-Sub) male | | | | FIFO Buffer | 32 bytes | | Max Baud Rate | 230.4 Kbps | | Serial Protocol | RS-232 | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Windows Server 2012, 2008 R2, 2003 (32/64-bit) | | | | Input Voltage | 9 - 36 VDC | | Input Current | 600 mA minimum | | Plug Type | N | | | | Humidity | 5 ~ 85% RH | | Operating Temperature | 14 to 176°F (-10 to 80°C) | | Storage Temperature | -4 to 212°F (-20 to 100°C) | | | | System and Cable Requirements | 1 x USB 1.1 (or above) port | | Certifications | CE, FCC, RoHS | | Dimensions (LxWxH) | 6.5 x 4.6 x 1" (165.2 x 118 x 25 mm) | | Weight | 20.9 oz (593 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.504 x 5.984 x 2.126" |
