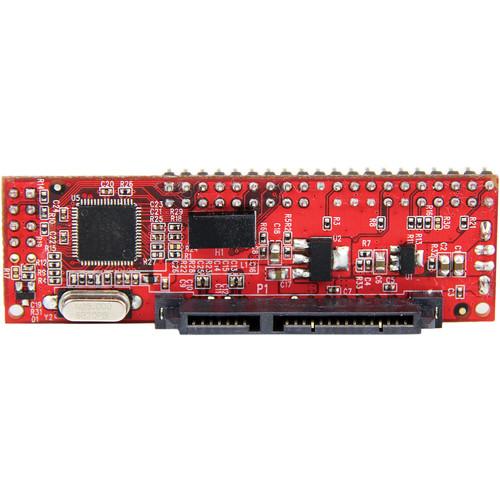

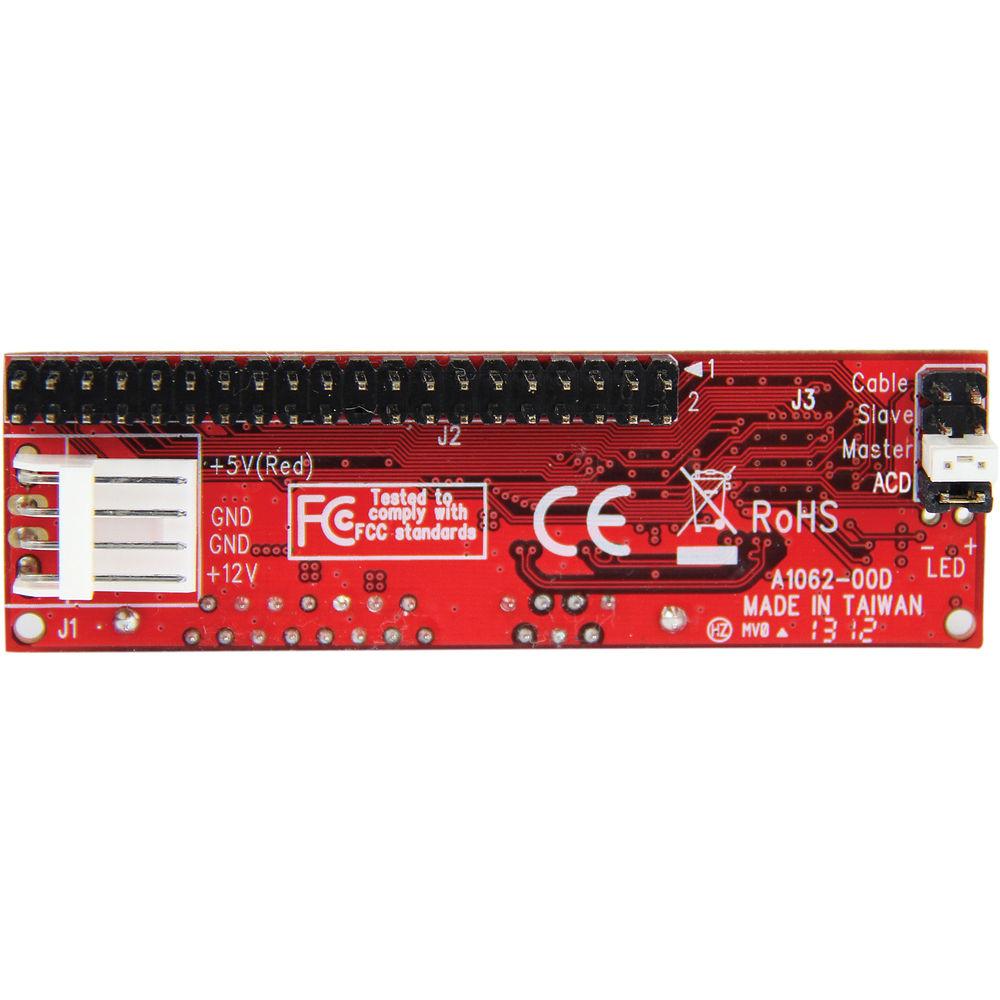

Product description The 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter from StarTech enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port. This converter is a cost-effective solution that allows you to add SATA drives and keep your existing motherboard. It bridges the gap between a 2.5", 3.5", and 5.25" SATA drive and an older IDE motherboard port. The converter also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard. - Connects a SATA device to an IDE/ATA motherboard or controller card
- Complete hardware solution, no software required
- Support for 48-bit Logical Block Addressing (LBA)
- Compliant with SATA revision 1.0 specification and compatible with Ultra ATA 133 specification
- Supports 2.5", 3.5", and 5.25" SATA drives
- ODD (Optical Disk Drive) support, including Blu-ray, DVD, and CD-ROM drives
- An internal solution for connecting your SATA hard drive to a motherboard that supports an IDE interface
- Suitable for use with older motherboards that do not support SATA

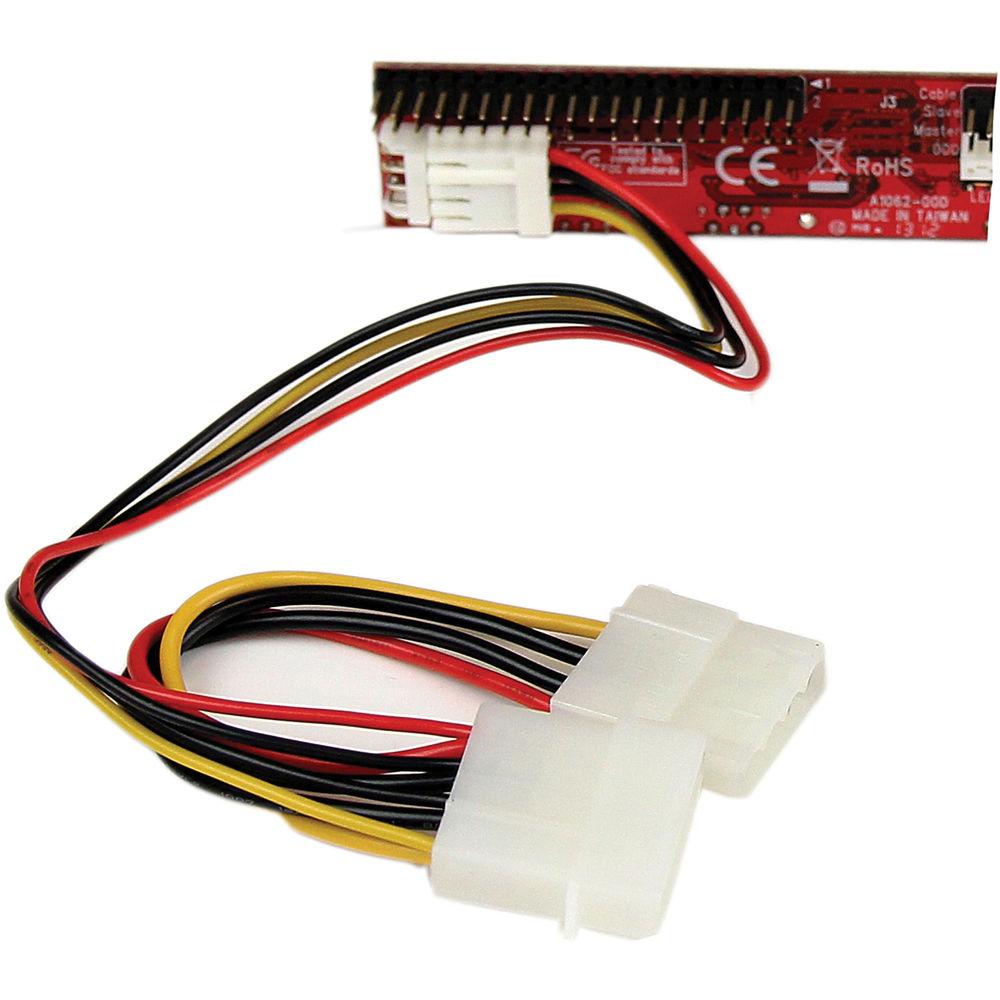

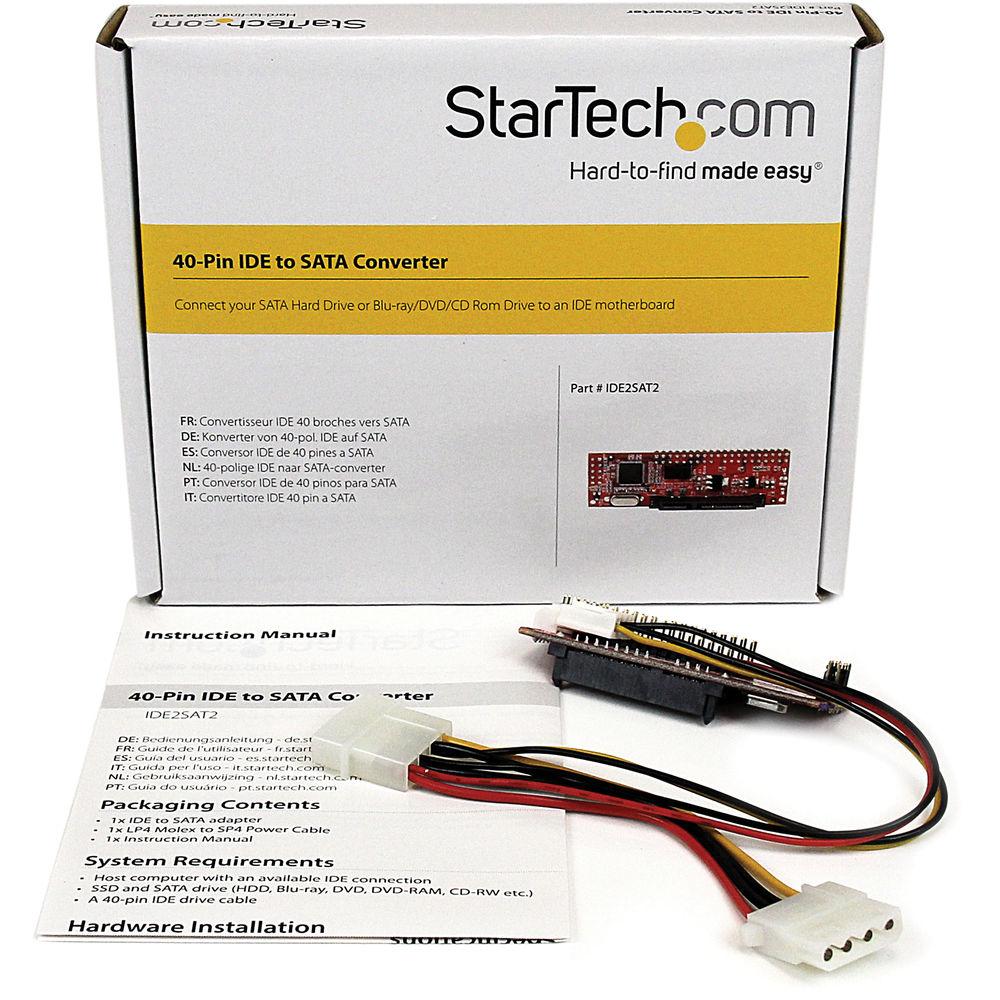

UPC: 065030852258 In the Box StarTech 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter LP4 Molex to SP4 Power Cable Limited 2-Year Warranty Brochure PDF 83kbryuzbzvcvtyzydubuuxaf More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 40-Pin PATA to 2.5" SATA HDD SSD ODD Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech IDE2SAT2 Specs | Connector 1 | IDE (40-pin EIDE/PATA) | | Connector 2 | SATA data and power combo (7+15-pin) | | Connector 3 | SP4 (4-pin small drive power) | | System and Cable Requirements | An IDE controller and ATA cable Sold separately | | Data Transfer Rate | Maximum: 133 MB/s | | Chipset ID | Marvell - 88SA8052 | | Operating Temperature | 40 to 122°F (5 to 50°C) | | Storage Temperature | -13 to +176°F (-25 to +80°C) | | Relative Humidity | 15 to 90% | | Compliances | CE, FCC, RoHS | | Dimensions (L x W x H) | 3.0 x 0.8 x 0.9" (76.2 x 20.3 x 22.9 mm) | | Weight | 0.5 oz (14.2 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.7 x 5.7 x 1.2" |
