User Manual for StarTech 4K DisplayPort Docking Station for Laptops Click to enlarge the picture
Contents of the user manual for the StarTech 4K DisplayPort Docking Station for
- Product category: Docking Stations & Port Replicators StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Docking Stations & Port Replicators
 |
User manual for the StarTech 4K DisplayPort Docking Station for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description Provided by third party: Set up a permanent or hoteling (hot desking) 4K workstation where fewer peripheral and device ports are needed, and in an area where desk space is limited.
This 4K DisplayPort docking station for laptops offers a cost-effective way to create a simpler but highly functional Ultra HD workstation that can be used in permanent workspaces, or by multiple people in guest or hoteling (hot desk) environments.
If you don't need all the connections and features of a traditional laptop docking station, you can use this dock to add the most essential connections (such as an extra high-resolution display) to your laptop. With support for 4K cinema-quality resolution, it's great for graphic and web designers, video editors, and more.
Now you or your colleagues can be more productive and create an efficient and comfortable workspace, even in an area with minimal desk space.

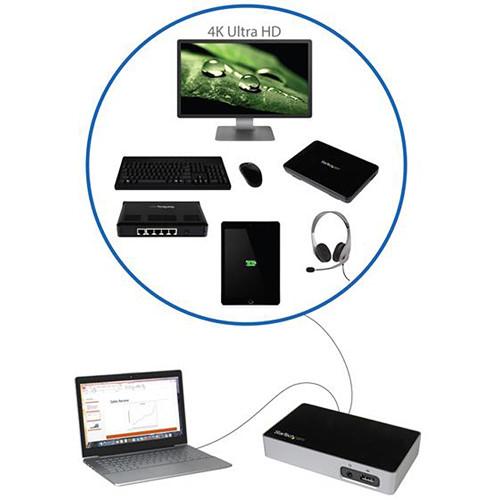

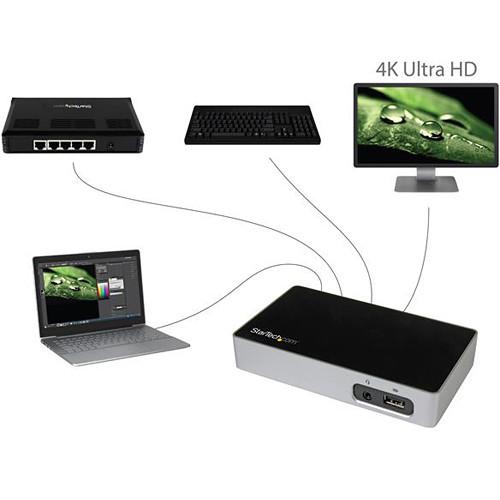

This laptop dock features basic device connections that are integrated into a small foot-print housing. Now you can create a permanent or a hoteling (hot desking) workstation in a location with limited space. The dock offers an efficient solution for adding an extra display, a Gigabit network connection, and multiple USB devices without having to connect several individual adapters. And, with hotel desks or hot desks, laptop users aren't tied to one specific workstation, so they can come and go easily.
For users who require a boost in image quality, the dock offers a 4K DisplayPort connection that supports 4K x 2K (3840 x 2160p - 30Hz) Ultra HD resolution.
The DP dock offers simpler connectivity, so you can save money by avoiding a docking station that has connections you might never use. It's perfect for anyone who needs to expand their connectivity in virtually any environment or application.

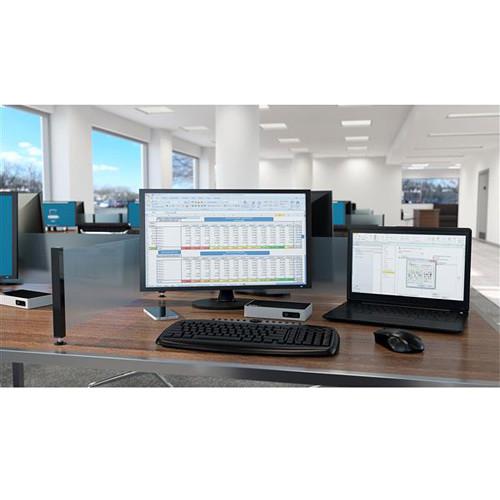

It's a cost-effective docking station that still provides all the fundamental ports of a full-size workstation, such as an DisplayPort output, and when paired with your laptop display, you can easily set up dual monitors.
The 4K dock is perfect for professionals who work with highly detailed graphics, or large spreadsheets, such as engineers, animators, and financial analysts.

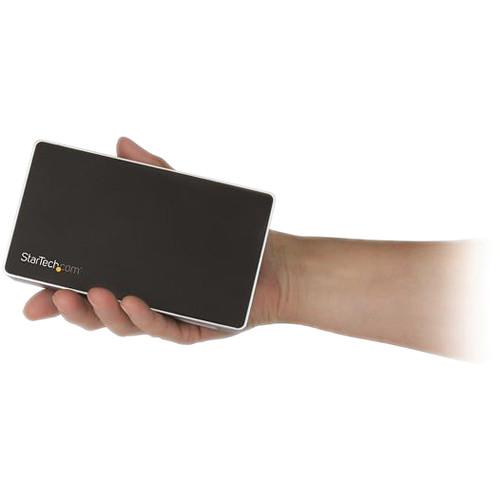

If you're running out of physical workspace, this USB 3.0 (also known as USB 3.1 Gen 1 - 5Gbps) docking station can help. Its compact design occupies minimal surface area, so you can integrate it into smaller areas than traditional docking stations or desktop computers would require.
By maximizing your available space, the compact dock can help eliminate the added cost and hassle of purchasing more offices, cubicles, or desks.
With fewer ports integrated into a small foot-print housing, the dock is a perfect fit for short-term work areas (hot desks). It's ideal for mass deployment in business, classroom, computer lab, and government settings. Plus, it integrates nicely into home-office or office-hoteling workspaces that have limited space.

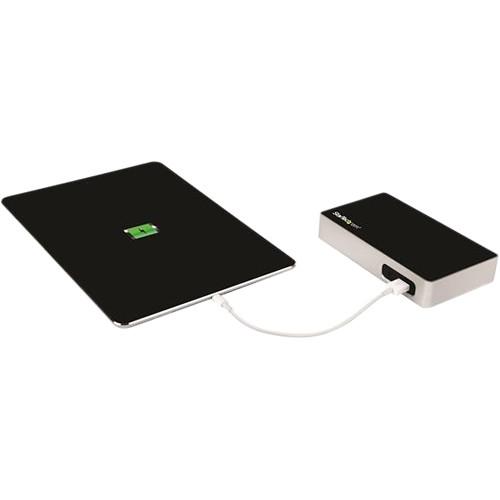

You can avoid the aggravation of a dead battery and make sure your mobile device is always ready to go, using the dock's USB fast-charge and sync port. Plus, the always-on USB port supports device charging even when your laptop isn't connected to the dock.

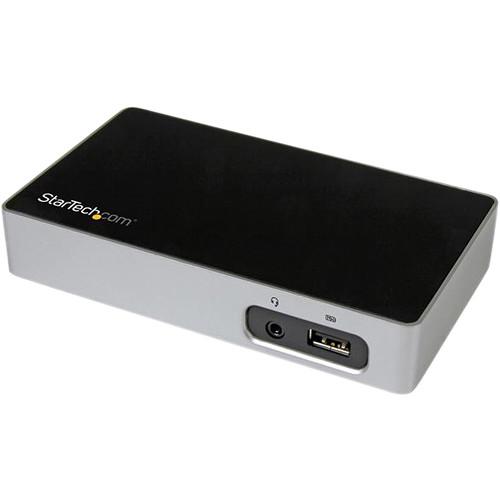

When you're in a hurry, the easily accessible USB port charges your smartphone or tablet faster than traditional USB ports. This front-panel port ensures your mobile device is always within arm's reach, so you can simultaneously get your work done while enjoying convenient device charging at your workstation.
- Key Features
-
- Add essential ports to your laptop and create a permanent, 4K single-video workstation, or a short-term (hotel or hot desk) workspace
- Create a 4K Ultra HD (3840 x 2160p) workstation in your office or any environment with space constraints, with a compact, small-footprint housing that offers simpler device port connectivity

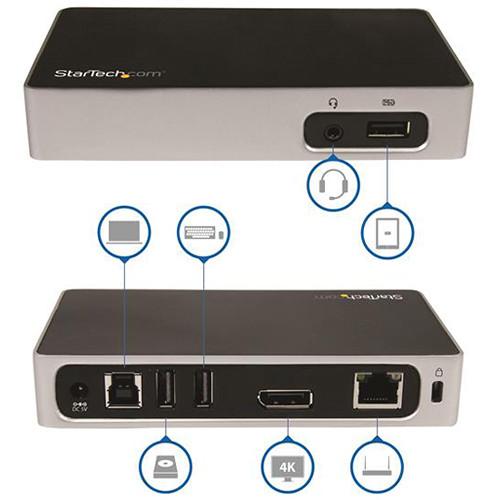

- A cost-effective way to add ports to your laptop, such as 4K DisplayPort, USB fast-charge, USB 3.0, Gigabit Ethernet, and a headset jack
UPC: 065030861830 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4K DisplayPort Docking Station for Laptops in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech USB3VDOCK4DP Specs | | | Product Type | Docking station | | Width | 3.1 in | | Depth | 5.5 in | | Height | 1 in | | Enclosure Color | Black & silver | | | | Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 1.1, USB 2.0, USB 3.0 | | | | Interfaces | 1 x display / video - DisplayPort - 20 pin DisplayPort
3 x SuperSpeed USB 3.0 - 9 pin USB Type A
1 x SuperSpeed USB 3.0 - 9 pin USB Type B
1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45

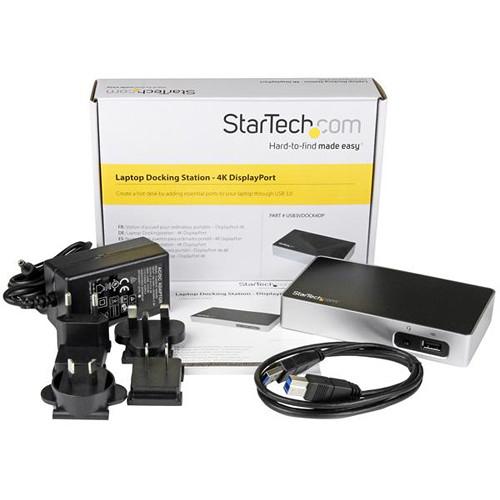

1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole | | | | Cables Included | 1 x SuperSpeed USB cable - external | | Features | Security lock slot (cable lock sold separately), wake on LAN, LED indicator, UASP transfer protocol, 1 USB 3.0 fast charging port | | Compliant Standards | FCC, RoHS, USB Battery Charging Specification Rev. 1.2 | | | | Power Device | Power adapter | | Voltage Required | AC 120/230 V | | | | OS Required | Microsoft Windows 7 / 8 / 8.1 / 10, Google Chrome OS 55 or later, Apple MacOS X 10.8 - 10.13.3 | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 41
