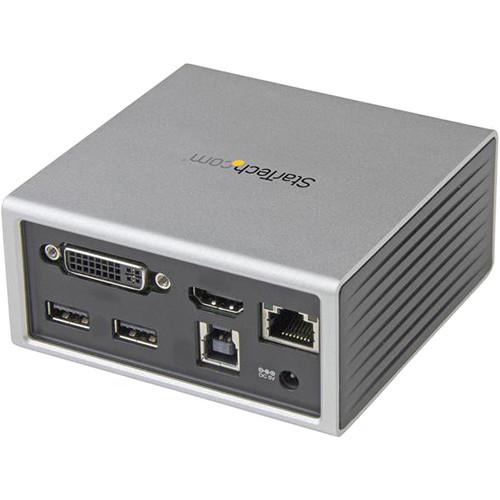

Product description With the ability to output a max 3840 x 2160 resolution, this 4K Docking Station from StarTech allows you to use your laptop as a workstation, even if it doesn't natively support 4K output. This docking station is designed with a stacked-port layout in a compact housing, so that it occupies less surface area than traditional laptop docks.

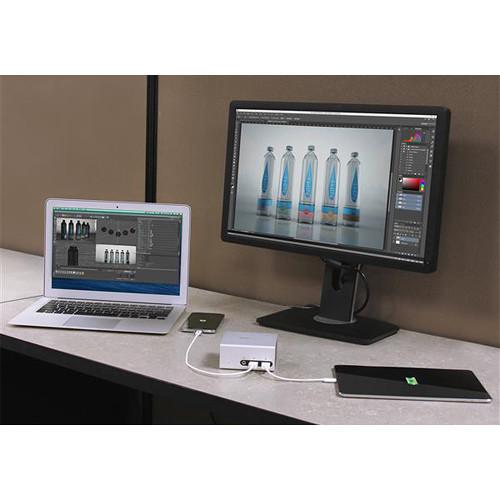

The docking station outputs a max 3840 x 2160 resolution at 30 Hz on a single HDMI display. You can add an additional screen to your setup using the DVI output, which supports a max 2048 x 1152 resolution. This allows you to work more efficiently, because you won't have to flip back and forth between pages or windows.

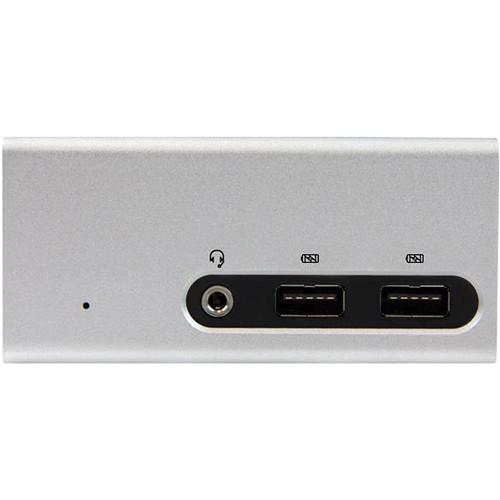

With this docking station, you can work faster and reduce cable clutter in tight spaces by leaving peripherals connected to the dock. You can keep your mobile devices fully charged and ready to go using the dock's two front-panel USB 3.0 fast-charge and sync ports. The ports will be available even when your laptop is disconnected from the docking station. - Connect a single 3840 x 2160p HDMI display, or dual-monitors with 2048 x 1152p max resolution on each display
- Four USB 3.0 ports including two USB fast-charge ports to charge your mobile devices, even without a laptop connection
- HDMI and DVI video output
- Use the 3.5mm 4-position TRRS port for audio and microphone support
- Gigabit Ethernet RJ-45 port with Wake-on-LAN (WOL) support
- USB ports support UASP (USB Attached SCSI Protocol)
- Supports Auto MDIX and full-duplex modes
UPC: 065030861564 In the Box StarTech 4K Docking Station for Laptops USB 3.0 Host Cable Universal Power Adapter (NA/EU/UK/AU) Limited 3-Year Warranty Brochure PDF 418.6kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4K Docking Station for Laptops in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech USB3SMDOCK4K Specs | | | Resolutions Supported | 3840 x 2160 @ 30 Hz (HDMI, single display)
2048 x 1152 (DVI, single display)
2048 x 1152 and 2048 x 1152 (HDMI and DVI, two displays)
Lower resolutions are also supported | | Compatible Networks | 10/100/1000 Mb/s | | Maximum Data Transfer Rates | 5 Gb/s (USB 3.0)
2 Gb/s (Ethernet, full-duplex) | | USB Specification | 3.0, 5 Gb/s | | | | Chipset ID | DisplayLink: DL-5900 (display, LAN, audio)
VLI: VL812 (USB 3.0 with charging capability)
Genesys Logic: GL3521 (USB 3.0) | | Standards | USB battery charging specification rev. 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

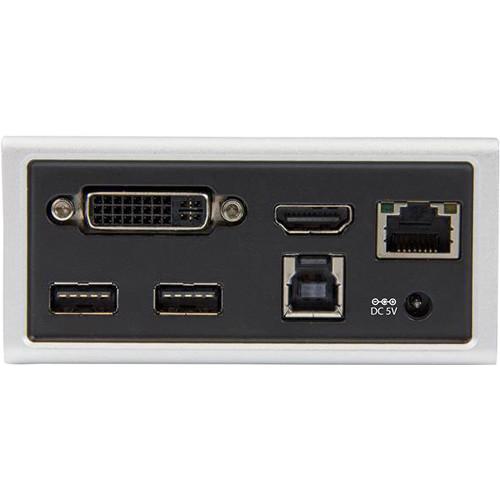

USB 3.0 backward compatible with USB 2.0/1.1 | | | | Center Tip Polarity | Positive | | Input Current | 0.9 A | | Input Voltage | 100 to 240 VAC | | Output Current | 4 A | | Output Voltage | 5 VDC | | Plug Type | C | | Power Consumption | 20 W maximum | | | | Connectors | 1 x HDMI 19-pin female
1 x DVI-I 29-pin female
2 x USB-A 3.0 fast-charge, 9-pin female
2 x USB-A 3.0 9-pin female
1 x RJ-45 female
1 x 3.5 mm mini-jack, 4-Position female
1 x USB-B 3.0 9-pin female | | Indicators | Power: Blue
Link: Green
Activity: Yellow | | | | Humidity (Non-Condensing) | 0 to 90% relative humidity | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | | | Enclosure Type | Aluminum and plastic | | Dimensions | 1.8 x 3.7 x 3.7" / 45.7 x 94 x 94 mm | | Weight | 10 oz / 283.5 g | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 8.9 x 5.8 x 2.2" |
