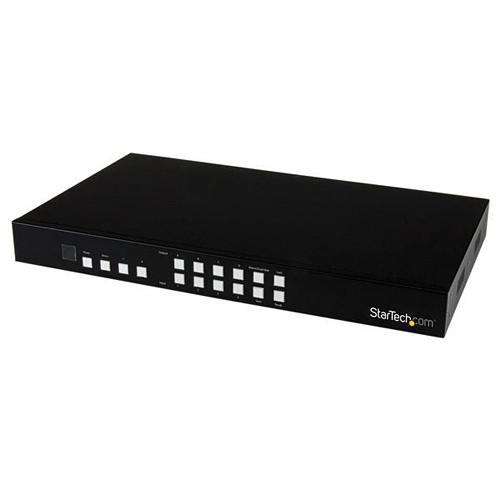

Product description The black 4x4 HDMI Matrix Switch with PiP Multiviewer from StarTech allows you to seamlessly combine and distribute four HDMI audio/video sources across four different HDMI displays, with the added ability to combine multiple images on the same display. The split screen multiplexing switch combines the flexibility of a matrix switch with the scalability of a video wall, giving you the freedom to combine video sources on a single display. You can also distribute different video combinations independently across four individual displays. The switch offers full matrix configuration supporting four different picture-in-picture modes per display: Matrix Mode (1x1), Dual Mode (2x1), Quad Mode (4x1), and TV Wall Mode (1x4). - Output Control
-
- Fitting your boardroom or digital signage application with this switch increases your communication possibilities
- Not only does the picture-in-picture matrix switch increase your communication by a factor of four per display, but it also enables you to adjust your video sources remotely using RS-232 serial, your local TCP/IP network, or the included IR remote control
- Versatile Display
-
- Picture-in-picture technology enables you to share up to four distinct images on the same screen
- For security monitoring, you can combine four video sources onto a single display to view everything more efficiently and broadcast those feeds to four different displays in different locations
- You can zoom in to a single feed for a closer look without disrupting the remaining three displays
- For versatile installation options, mounting hardware is included ensuring a tidy and professional installation
- General
-
- Switch increases your communication power by linking four HDMI audio/video sources with four HDMI displays
- Get the whole picture by outputting multiple inputs on the same display, or mix-and-match inputs across multiple displays
- Picture-and-Picture support
- Support for video resolutions up to 1920 x 1200 / 1080p

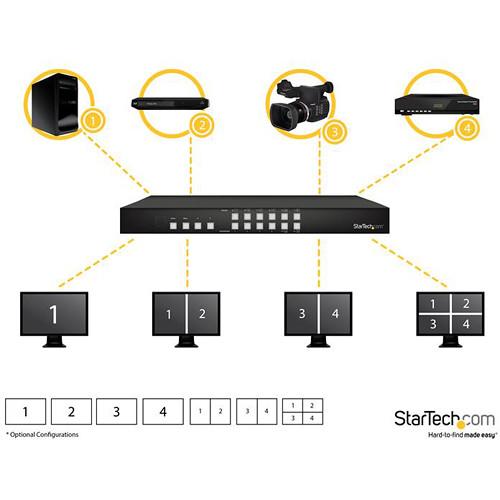

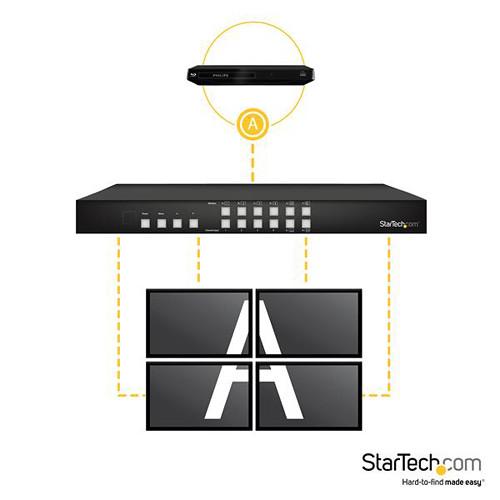

- Four different picture-in-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1) / TV Wall Mode (1x4)
- Remote control using RS-232 (serial), Telnet (TCP/IP Network), or IR (remote control included)
- Selectable audio source to be outputted with your combined video sources
- Mounting hardware included
- Applications
-
- Adds multi-screen configurations to your boardroom, for improved collaboration and idea sharing
- Use in your digital signage applications to provide multiple video sources on the same screen, and distribute to four different locations
- Runs multimedia presentations with supporting data showing on another display in business conference rooms or at trade shows
- Ideal for connecting/switching multiple sources in test bench facilities, data centers, help desks, and video broadcasting facilities
- Monitor multiple security sources (cameras) simultaneously

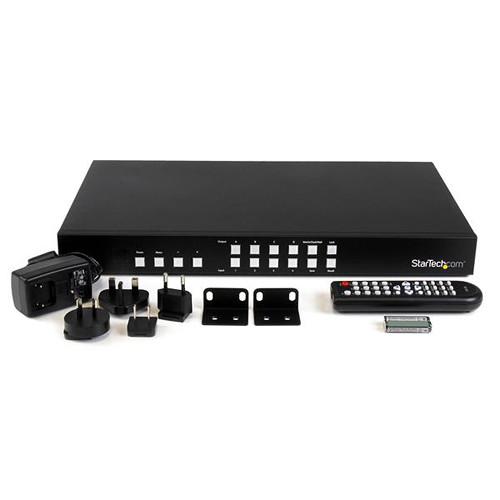

UPC: 065030858403 In the Box StarTech 4x4 HDMI Matrix Switch with PiP Multiviewer/Video Wall (Black) 2 x Mounting Bracket Remote Control Universal Power Adapter Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 4x4 HDMI Matrix Switch with PiP Multiviewer Video Wall in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech VS424HDPIP Specs | Cabling | HDMI | | Output Signal | HDMI | | Ports | 4 | | Audio Specifications | 7.1 surround sound | | Maximum Digital Resolutions | 1920 x 1200
1920 x 1080
1280 x 720

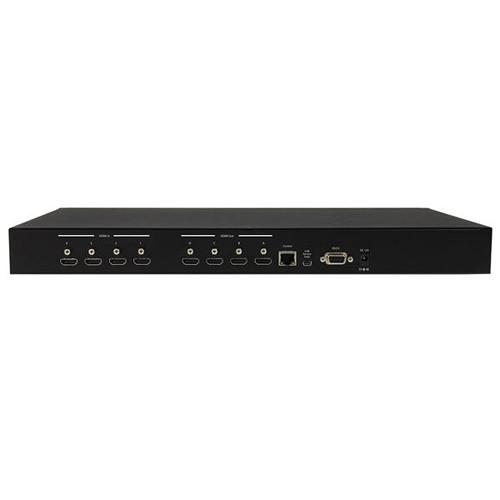

640 x 480 | | Wide Screen Supported | Yes | | Connectors | Connector A: 4 x HDMI (19 pin), female
Connector B: 4 x HDMI (19 pin), female
Connector Type: 1 x DB-9 (9-pin, D-Sub), male
Connector Type: 1 x RJ-45, female

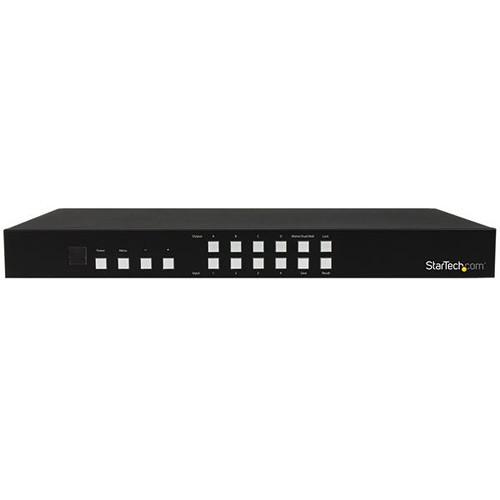

Connector Type: 1 x IrDA (Infrared, SIR/FIR) | | LED Indicators | 1 x Power LED
1 x Menu LED (OSD)
2 x Menu operation LED (+ / -)
4 x Output selection LED (A / B / C / D)
4 x Input selection LED (1 / 2 / 3 / 4)
1 x Mode selection LED (Matrix / Dual / Wall)
1 x Save LED
1 x Lock LED | | Input Current | 1 A | | Input Voltage | 100 to 240 AC | | Output Current | 3 A | | Output Voltage | 12 DC | | Power Source | AC adapter included | | Material | Aluminum | | Dimensions | 1.9 x 17.2 x 9.8" (4.8 x 43.7 x 24.9 cm) | | Weight | 99.1 oz (2.8 kg) | | | | Package Weight | 9.58 lb | | Box Dimensions (LxWxH) | 23.5 x 18.0 x 17.2" |
