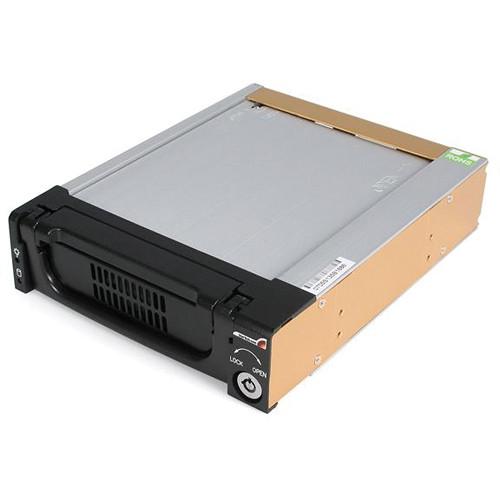

User Manual for StarTech 5.25" Removable SATA Hard Drive Mobile Rack Drawer Click to enlarge the picture
Contents of the user manual for the StarTech 5.25" Removable SATA Hard Drive
- Product category: Internal Hard Drive Trays StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Internal Hard Drive Trays
|
User manual for the StarTech 5.25" Removable SATA Hard Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black 5.25" Removable SATA Hard Drive/Mobile Rack Drawer from StarTech is a hot-swap solution that allows you to quickly swap SATA hard drives in/out of a computer, without having to open the computer case. The mobile rack is fully compatible with RAID installations to ensure maximum performance and versatility, for enhanced storage applications. It features a front panel ball-bearing fan with aluminum construction and 25,000+ insertion rating. To maximize the performance and utilize the full speed potential of your SATA III hard drives, the HDD backplane supports SATA III for transfer speeds up to 6 Gb/s, when paired with a compatible controller. Simply install the drive bay into a 5.25" bay on the host computer, and mount a 3.5" SATA HDD into the (removable) caddy. Connecting the SATA hard drive to the computer is as easy as inserting the caddy into the drive bay, which can be locked to prevent unauthorized removal of the drive. - Fits a single SATA drive into a front accessible 5.25" bay
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gb/s)
- Supports 3.5" form factor SATA hard drives
- 40mm ball-bearing cooling fan
- Dust resistant door on bay unit
- Power and Activity LED indicators
- Heavy duty aluminum construction for the drive caddy and bay
- Adds additional hot-swap bays to a server or workstation computer
- Replaces or upgrades old IDE backplane with a SATA backplane
- Images many drives simultaneously and quickly
- Drives can be replaced or removed regularly, without external protection for the drives required after removal
- Replaces/removes individual drives from a storage array, with minimal or no system down time
UPC: 065030805728 In the Box StarTech 5.25" Removable SATA Hard Drive/Mobile Rack Drawer (Black) 1 x 5.25" Mobile Rack Bay 1 x SATA Cable 2 x Keys 1 x Screw Kit Limited 2-Year Warranty Manual PDF 141.8kbwceavqudadfybxvrcuvs More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 5.25" Removable SATA Hard Drive Mobile Rack Drawer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech DRW150SATBK Specs | Supported Drive Size | 3.5" | | Drive Type | SATA | | Data Transfer Speed | SATA III 6 Gb/s | | Fan | 1 x 1.6" (40.0 mm) ball-bearing | | Connectors | Drive
1 x SATA power (15-pin) receptacle
Host
1 x LP4 (4-pin Molex large drive power) male 1 x SATA (7-pin data) plug 1 x SATA power (15-pin) receptacle | | System and Cable Requirements | PC or Mac with a 5.25" drive bay Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated | | Enclosure Type | Aluminum | | LED Indicators | Activity: Yellow
Power: Green | | Key Lock | Yes | | Dimensions (L x W x H) | 7.5 x 5.8 x 1.6" (190.5 x 147.3 x 40.6 mm) | | Weight | 30.4 oz (861.8 g) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.7 x 6.0 x 1.8" |
