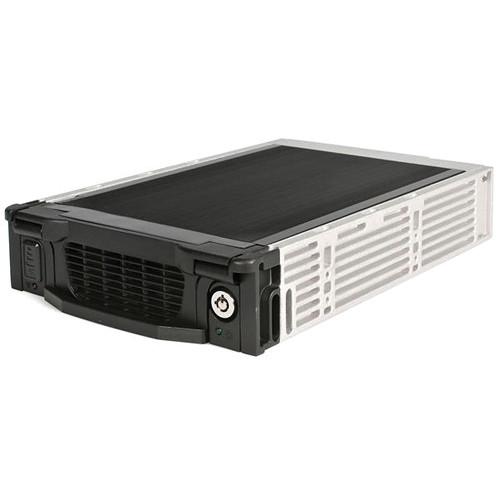

User Manual for StarTech 5.25" Removable SATA Hard Drive Mobile Rack Drawer Click to enlarge the picture
Contents of the user manual for the StarTech 5.25" Removable SATA Hard Drive
- Product category: Internal Hard Drive Trays StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Internal Hard Drive Trays
|
User manual for the StarTech 5.25" Removable SATA Hard Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The black 5.25" Removable SATA Hard Drive/Mobile Rack Drawer from StarTech is a SATA hot-swap solution that allows you to quickly swap SATA hard drives in and out of a computer without having to open the computer case. To maximize the performance and utilize the full speed potential of your SATA III hard drives, the HDD backplane supports SATA III for transfer speeds up to 6 Gb/s when paired with a compatible controller. For enhanced storage applications, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility.Swap Manager utility software lets users swap drives in and out of the host computer without powering it down. The drawer is suitable for large capacity drives, allowing you to swap large amounts of data in a matter of seconds.The drive caddy features two front panel ball-bearing fans that help to keep the enclosed drive cool, which helps optimize operation while preserving the drive's lifespan. To prevent damage to the hard drive while being transferred in and out of the computer, the drive caddy features shock absorbers and rubber cushioning that help limit vibration/shock to the drive. A dependable, long-lasting storage solution, the drive drawer/mobile rack features durable aluminum construction, with a 7000+ insertion rating. Simply install the drive bay into a 5.25" drive bay on the host computer, and then mount a 3.5" SATA HDD in the (removable) caddy. Connecting the SATA hard drive to the computer is as easy as inserting the caddy into the drive bay, which can be locked to prevent unauthorized removal of the installed SATA drive. - Fits a single SATA drive into a front-accessible 5.25" bay
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gb/s)
- Supports 3.5" form factor SATA hard drives
- Dual front-mounted ball-bearing fans
- Power and fan status LEDs
- Heavy duty aluminum construction for the drive caddy and bay
- Includes hot-swapping software
- Drives can be replaced/removed regularly, without external protection for the drives required after removal
UPC: 065030799713 In the Box StarTech 5.25" Removable SATA Hard Drive/Mobile Rack Drawer (Black) 1 x Mobile Rack Caddy 2 x Keys 1 x Screw Kit 1 x Software CD Limited 2-Year Warranty Manual PDF 117.2kbsbacbqatsxtsuxwyevefb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 5.25" Removable SATA Hard Drive Mobile Rack Drawer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech DRW115SATBK Specs | Supported Drive Size | 3.5" | | Drive Type | SATA | | Data Transfer Speed | 6 Gb/s SATA III | | Fan | Dual 1.6" (40.0 mm) ball-bearing | | Connectors | Drive
1 x SATA (7-pin data) receptable
1 x SATA power (15-pin) receptacle
Host
1 x LP4 (4-pin Molex large drive power) male
1 x SATA (7-pin data) plug
1 x SATA power (15-pin) plug | | System and Cable Requirements | PC or Mac with a 5.25" drive bay | | Enclosure Type | Aluminum | | LED Indicators | Fan Failure: Red
Power: Green | | Key Lock | Yes | | Shock Protection | Yes | | Operating Temperature | 23 to 122°F (-5 to 50°C) | | Storage Temperature | -4 to 149°F (-20 to 65°C) | | Relative Humidity | 10 to 80% | | Compliance | CE, RoHS | | Dimensions (L x W x H) | 8.7 x 5.8 x 1.6" (221.0 x 147.3 x 40.6 mm) | | Weight | 34.6 oz (980.9 g) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 9.9 x 6.3 x 2.0" |
