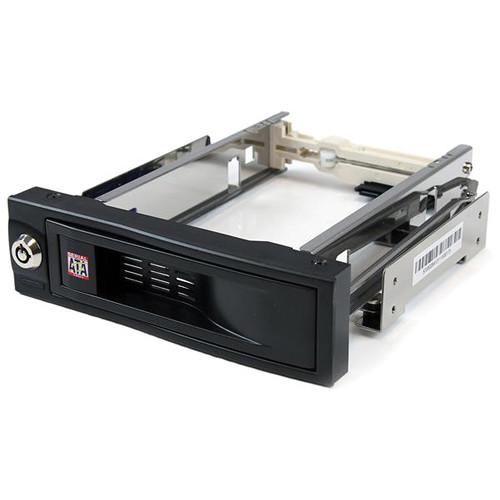

User Manual for StarTech 5.25" Trayless Hot-Swap Mobile Rack for 3.5" HDD Click to enlarge the picture
Contents of the user manual for the StarTech 5.25" Trayless Hot-Swap Mobile Rack
- Product category: Internal Hard Drive Trays StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Internal Hard Drive Trays
|
User manual for the StarTech 5.25" Trayless Hot-Swap Mobile Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The 5.25" Trayless Hot-Swap Mobile Rack for 3.5" HDD from StarTech allows you to install a 3.5" SATA drive in an available 5.25" drive bay. This hot-swappable bay offers a trayless design that makes it a suitable solution for quick and easy drive removals and insertions, as part of a system building process, or integration into rackmount systems, or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard disk drives, this HDD backplane supports SATA III for transfer speeds up to 6 Gb/s, when paired with a compatible controller. Also, it is a suitable addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly. The hot-swap bay fulfills the need to expedite important projects, while maintaining a reliable storage solution. With the support for SATA hard disk drive speeds up to 6.0 Gb/s, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications. This mobile rack features 50,000+ insertion rating, and provides a durable and reliable operating experience. - Holds a 3.5" SATA drive in a front accessible 5.25" bay
- Trayless design, where drives are not mounted into separate trays/enclosures
- Internal rubber shock absorbers
- Power and activity LED indicator
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gb/s)
- Supports 3.5" form factor SATA hard drives
- Plug-and-play and hot-swappable
Applications - Adds additional hot-swap bays to a server or workstation computer
- Replace or upgrade old IDE backplane with a SATA backplane
- System builders who need to image drives quickly and efficiently
- Environments where drives need to be replaced/removed regularly, without external protection for the drives required after removal
- You can replace or remove individual drives from a storage array, with minimal or no system down time
UPC: 065030821360 In the Box StarTech 5.25" Trayless Hot-Swap Mobile Rack for 3.5" HDD 2 x Keys 1 x Screw Kit Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 5.25" Trayless Hot-Swap Mobile Rack for 3.5" HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 5.25" Trayless Hot-Swap Mobile Rack for 3.5" HDD can be downloaded in PDF format at the link stated below.
Technical parametersStarTech HSB100SATBK Specs | | | Supported Drive Types | SATA revision I/II/III (1.5/3.0/6.0 Gb/s) | | Supported Drive Size | 3.5" | | Number of Drives | 1 | | Key Lock | Yes | | | | Drive Connectors | 1 x SATA (7-pin, data) receptacle
1 x SATA power (15-pin) receptacle | | Host Connectors | 1 x SATA (7-pin, data) plug
1 x SATA power (15-pin) plug | | | | Hot-Swappable | Yes | | Insertion Rating | 50,000+ cycles | | | | OS Compatibility | OS independent, no software or drivers required | | | | LED Indicators | 1 x Drive power/activity | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | Operating: 5 to 85% RH (non-condensing)
Storage: 5 to 95% | | | | Enclosure Type | Aluminum and plastic | | Dimensions (LxWxH) | 7.2 x 5.9 x 1.7" (18.3 x 15.0 x 4.3 cm) | | Weight | 10.8 oz (306.2 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 8.1 x 6.1 x 2.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
