User Manual for StarTech 7.1-Channel 24-bit 192 kHz PCIe Sound Card with Header Bracket & 10-Pin Cable Click to enlarge the picture
Contents of the user manual for the StarTech 7.1-Channel 24-bit 192 kHz PCIe
- Product category: Sound Cards StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Sound Cards
 |
User manual for the StarTech 7.1-Channel 24-bit 192 kHz PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The 7.1-Channel 24-bit 192 kHz PCIe Sound Card from StarTech is designed to fit in low-profile computers, making it suitable for home theatre personal computers (HTPC). This card allows you to output digital audio to your optical receiver or DAC, or analog audio to your sound system. It offers SPDIF input and output ports which deliver crystal-clear digital optical audio. With up to 24-bit and 192 kHz playback and recording, this 7.1 surround sound adapter card delivers HD audio for optimum sound quality. For added scalability, you can quickly connect a microphone or other recording devices to your computer through two 3.5mm stereo or SPDIF digital audio input jacks. The card can be configured with standard profile brackets and includes low-profile (half-height) brackets. - Main Highlights
-
- High-resolution 7.1 digital surround sound
- Full duplex support

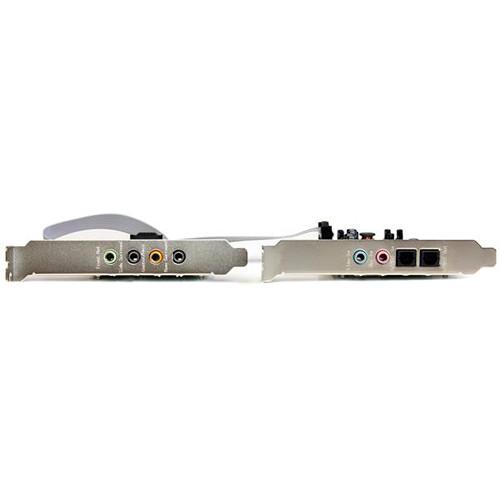

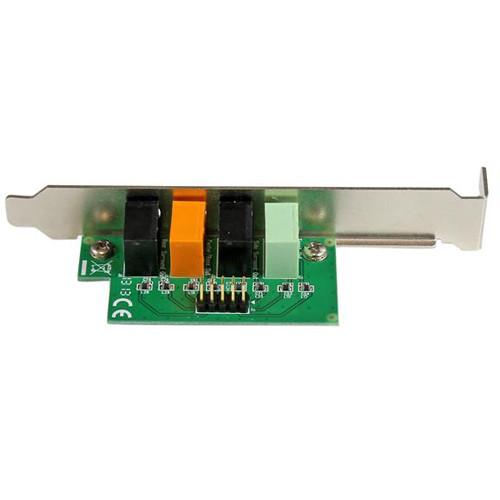

- Multiple ports across the main card plus a separate header bracket
- Supports digital optical or analog audio devices through SPDIF or 3.5mm jacks
- All ports fit in standard or small form-factor computers (low-profile brackets included), using the main card plus header bracket
- Supports HD audio, with up to 24-bit and 192 kHz playback and recording
- Stereo microphone, line, and SPDIF inputs
- Approximately 92 dB SNR (signal-to-noise ratio) at front output
- Three internal auxiliary inputs (2x CD/DVD-IN and 1x Intel HD front panel audio)
- Supports ASIO and WASAPI
- Applications
-
- Build a home theater PC or turn your existing desktop into a media center
- Provide additional inputs and outputs for multiple audio sources or destinations
- Upgrade stereo-only onboard audio in your computer

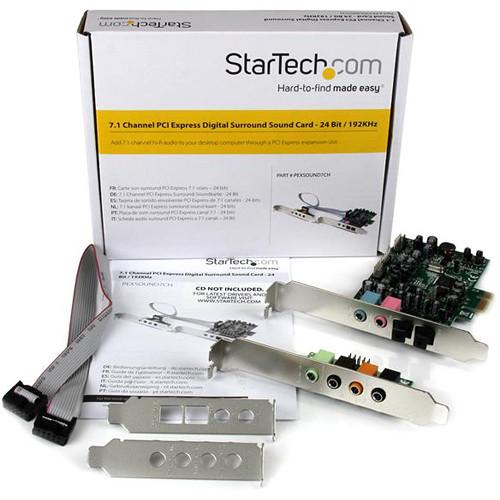

UPC: 065030860376 In the Box StarTech 7.1-Channel 24-bit 192 kHz PCIe Sound Card with Header Bracket & 10-Pin Cable 2 x Low-Profile Bracket Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 7.1-Channel 24-bit 192 kHz PCIe Sound Card with Header Bracket & 10-Pin Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech PEXSOUND7CH Specs | | | Bus Type | PCIe 1.1 | | Card Type | Standard Profile (low-profile bracket included) | | Chipset ID | C-Media: CM8828 | | | | Signal-to-Noise Ratio | Approximately 92 dB (A-weighting) at front output | | Crosstalk | -95 dB | | THD + Noise | 0.01% | | Frequency Response | 20 to 20 kHz (±0.5 dB) | | Channel Playback | 7.1 | | Converter | AD/DA: CM9882A | | Recording | 24-bit / 192 kHz playback and recording | | S/PDIF Output | Optical | | | | Audio | External:
1 x 3.5 mm mini-jack analog left / right line input
1 x 3.5 mm mini-jack analog left / right microphone input
1 x 3.5 mm mini-jack front left / right analog output
1 x 3.5 mm mini-jack side surround left / right analog output
1 x 3.5 mm mini-jack center / subwoofer analog output
1 x 3.5 mm mini-jack rear surround left / right analog output
1 x Toslink (S/PDIF digital optical, female) input
1 x Toslink (S/PDIF digital optical, female) output
Internal:
2 x MPC2 (4-pin male, analog CD-input header)
2 x IDC (10-pin, male motherboard header)
1 x IDC (9-pin, USB 2.0, male motherboard header) | | MIDI | None | | | | Compliant Standards | Not Specified by the Manufacturer | | System Requirements | PCIe-enabled computer with one available PCIe slot or higher (x4, x8, x16)
Additional slot on your computer case if installing and using the header bracket
Operating System: Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | 14 to 176°F / -10 to 80°C | | Relative Humidity | 10 to 90% | | Dimensions | 4.7 x 4.3 x 0.7" / 120 x 109 x 18 mm | | Weight | 3.7 oz / 105 g | | | | Package Weight | 0.41 lb | | Box Dimensions (LxWxH) | 7.4 x 5.5 x 1.3" |
