Product description The StarTech 7.1 USB Audio Adapter External Sound Card creates a connection with a computer's USB port to your speakers to deliver 7.1-channel surround sounds. This external adapter lets you add high-quality audio to your notebook or desktop without having to open the system for installation. It supports analog as well as digital audio and has 44.1 and 48 kHz sampling rates for both playback and recording. Additionally, StarTech has equipped it with onboard buttons so you can easily control the volume.

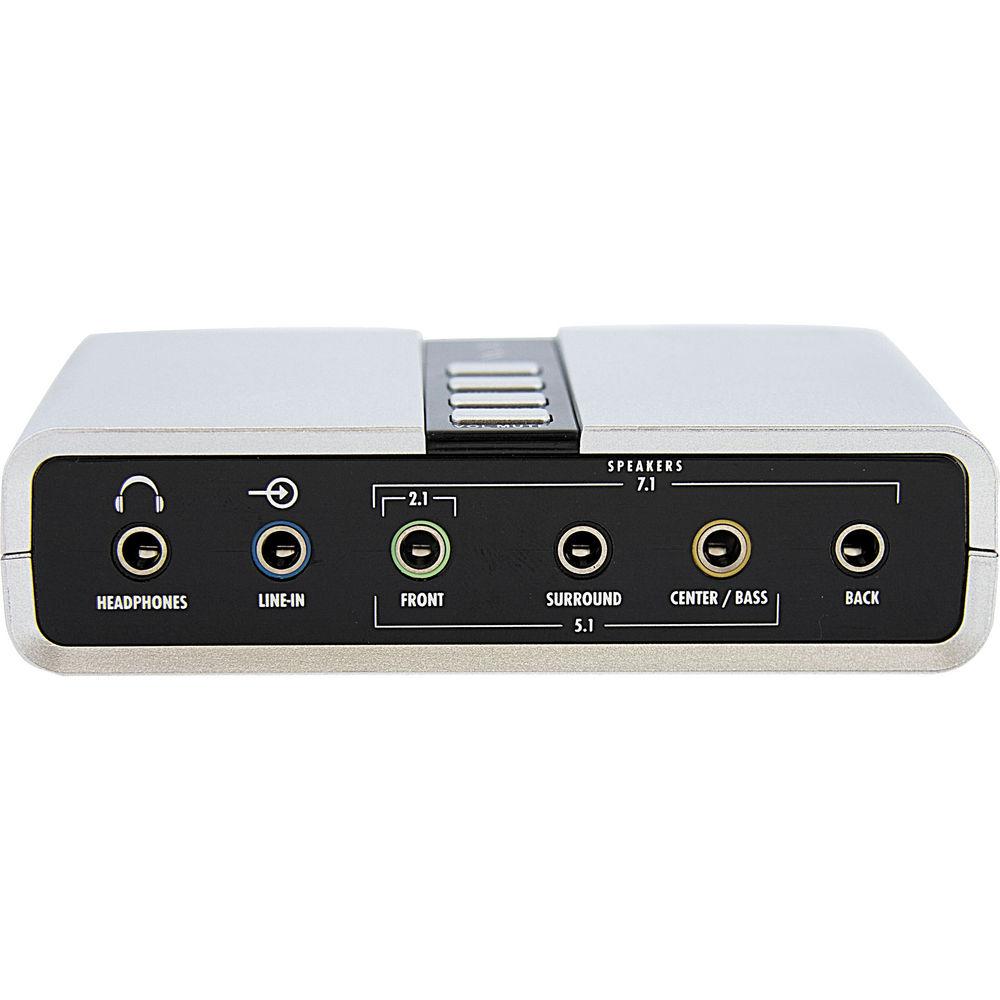

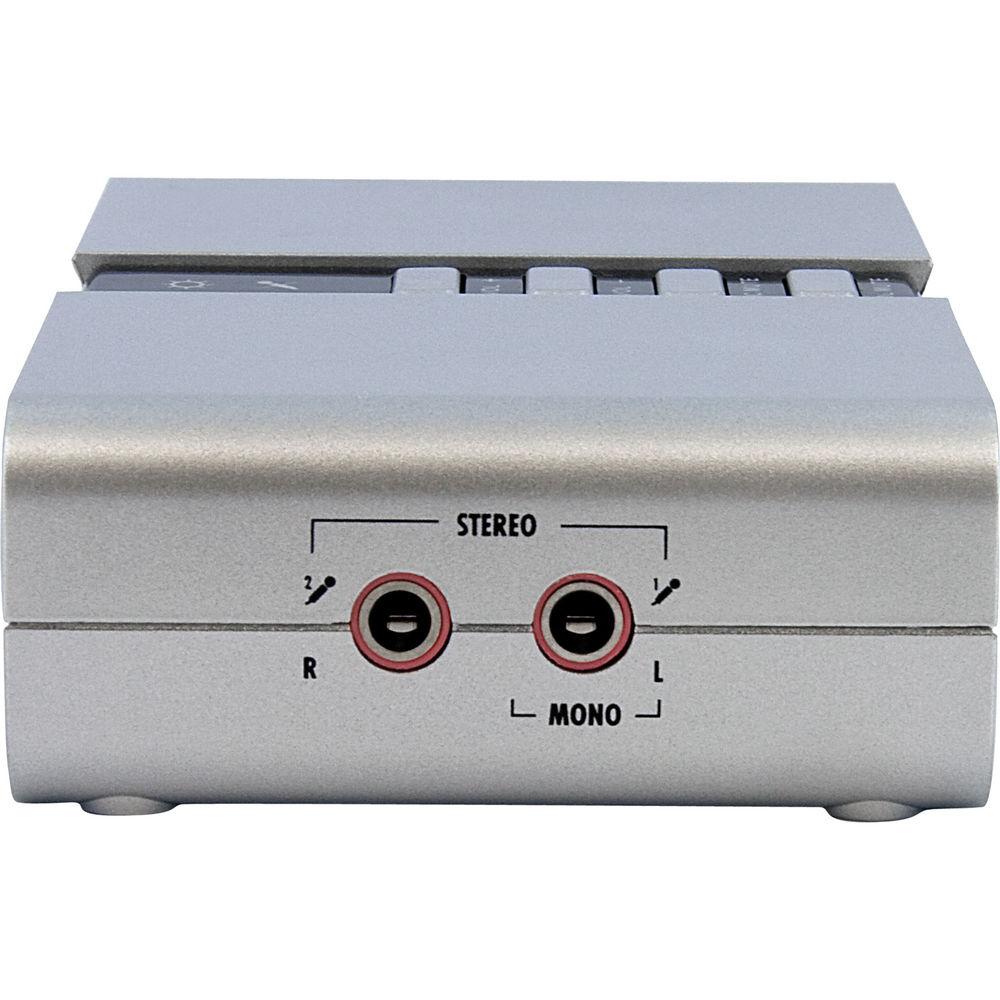

This external sound card sports 3.5mm output connectors that provide front, surround, rear, and center/bass connectivity. It comes with a mic right-channel jack and a mic left-channel jack, letting you record sounds that have depth with two microphones. Included along with the adapter are a USB cable and an installation CD for a hassle-free experience. - General
-
- Optical S/PDIF input (pass through) and output Dual microphone input
- Built-in volume control buttons
- Full-duplex recording and playback
- Supports 48 and 44.1 kHz sample rate for recording and playback
- High speed USB 2.0 compliant host interface with transfer rates up to 480 Mb/s
- Full 7.1 audio output support in a compact and portable external sound card
- Connect to external speakers through 3.5mm mini-jacks or optical S/PDIF
- Applications
-
- Add 7.1 audio support to laptop or small form factor system with no internal expansion options
- Replace or upgrade a computer's existing integrated audio
- Connect your computer to a home theater audio receiver through optical S/PDIF
- Certifications & Reports
- CE and FCC compliant

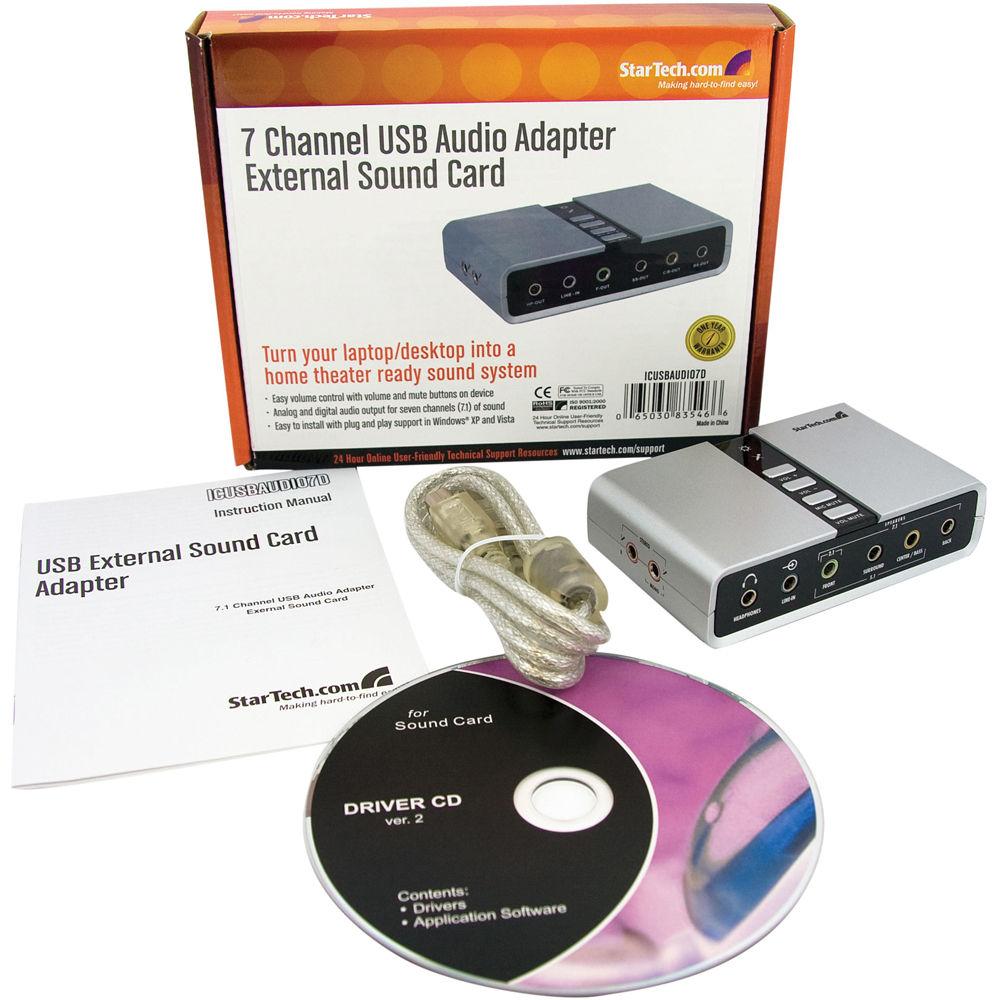

UPC: 065030835466 In the Box StarTech 7.1 USB Audio Adapter External Sound Card USB Cable Installation CD Limited 2-Year Warranty Brochure PDF 139.3kbzzvfrdtetbubxxdrtvabs More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 7.1 USB Audio Adapter External Sound Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

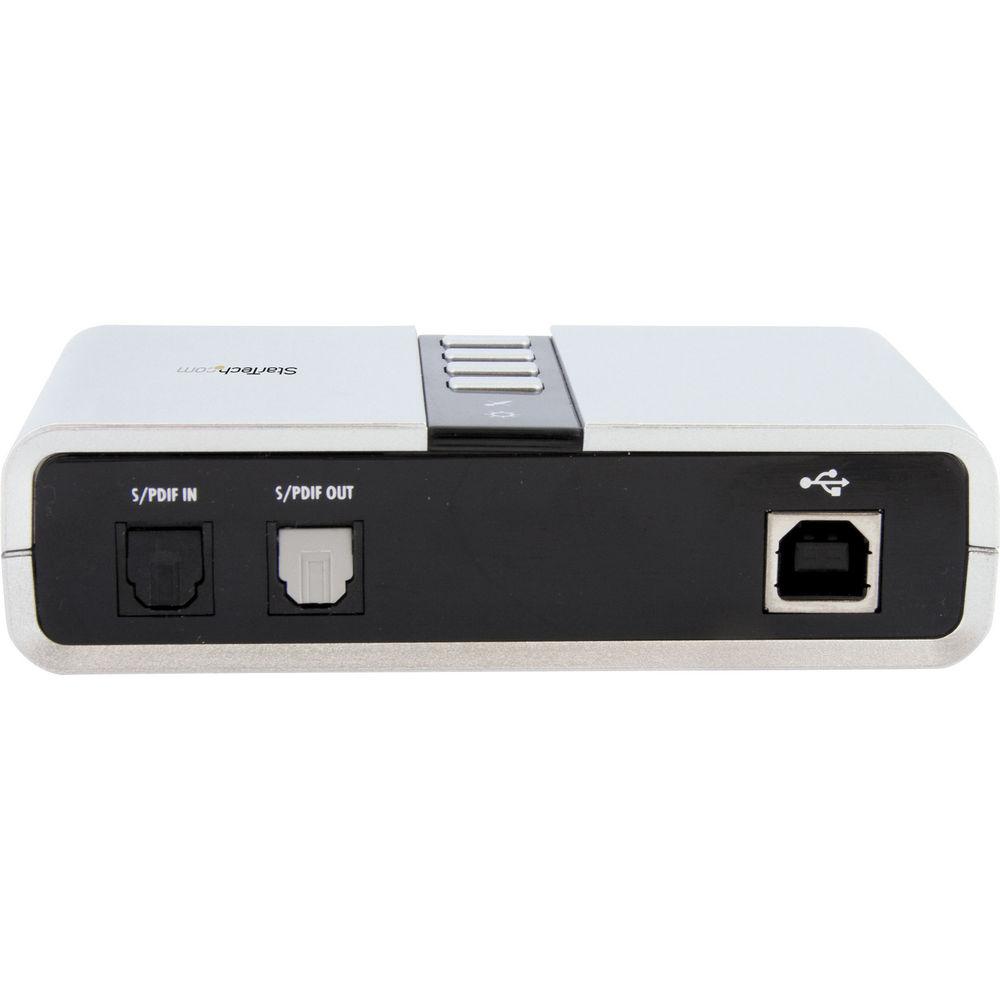

Technical parametersStarTech ICUSBAUDIO7D Specs | | | Chipset ID | C-Media: CM6206 | | Sampling Rate | 48 / 44.1 kHz, 16-bit | | System Requirements | USB port | | Bus Interface | USB 2.0 | | Buttons | Volume up, volume down, volume mute, mic mute | | | | Connector Type | 1 x USB Type-B (4-pin) female | | External Ports | 2 x Toslink (SPDIF; Optical) female (pass-through input port supports only two-channel audio)
8 x 3.5mm mini-jack (headphone, line-in, front speaker, surround speaker, rear speaker, center/bass, mic 1, mic 2) | | | | Audio | 8 16-bit DAC channels (7.1 surround sound)
Supports 44.1 and 48 kHz sampling rates for both playback and recording | | | | OS Compatibility | Windows 10 (32/64), 8/8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000
Windows Server 2008 R2, 2003 (32/64) | | | | LED Indicators | Microphone mute and Power/Activity | | | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | 32 to 158°F (0 to 70°C) | | Humidity (Non-condensing) | 20 to 80% RH | | | | Dimensions (L x W x H) | 3.9 x 2.4 x 1.0" (100.0 x 60.0 x 25.0 mm) | | Weight | 3.5 oz (100.0 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.0 x 5.7 x 1.1" |
