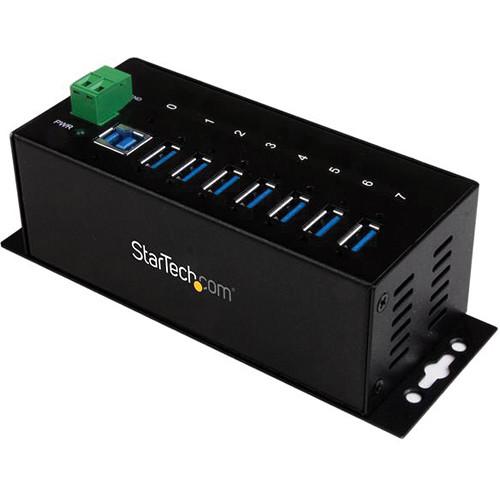

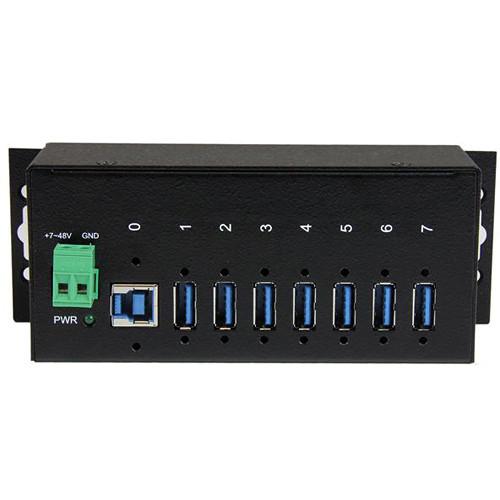

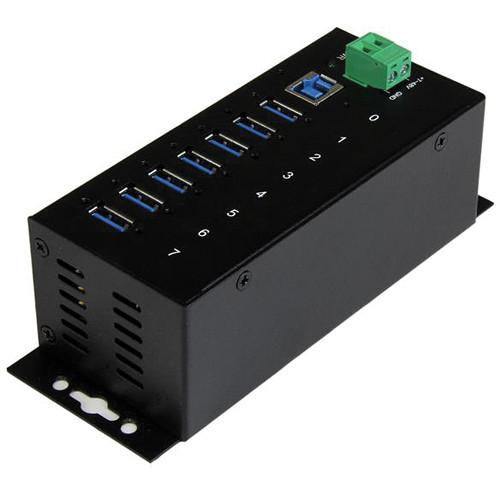

Product description The black 7-Port Industrial USB 3.0 ESD and Surge Protection Hub from StarTech is designed to provide reliable performance in extreme operating environments. This industrial grade hub features a rugged, metal-housing chassis which can be securely mounted to most surfaces and walls. The hub includes optional DIN rail mounts that can be used for equipment rack installations. It allows you to expand your connectivity options by adding seven external USB 3.0 ports to your computer. It also increases your everyday productivity by gaining powerful and convenient access to your external hard drives, printers, mobile devices, and other peripherals. It protects your connected devices with 15kV ESD protection and 350W surge protections. - Reliable Performance in Industrial Environments
- The industrial grade hub features a rugged, metal housing, and an extended operating temperature range. Its wide range 7 to 48 VDC terminal block input gives you the flexibility to power the hub as required, based on your power input capabilities. It also supports an extended operating temperature range - 0 to 70°C - to ensure reliable performance even in the demanding factory, and industrial environments. The rugged hub also offers surge and ESD protection to each USB port, which can help safeguard your investments by preventing damage to your connected devices.
- Secure and Versatile Installation on DIN Rails or Surfaces
- This wall-mountable USB 3.0 hub can be securely mounted to surfaces, under desks, and in other high traffic areas where there is concern that USB connections may become unplugged. It also includes an optional DIN rail mounts for use with equipment rack installations.
- Transfer Speeds
- Compliant with SuperSpeed USB 3.0, this industrial hub supports 5 Gb/s bandwidth. It is also backward compatible with USB 2.0 and 1.0 x specifications, supporting older USB peripherals or legacy systems that lack USB 3.0 capabilities.

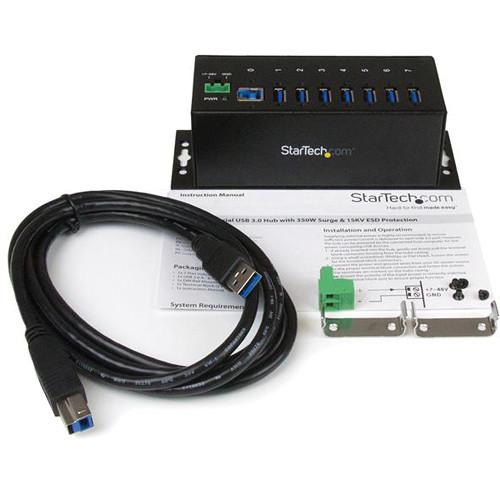

UPC: 065030860352 In the Box StarTech 7-Port Industrial USB 3.0 ESD and Surge Protection Hub (Black) 7 x Port Industrial USB 3.0 Hub 1 x USB 3.0 A - B Cable 1 x DIN Rail Mounting Kit 1 x Terminal Block (2-Wire) Limited 2-Year Warranty More from Manufacturer suwauszff Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 7-Port Industrial USB 3.0 ESD and Surge Protection Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech ST7300USBME Specs | | | Connector 1 | 7 x 9-pin SuperSpeed USB 3.0 A female | | Connector 2 | 1 x 9-pin SuperSpeed USB 3.0 B female
1 x 2-wire terminal block | | | | Bus Type | USB 3.0 | | Chipset ID | Genesys Logic GL3520 | | Interface | USB 3.0 | | Ports | 7 | | Enclosure Type | Steel | | | | Maximum Data Transfer Rate | 5 Gb/s | | Surge Protection | 15 kV ESD protection
350 W surge protection | | Type and Rate | USB 3.0: 5 Gb/s | | | | OS Compatibility | OS Independent (no additional drivers or software required) If connected to a USB 2.0 host port, performance may be limited
This product is intended for use with terminal block power only. Standard AC adapter not available | | System and Cable Requirements | Available USB 3.0 port | | Certifications | CE, FCC, RoHS | | | | LED Indicators | 1 x Power (green) | | | | Input Voltage | 7 to 48 VDC | | Power Source | Terminal block | | | | Humidity | 5 to 95% RH | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Dimensions (L x H x W) | 5.7 x 1.8 x 2.1" (145.0 x 45.0 x 54.0 mm) | | Weight | 11.5 oz (325 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 11.6 x 7.6 x 2.7" |
