User Manual for StarTech 8-Port 1U Rackmount DVI USB KVM Switch Click to enlarge the picture
Contents of the user manual for the StarTech 8-Port 1U Rackmount DVI USB
- Product category: KVM Switches StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech KVM Switches
 |
User manual for the StarTech 8-Port 1U Rackmount DVI USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

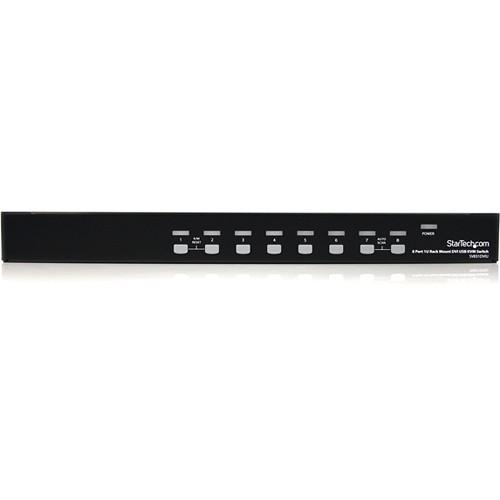

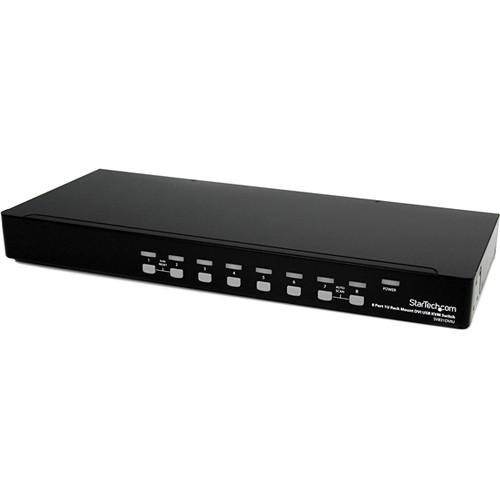

Product description Multi-Monitors: Maximizing Multitasking Read More The black 8-Port 1U Rackmount DVI USB KVM Switch from StarTech lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse, and monitor. The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons. Supporting digital resolutions of up to 1920 x 1200 via DVI or HDMI connection (using DVI to HDMI adapter), the KVM switch provides high resolution recommended for newer displays, allowing you to take full advantage of your monitor/screen capability. A perfect addition to any server room or software test lab, this rugged switch can be rack-mounted into 1U of cabinet space. - Resolution 1920 x 1200 DVI connections support control of DVI or HDMI systems (with adapter)
- Supports wireless and combo style mouse and keyboard sets for added flexibility
- Can be used with DVI-to-HDMI adapters to connect HDMI-based systems
- Rugged, solid steel rack-mountable case offers durability even in harsh environments
- OS independent (no software or drivers required)
- Front panel push-buttons and hotkey functions allow for easy switching
- Auto-scan function cycles through computers sequentially
- Connects to USB-based computer systems
- USB console interfaces for keyboard and mouse
- Supports Mac and Sun keyboard mapping; keyboard states are automatically saved and restored when switching computers
- Supports Microsoft IntelliMouse (Pro)
- Applications
- Ideal for software development and QA test labs with multiple PCs and platforms connected to a single console
Single console administration of your co-location/ISP facility
Create a streamlined access solution in your data center or server farm
Great for PC test/burn-in computer control, saving the desk space required for multiple monitors, keyboards, and mice

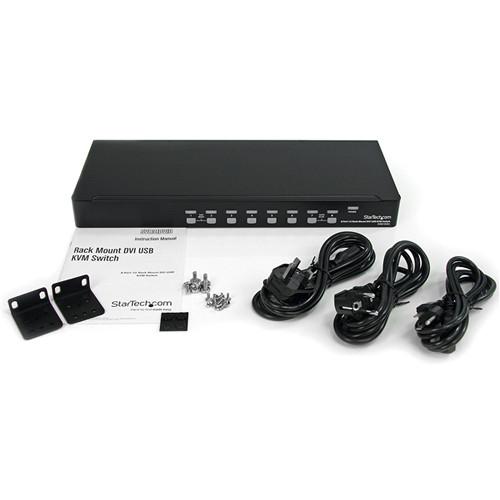

Perfect for manufacturing line computer control, simplifying access to multiple systems UPC: 065030842303 In the Box StarTech 8-Port 1U Rackmount DVI USB KVM Switch (Black) 1 x Set of Rackmount Brackets 3 x Power Cords (NA/EU/UK) Limited 3-Year Warranty Brochure PDF 199.2kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 8-Port 1U Rackmount DVI USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

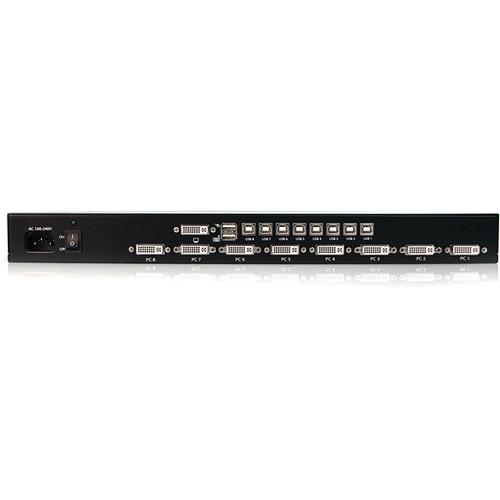

Technical parametersStarTech SV831DVIU Specs | | | KVM Ports | 8 | | PC Interface | USB | | PC Video Type | DVI | | Rackmountable | Yes | | Rack Height | 1U | | | | Console Interfaces | 1 x DVI-I (29-pin) female
2 x USB A (4-pin) female | | Host Connectors | 8 x DVI-I (29-pin) female
8 x USB B (4-pin) female | | | | MTBF | 45,254 hours | | DVI Support | Single link | | Maximum Analog Resolution | 1920 x 1200 | | Maximum Number of Users | 1 | | Port Selection | Push-buttons and hotkeys | | | | OS Compatibility | Operating system independent and transparent to all applications | | | | Plug Type | M | | Input Voltage | 110 ~ 240 VAC | | Input Current | 1.8 A | | Output Voltage | 12 VDC | | Output Current | 4 A | | Center Tip Polarity | Positive | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0~80% RH | | | | Enclosure Type | Steel | | Compliance | CE, FCC, and RoHS Compliant | | Maximum Cable Length | 15' (4.6 m) | | Dimensions (L x W x H) | 7.1 x 17.2 x 1.7" (180 x 436.8 x 43.1 mm) | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 8.7 lb | | Box Dimensions (LxWxH) | 23.3 x 10.6 x 3.6" |
