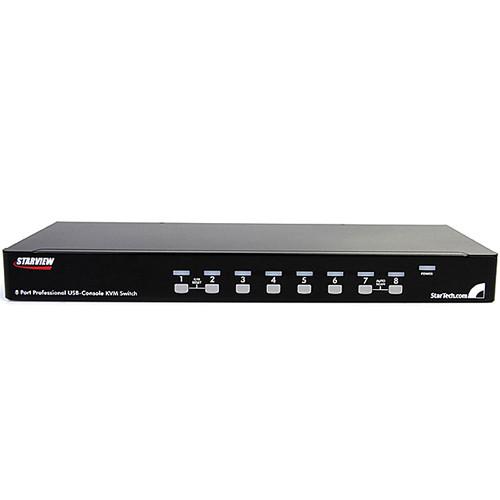

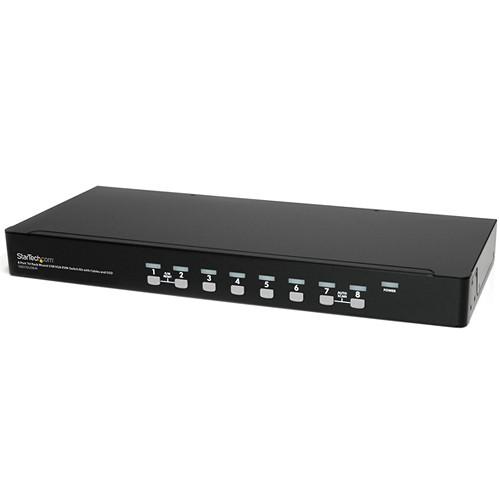

Product description Multi-Monitors: Maximizing Multitasking Read More cezzwafcxbsbrzbayfvwtqzqdy The black 8-Port 1U Rackmount USB KVM Switch Kit with OSD and Cables from StarTech offers a KVM switch that includes all of the cables and accessories required to connect 8 servers or PCs right out of the box, making setup convenient and simple. The USB KVM switch allows you to control up to 8 USB-connected computers from a single keyboard, mouse, and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display. A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch. - The KVM Switch Kit includes the USB/VGA KVM cables to connect 8 servers and PCs, making setup convenient and simple
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; extracts the keyboard strokes from the USB connection, ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in most environments
- Applications:
- Useful in software QA labs where testing is being done across multiple platforms
Great for PC test/burn-in computer control
Central control for multiple systems in a data center
Effectively manage a server farm from a single console with cascaded units
Manufacturing line computer control and management - OSD security option allows selected KVM ports to be password-protected from unauthorized use
- Auto-scan function automatically switches between connected PCs sequentially
- Cascade configuration expands system capability
- Hotkey functions allow easy computer access
- Identifies and selects computers by the names assigned
- Plug-and-play system configuration

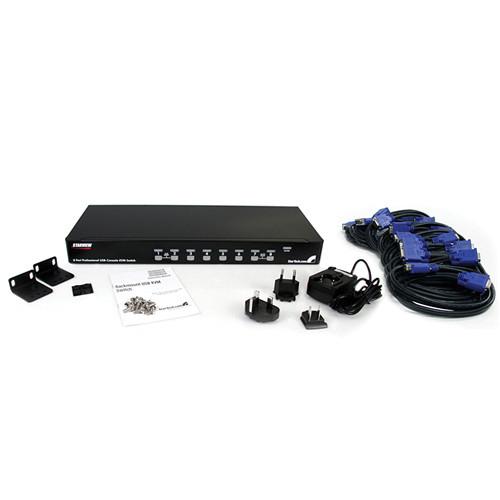

UPC: 065030843331 In the Box StarTech 8-Port 1U Rackmount USB KVM Switch Kit with OSD and Cables (Black) 2 x Mounting Brackets 8 x 6' (1.8 m) 2-in-1 USB/VGA KVM Cables 1 x Power Adapter Limited 3-Year Warranty Brochure PDF 130.3kbcezzwafcxbsbrzbayfvwtqzqdy More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 8-Port 1U Rackmount USB KVM Switch Kit with OSD and Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

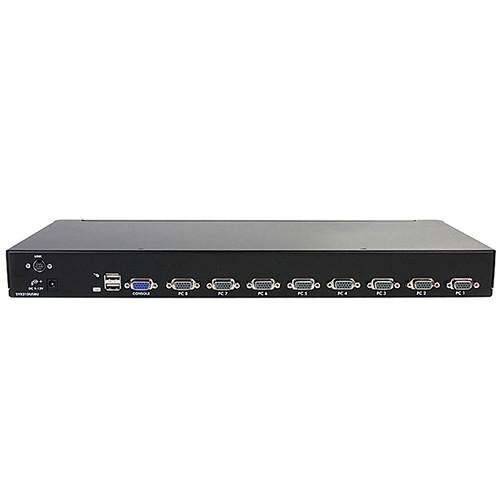

Technical parametersStarTech SV831DUSBUK Specs | | | KVM Ports | 8 | | PC Interface | USB | | PC Video Type | VGA | | Rackmount | Yes | | Rack Height | 1U | | Daisy Chain | Yes | | Connectors | Console Interfaces: 1 x VGA (15-pin; high density D-Sub) female
2 x USB A (4-pin) female
Host Connector: 8 x VGA (15-pin; high density D-Sub) female | | | | Maximum Analog Resolution | 1920 x 1440 at 60 Hz (1920 x 1200 at 60 Hz - wide screen) | | Widescreen Supported | Yes | | Maximum Number of Users | 1 | | Port Selection | Push button, hotkeys, and OSD (On Screen Display) | | | | LED Indicators | 1 x green - power
8 x green - PC online
8 x red - PC selected | | | | Input Voltage | 110 ~ 240 AC | | Output Voltage | 12 DC | | Output Current | 1 A | | Center Tip Polarity | Positive | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 0~80% | | Compliance | CE, FCC, and RoHS | | | | Enclosure Type | Steel | | Dimensions (W x H x D) | 17.1 x 1.8 x 7.1" (435 x 45 x 180 mm) | | Weight | 4.8 lb (2.2 kg) | | | | Package Weight | 10.7 lb | | Box Dimensions (LxWxH) | 23.0 x 10.7 x 4.8" |
