User Manual for StarTech 8-Port PCIe Low-Profile Serial Adapter Card Click to enlarge the picture
Contents of the user manual for the StarTech 8-Port PCIe Low-Profile Serial Adapter
- Product category: Serial RS-422/RS-232 Cards StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Serial RS-422/RS-232 Cards
 |
User manual for the StarTech 8-Port PCIe Low-Profile Serial Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

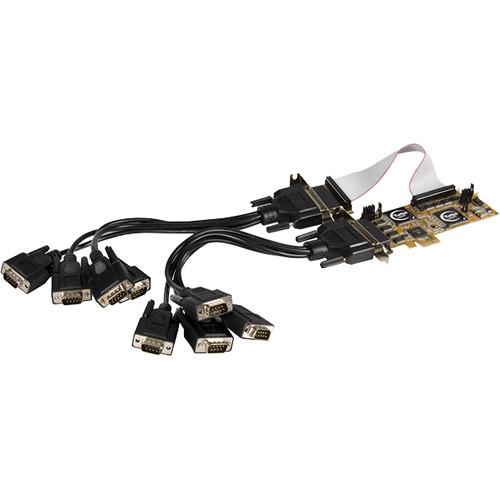

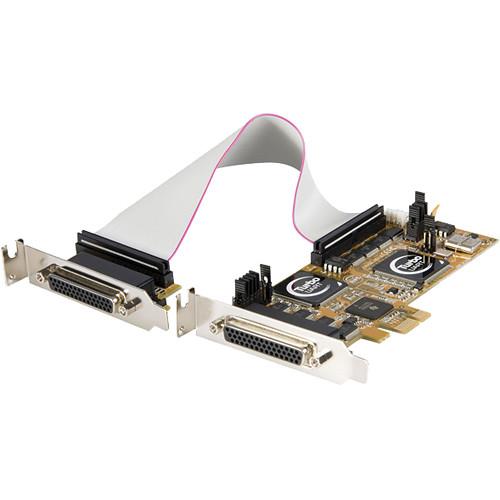

Product description The 8-Port PCIe Low-Profile Serial Adapter Card from StarTech adds 8 RS-232 serial ports to your computer via a single low-profile PCIe slot with data rates up to 921 kb/s. It can be used with a broad variety of serial peripherals, including printers, scanners, industrial controls, and more. The adapter includes 2 breakout cables, each with 4 DB-9 connectors for a total of 8 ports. The serial adapter card is designed to fit in small/micro form factor computer cases. It also includes 2 standard profile brackets for compatibility with full size cases. - Includes 2 breakout cables, helping to avoid crowded connections
- Pre-configured with low-profile brackets and comes complete with 2 standard profile brackets for compatibility with almost any computer case
- Offers eight RS-232 DB9 connections using a single PCIe slot
- Two high-performance 16C950 UART channels
- Maximum data transfer rate up to 921 kb/s
- Compliant with PCIe specification, Revision 1.0a
Applications - Manufacturing (CNC machinery, process control equipment, bar code scanners, and serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, and scales)
- Consumer (modems, PDAs, digital cameras, and printers)
- Security (UPS control, access key panels, video cameras, card readers, and modems)
- Casino (video lottery terminals and slot machines)
- Environmental control (lighting, temperature, and clocks)
- Healthcare (patient monitoring equipment, nurses' stations, and modems)
- Hotel front desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, and credit/debit card reader)
- Hospitality/restaurant (credit card/debit card reader, and serial printers)

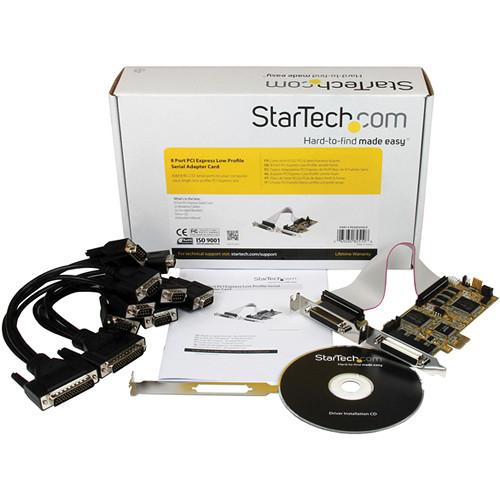

UPC: 065030825108 In the Box StarTech 8-Port PCIe Low-Profile Serial Adapter Card 2 x Breakout Cables 2 x Standard Brackets 1 x Driver CD Limited Lifetime Warranty Guides & Manuals atrurctbqdrfvcxbqxdvxdwcz More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 8-Port PCIe Low-Profile Serial Adapter Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the StarTech 8-Port PCIe Low-Profile Serial Adapter Card can be downloaded in PDF format at the link stated below.
Technical parametersStarTech PEX8S950LP Specs | | | Interface | Serial | | Ports | 8 | | Bus Type | PCIe | | Card Type | Low-profile (SP bracket included) | | Port Style | Dongle (included) | | Chipset ID | PLX/Oxford - OXmPCI952-LQAG | | | | Connector Type | 1 x PCIe x1 male | | External Ports | 8 x DB-9 (9-pin; D-Sub) male | | | | Max Baud Rate | 921.6 Kb/s | | Serial Protocol | RS-232 | | Data Bits | 5, 6, 7, 8, 9 | | FIFO | 128 bytes | | Flow Control | RTS/CTS, XON/XOFF | | Parity | None, Even, Odd, 1, and 0 | | Stop Bits | 1, 1.5, and 2 | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000, 98SE, CE 5.0
Windows Server 2012, 2008 R2/2003 (32/64-bit)
Linux 2.4.x/2.6.x | | | | Humidity | 5~95% RH | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Certifications | CE, FCC, and RoHS compliant | | | | Cable Length | 11.0" (279.4 mm) | | Dimensions (L x W x H) | 6.2 x 0.8 x 3.1" (157.4 x 20.3 x 78.7 mm) | | Weight | 19.7 oz (558.4 g) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 11.6 x 7.5 x 2.6" |
