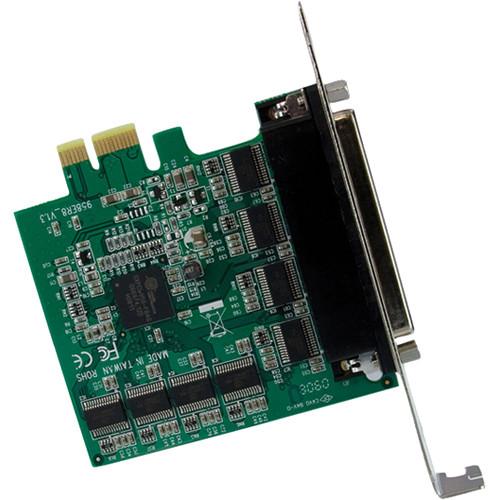

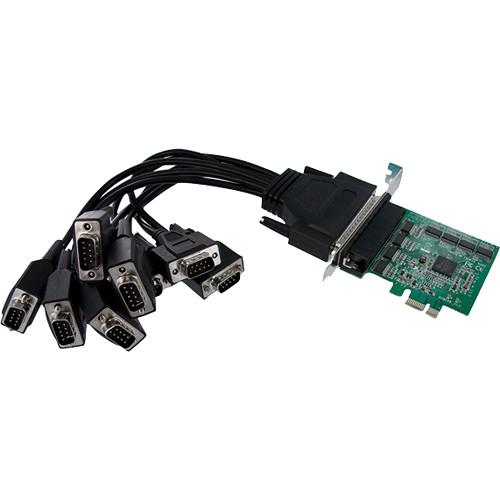

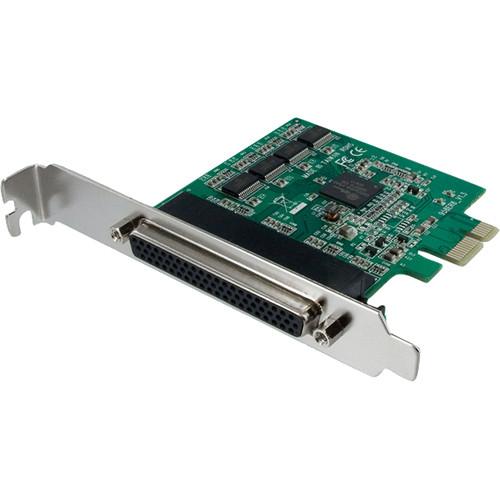

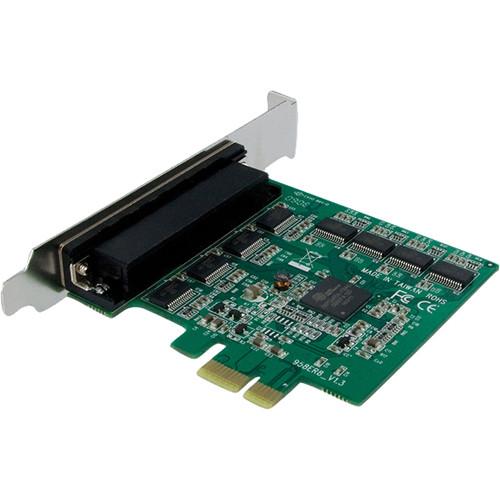

Product description The 8-Port RS-232 Serial PCIe Native Adapter Card with 16950 UART from StarTech allows you to turn a PCIe slot into eight RS-232 (DB9) serial connections using the included breakout cable. The serial card is based on a native single-chip design that harnesses the full capability of PCIe to provide optimum reliability and speed, while reducing the load applied to the CPU by as much as 48% over conventional serial cards. The RS-232 card is compatible with a broad range of operating systems, including Windows, Linux, and Mac OS for easy integration into mixed environments. - 8 high-speed RS-232 serial ports with data transfer rate up to 460.8 kb/s
- 128 bytes deep FIFO per transmitter and receiver
- Automated in-band software flow control using programmable Xon/Xoff in both directions
- Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND
- Compliant with PCIe base specification revision 1.0a
- High-performance dual-channel Oxford 950 UART provides reliability, speed, and broad OS compatibility
- Native single-chip, single-lane PCIe design reduces overall load on the CPU
- The included breakout dongle cable helps to reduce connection clutter
Applications - Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, and label printers
- POS retail applications in grocery stores and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
- Bank teller workstations in either full profile or low-profile versions to control serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, and pen pads
- Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, and more
- Used to control multiple surveillance / security cameras in a parking structure, an office building, and more

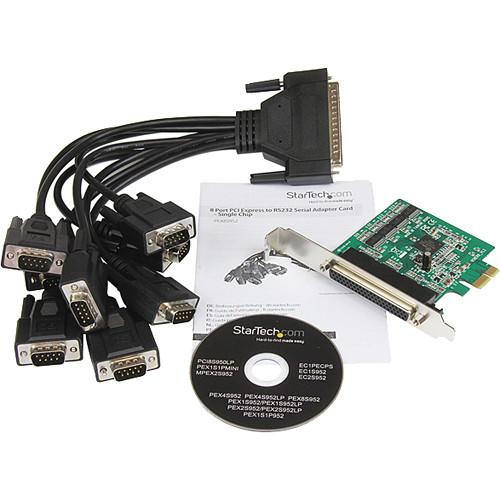

UPC: 065030834438 In the Box StarTech 8-Port RS-232 Serial PCIe Native Adapter Card with 16950 UART 8-Port DB9 Breakout Cable Driver CD Limited Lifetime Warranty Brochure PDF 209.1kbvecwcvtwszasvawt More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 8-Port RS-232 Serial PCIe Native Adapter Card with 16950 UART in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech PEX8S952 Specs | | | Interface | Serial | | Ports | 8 | | Bus Type | PCIe | | Card Type | Standard profile | | Port Style | Dongle (included) | | Chipset ID | PLX/Oxford - OXPCIe958 | | | | Connector Type | 1 x PCIe x1 male | | External Ports | 8 x DB-9 (9-pin; D-Sub) male | | | | Max Baud Rate | 460.8 Kb/s | | Serial Protocol | RS-232 | | FIFO | 128 bytes | | | | OS Compatibility | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), XP Embedded, CE 4.2/5.0/6.0, 2000, ME, 98SE
Windows Server 2008 R2, 2003 (32/64-bit)
Linux | | | | Humidity | 5~85% RH | | Operating Temperature | 14 to 176°F (-10 to 80°C) | | Storage Temperature | -4 to 212°F (-20 to 100°C) | | Certifications | CE, FCC, and RoHS compliant | | | | Dimensions (L x W x H) | 3.5 x 2.6 x 0.8" (88.9 x 66.0 x 20.3 mm) | | Weight | 2.0 oz (56.6 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.425 x 5.984 x 2.126" |
