User Manual for StarTech 9-Port Thunderbolt 3 Docking Station Click to enlarge the picture
Contents of the user manual for the StarTech 9-Port Thunderbolt 3 Docking Station
- Product category: Docking Stations & Port Replicators StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Docking Stations & Port Replicators
 |
User manual for the StarTech 9-Port Thunderbolt 3 Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

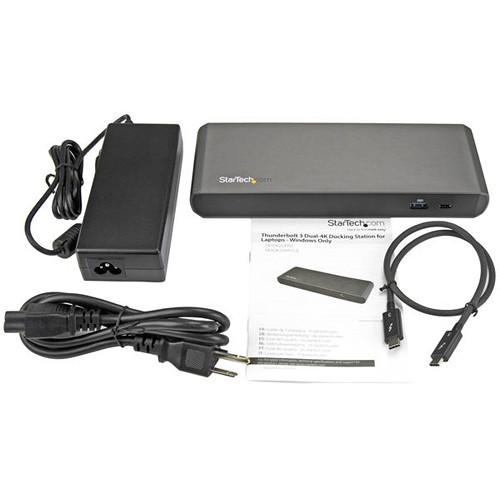

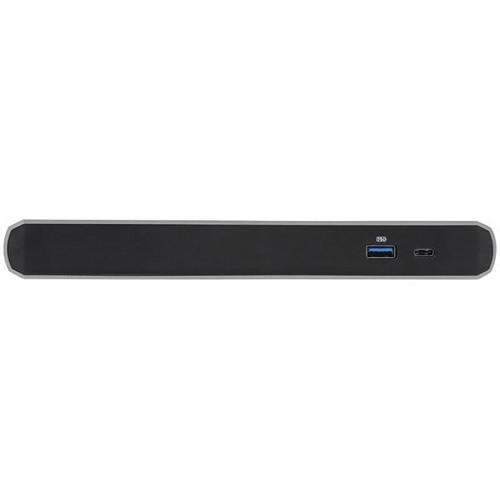

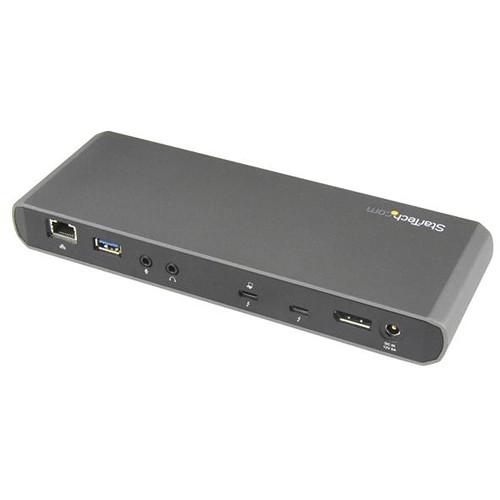

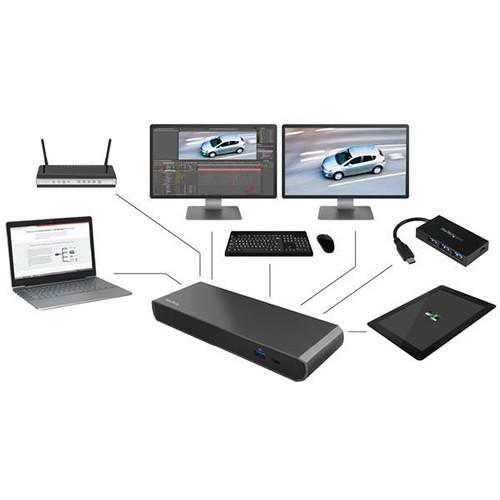

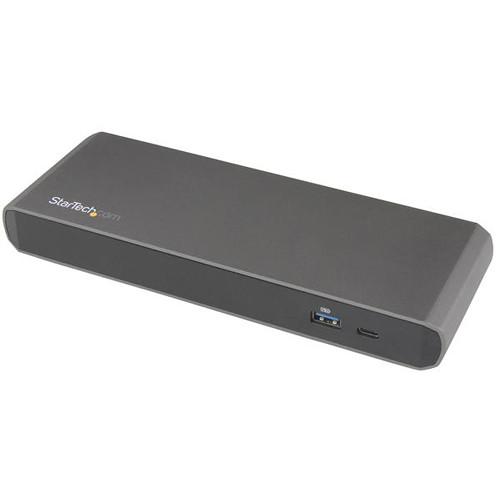

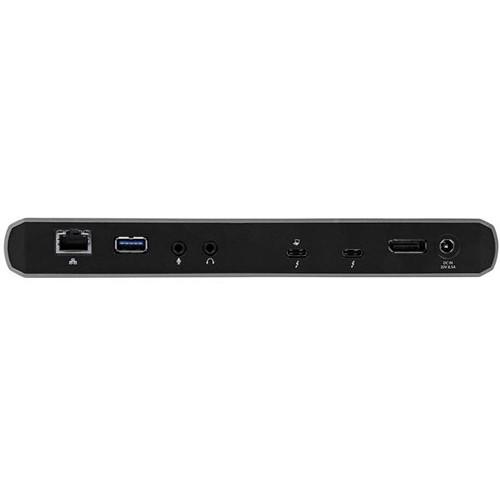

Product description Add additional connectivity to your Thunderbolt 3-equipped laptop with the 9-Port Thunderbolt 3 Docking Station from StarTech. This multi-port dock has two Thunderbolt 3 ports, one DisplayPort, one USB 3.0 Type-C port, two USB 3.0 Type-A ports, two 3.5mm audio jacks, and a RJ45 port. By using its Thunderbolt 3 port and DisplayPort connections, you'll be able to connect two displays with resolutions of up to 4096 x 2160 for enhanced multitasking or larger viewing. This adapter supports power delivery up to 85W, and one of the USB 3.0 Type-A ports supports fast charging. Furthermore, you can use its 3.5mm jacks to connect audio devices and the RJ45 port for a wired connection to the Internet. UPC: 065030868426 In the Box StarTech 9-Port Thunderbolt 3 Docking Station Thunderbolt 3 Cable USB Type-C to DisplayPort Cable Power Adapter 2 x Power Cables Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech 9-Port Thunderbolt 3 Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech TB3DK2DPPD Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C
1 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DisplayPort | | Audio | 2 x 1/8" / 3.5 mm TRS | | Memory Card Slots | None | | | | System Connection | 1 x Thunderbolt 3 Female | | | | Chipset | Intel Alpine Ridge DSL6540
Fresco Logic FL1100EX
Texas Instruments PCM2912A
Intel WGI210AT | | Maximum Resolution Supported | 4096 x 2160 | | Data Transfer Rate | 40 Gb/s Thunderbolt 3
10 Gb/s USB 3.1 Gen 2 | | Operating System Support | Windows, macOS/OS X | | UASP Support | Yes | | | | Power Source | AC Adapter | | Maximum Power Consumption | 170 W | | Total Current Output | 8.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 A | | DC Input Power | 20 VDC | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Cable Length | 20.5" / 520 mm | | Dimensions | 1.1 x 8.7 x 3.1" / 27 x 220 x 80 mm | | Weight | 15.9 oz / 450 g | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 9.7 x 5.7 x 3.5" |
