User Manual for StarTech Bi-Directional SATA IDE Adapter Converter Click to enlarge the picture
Contents of the user manual for the StarTech Bi-Directional SATA IDE Adapter Converter
- Product category: Internal Hard Drive Accessories StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Internal Hard Drive Accessories
 |
User manual for the StarTech Bi-Directional SATA IDE Adapter Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

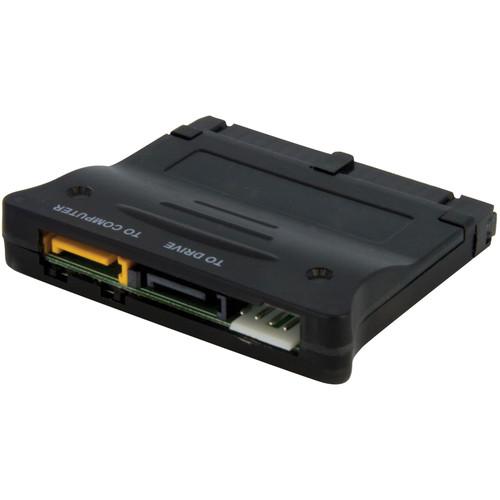

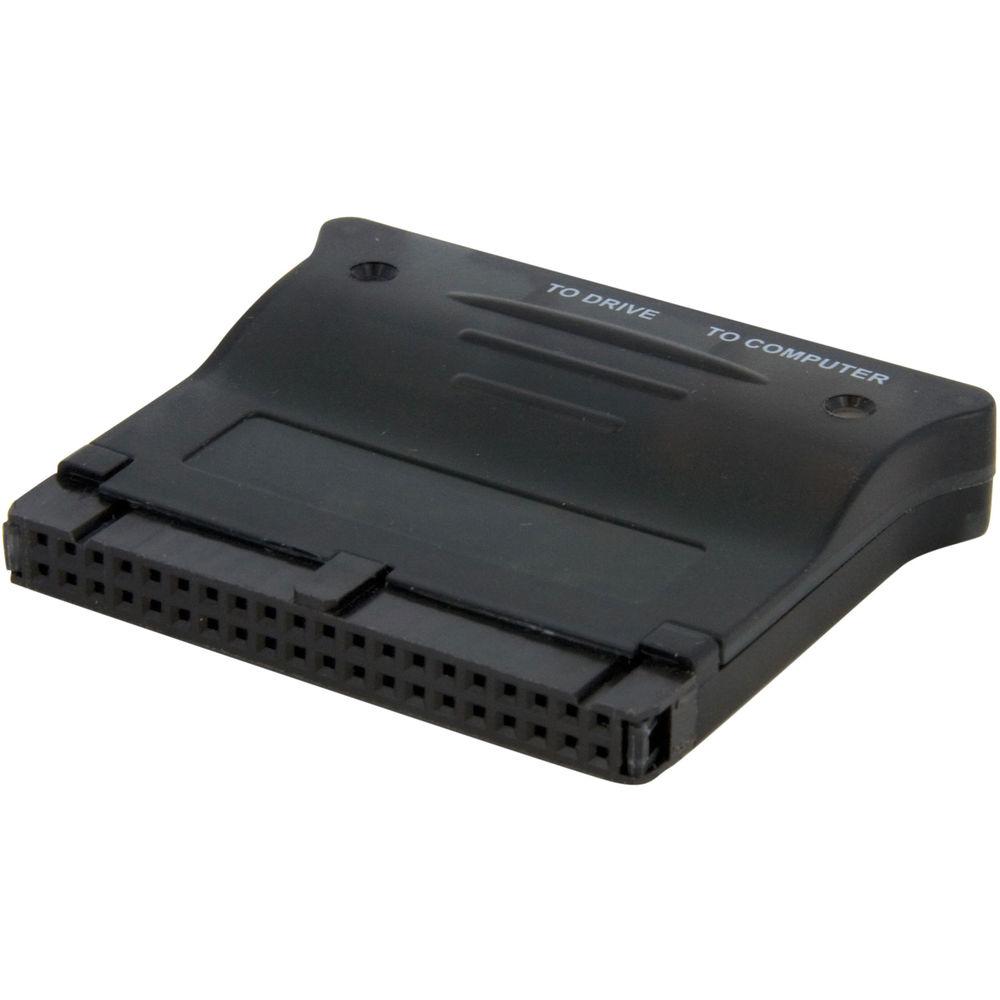

Product description The black Bi-Directional SATA/IDE Adapter Converter from StarTech lets you connect a serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port. It is a cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives. The SATA/IDE adapter eliminates the expense of having to purchase a controller card, while saving the expansion slot that would be required for card installation. In addition to the SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, thus making it easy to retrieve old files from a previous system. - Bi-directional support for IDE to SATA or SATA to IDE communication
- Compatible with PATA (IDE) 100/133 MB/s hard devices
- Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gb/s) devices
- Supports SATA/IDE ATAPI devices, such as CD/DVD optical drives
- Fully compliant with serial ATA 1.0a specifications, with transfer rates up to 1.5 Gb/s
- Compatible with master/slave/cable. Select modes for IDE devices
- No driver or software required
Applications - Connect newer SATA drives to an older motherboard with only IDE support
- Connect an old IDE drive to a new SATA only motherboard to recover the data
- Technicians who regularly need to work with both types of drives, across different types of systems

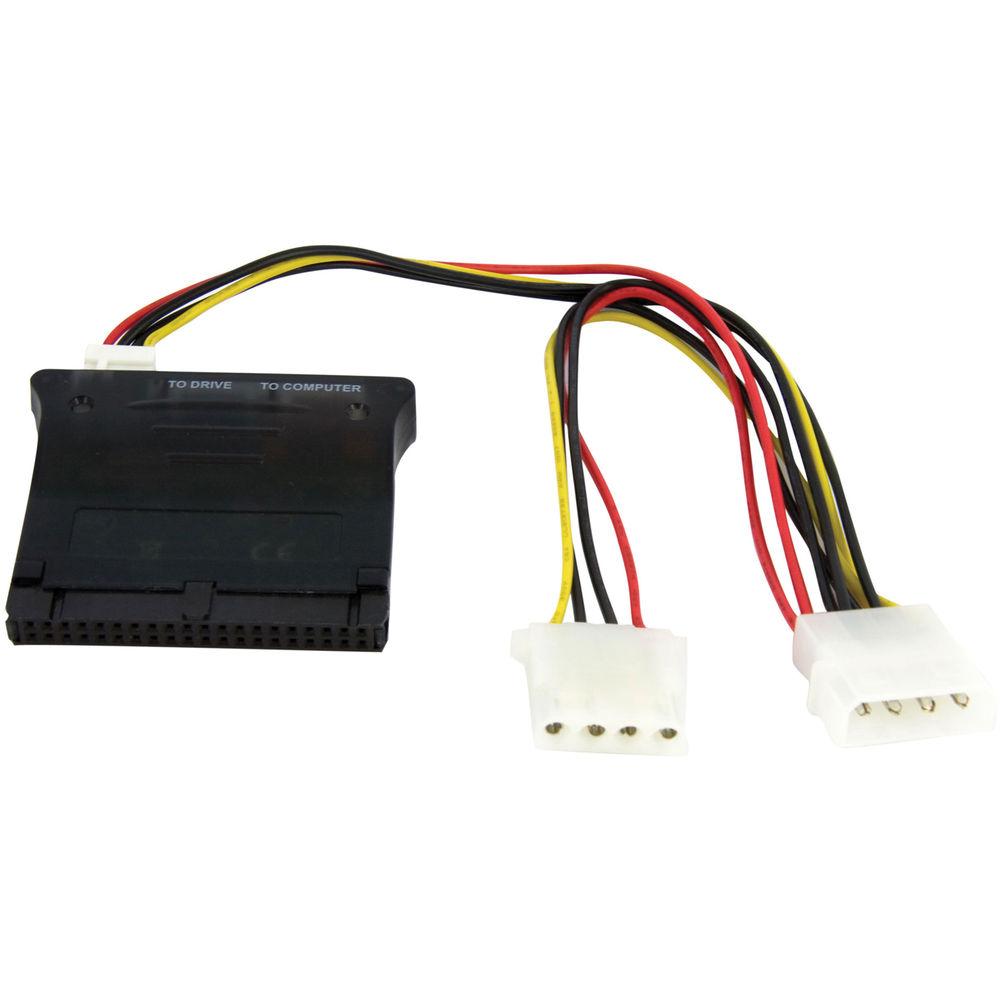

UPC: 065030836982 In the Box StarTech Bi-Directional SATA/IDE Adapter Converter (Black) SATA Cable SP4 to Dual LP4 Y Power Adapter Limited 2-Year Warranty Brochure PDF 116.7kbvbzvzsfetyyubwsaqfrasafrxaxzbfs More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Bi-Directional SATA IDE Adapter Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech PATA2SATA3 Specs | Interface | SATA I | | Data Transfer Rate | 1.5 Gb/s | | Connector 1 | IDE (40-pin EIDE/PATA) female | | Connector 2 | SP4 (4-pin small drive power) male | | Connector 3 | SATA (7-pin data) plug | | OS Compatibility | OS independent No software or drivers required | | Number of Drives | 1 | | Enclosure Type | Plastic | | Drive Size | 2.5" and 3.5" | | Compatibility | PATA (IDE) 100/133 MB/s hard devices
SATA revision 1/2/3 (1.5/3.0/6.0 Gb/s) devices | | Chipset ID | Sunplus - SPIF223A | | LED Indicators | HDD Activity: Green
Power: Red | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -40 to 302°F (-40 to 150°C) | | Relative Humidity | 90% | | Compliance | CE, RoHS | | Dimensions (L x W x H) | 2.4 x 2.0 x 0.4" (61.0 x 50.8 x 10.2 mm) | | Weight | 0.7 oz (19.8 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.6 x 5.6 x 1.2" |
