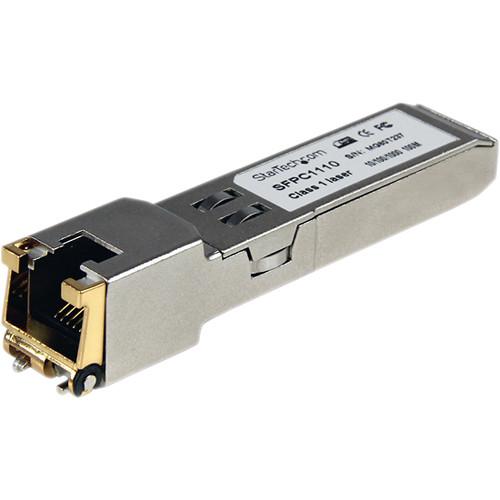

User Manual for StarTech Cisco Compatible Gigabit RJ-45 Mini-GBIC Copper SFP Transceiver Module Click to enlarge the picture
Contents of the user manual for the StarTech Cisco Compatible Gigabit RJ-45 Mini-GBIC
- Product category: Network Transceivers StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Network Transceivers
|
User manual for the StarTech Cisco Compatible Gigabit RJ-45 Mini-GBIC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The Cisco Compatible Gigabit RJ-45 Mini-GBIC Copper SFP Transceiver Module from StarTech adds support for 10/100/1000 Mb/s RJ-45 copper Ethernet connections to networking equipment with spare SFP slots. It is built to comply with MSA (Multi-Sourcing Agreement) standards and offers a cost-effective way to add, replace, or upgrade a copper Ethernet port on your 10/100/1000 Base-T networking equipment. This mini-GBIC features 10/100/1000 Mb/s auto-negotiation at distances up to 328' (100m). It can be installed into any fiber networking devices with an MSA or Cisco compliant SFP port. This copper transceiver is hot-pluggable, allowing you to install the module without interrupting network traffic or requiring a device reboot, thus delivering convenience and scalability. - The Ethernet SFP module supports up to 1.25 Gb/s bi-directional communication
- Auto crossover (MDI / MDI-X) detection
- Compliant with SFP MSA standards, this hot-pluggable module can be installed into any networking device and used to replace defective or damaged SFPs in an MSA compliant or Cisco compliant port
- The transceiver module is a convenient way to add a copper connection to an SFP type switch that would typically be used for fiber SFPs
UPC: 065030846202 In the Box StarTech Cisco Compatible Gigabit RJ-45 Mini-GBIC Copper SFP Transceiver Module Limited 3-Year Warranty Brochure PDF 203.2kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Cisco Compatible Gigabit RJ-45 Mini-GBIC Copper SFP Transceiver Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech SFPC1110 Specs | Ethernet Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab | | Ports | 1 x RJ45 | | Networking Technology | 10BASE-T, 1000BASE-T, 100BASE-TX | | Maximum Networking Distance | 328' / 100 m | | Maximum Data Rate | 1.25 Gbps | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 30 to 70% | | Storage Temperature | -40 to 85°F / -40 to 29.4°C | | Dimensions (L x W x H) | 2.2 x 0.5 x 0.5" / 55.9 x 12.7 x 12.7 mm | | Weight | 0.7 oz / 19.8 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.6 x 3.6 x 1.3" |
