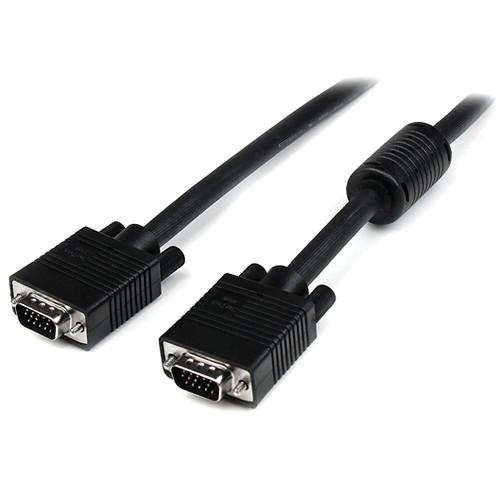

User Manual for StarTech Coax High Resolution HD15 Male to HD15 Male VGA Cable Click to enlarge the picture
Contents of the user manual for the StarTech Coax High Resolution HD15 Male
- Product category: VGA to VGA Cables StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech VGA to VGA Cables
 |
User manual for the StarTech Coax High Resolution HD15 Male contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|
Product description The 50', black Coax High Resolution HD15 Male to HD15 Male VGA Cable from StarTech is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. The durably constructed coaxial VGA video cable eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables. It also delivers superior EMI interference protection by using ferrite cores near the connector ends. - The VGA cable features triple coaxial and twisted-pair wire for crystal clear display

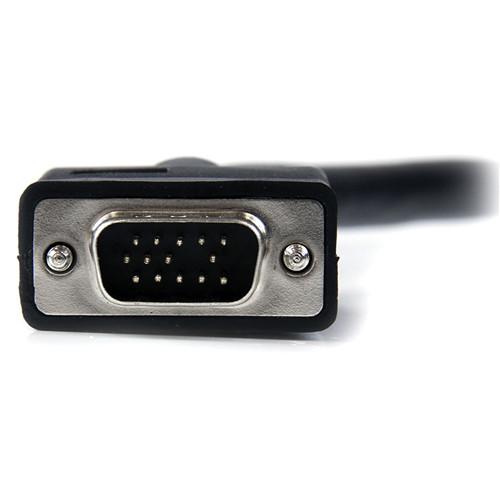

- It's a durably constructed cable, with HD15 connectors
- Impedance matched at 75Ω for full brightness and vibrant picture color from your VGA monitor

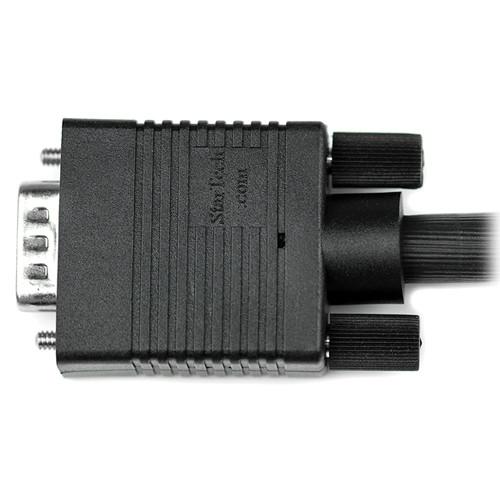

- The VGA connectors feature molded PVC strain relief
Applications - You can now replace a worn-out or missing VGA monitor cable with this coax VGA cable
- It supports high resolution up to 1920 x 1200
- You can connect a high resolution display to a desktop PC or video switch at a distance of up to 50' (15.24m)
UPC: 065030793193 In the Box StarTech Coax High Resolution HD15 Male to HD15 Male VGA Cable (50', Black) 2 x Nuts Lifetime Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Coax High Resolution HD15 Male to HD15 Male VGA Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersStarTech MXT101MMHQ50 Specs | | | Number of Conductors | 14 | | Connector Plating | Nickel | | Cable Jacket Type | PVC (Polyvinyl Chloride) | | Cable Shield Type | Aluminum-Mylar Foil with Braid | | Fire Rating | CMG rated (general purpose) | | Regulatory Approvals | UL2919 | | | | Connector 1 | 1 x VGA (15-pin, high density D-sub) male | | Connector 2 | 1 x VGA (15-pin, high density D-sub) male | | | | Resolution | 1920 x 1200 | | Impedance | 75 Ω | | | | Operating Temperature | 32 to 140°F (0 to 60°C) | | Storage Temperature | -4 to 176°F (-20 to 80°C) | | Humidity | 0 to 80%RH | | | | Wire Gauge | 28 AWG | | Cable Length | 50' (15.24 m) | | Cable O.D. | 0.4" (10.16 mm) | | Dimensions | Max Connector: 1.3" (33.02 mm) | | Weight | 3.8 lb (1.72 kg) | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 7.6 x 7.2 x 2.1" |
