User Manual for StarTech Composite Video Extender Over Cat5 with Audio Click to enlarge the picture
Contents of the user manual for the StarTech Composite Video Extender Over Cat5
- Product category: Video Extenders & Repeaters StarTech
- Brand: StarTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for StarTech Video Extenders & Repeaters
 |
User manual for the StarTech Composite Video Extender Over Cat5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any StarTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official StarTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a StarTech product will considerably shorten its lifespan!
|

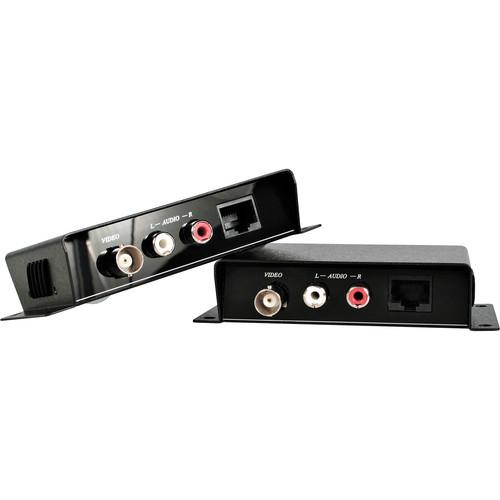

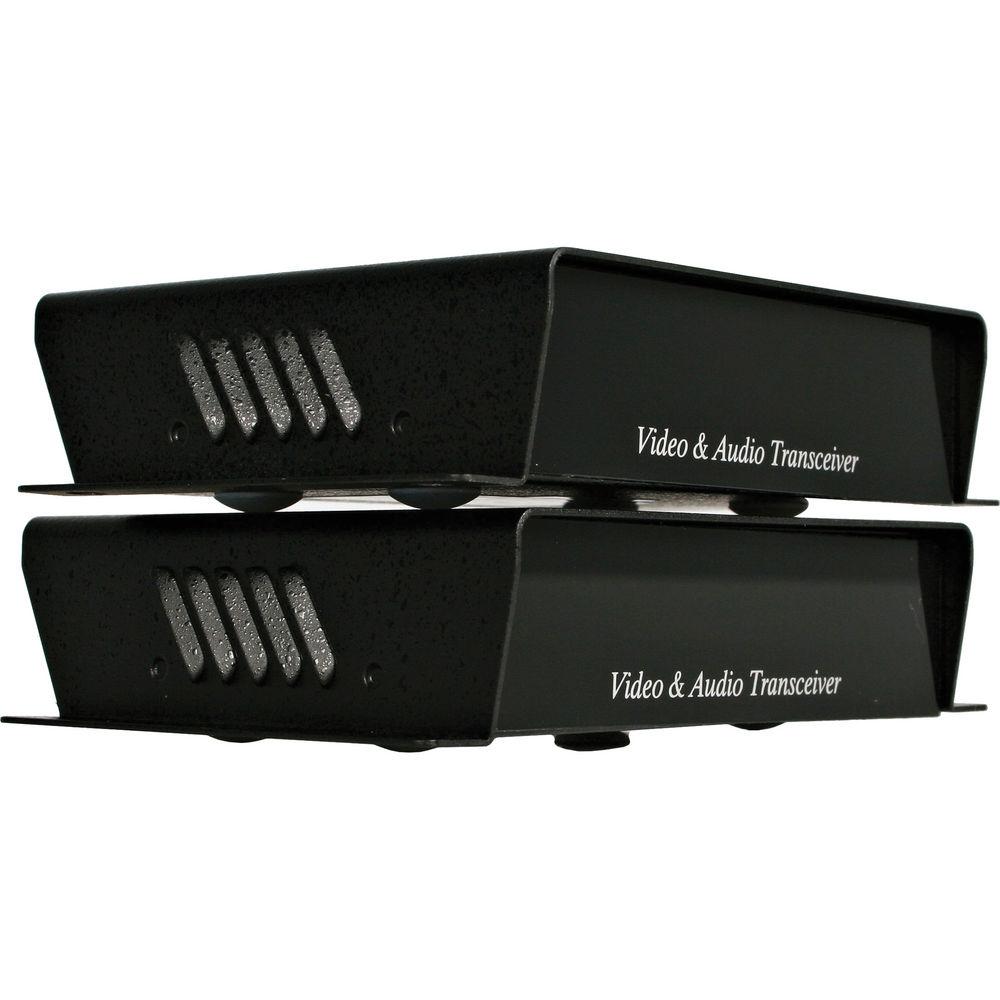

Product description The black Composite Video Extender over Cat5 with Audio from Startech lets you extend a composite video source signal with supporting audio up to 660' (200 m) using standard Cat5 UTP cabling. The composite over Cat5 extender comprises of 2 extender units that can be used interchangeably. One is installed near the video signal source, while the other is to be placed near the desired display, up to 660' (200 m) away.With no software or power adapter requirements, installation and setup is quick and hassle-free. The included installation / mounting kit and BNC to RCA composite video adapters offer added flexibility in the placement and usage of the device. The Cat5 extension design allows you to make use of existing Cat5 or better wiring infrastructure.This extender is suitable for classrooms, projectors, tradeshows, and retail displays. It can be used in home or commercial applications as a fast means of connecting composite video equipment over long distances. - Works with shielded twisted pair (STP) and unshielded twisted pair (UTP) Cat5 cable
- Mounting kit included for wall installation
- Quick, easy installation and set-up
- Audio functionality available

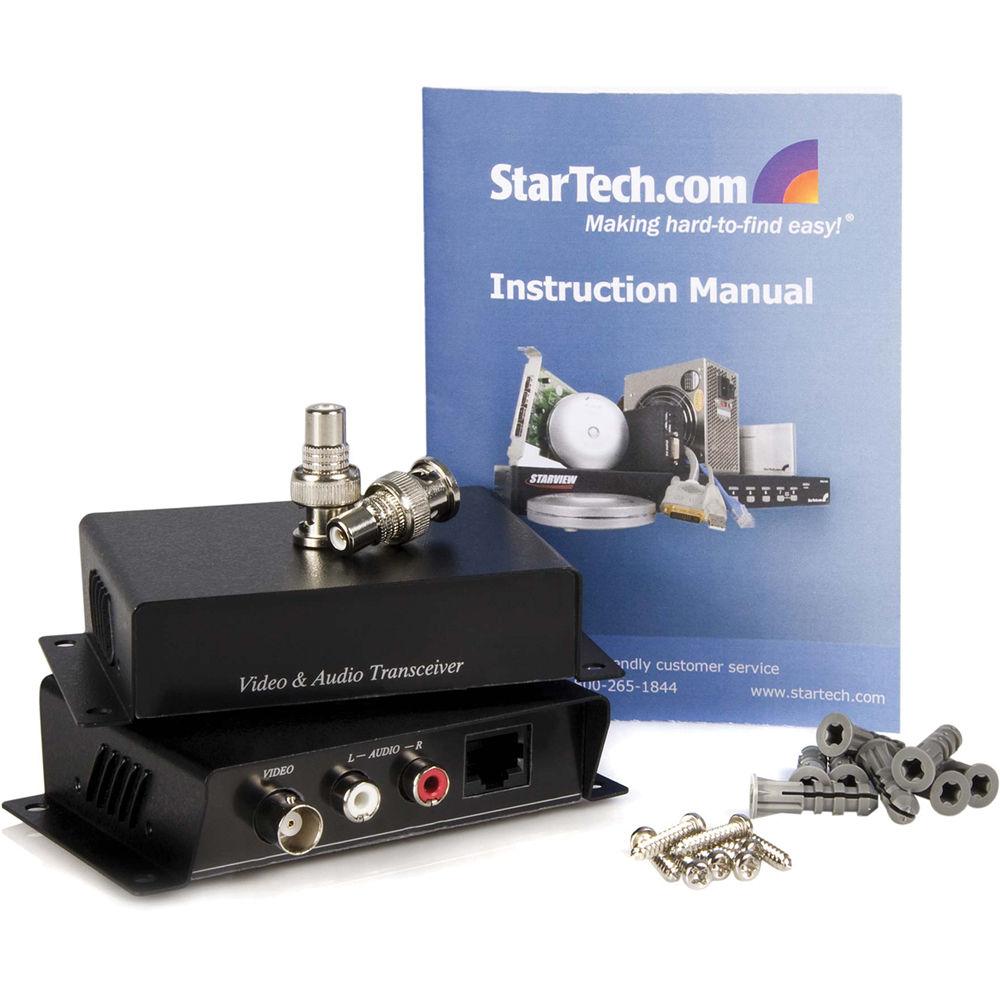

UPC: 065030820738 In the Box StarTech Composite Video Extender Over Cat5 with Audio (Black) Mounting Kit 2 x BNC to RCA Composite Video Adapter Limited 2-Year Warranty Brochure PDF 106.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the StarTech Composite Video Extender Over Cat5 with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

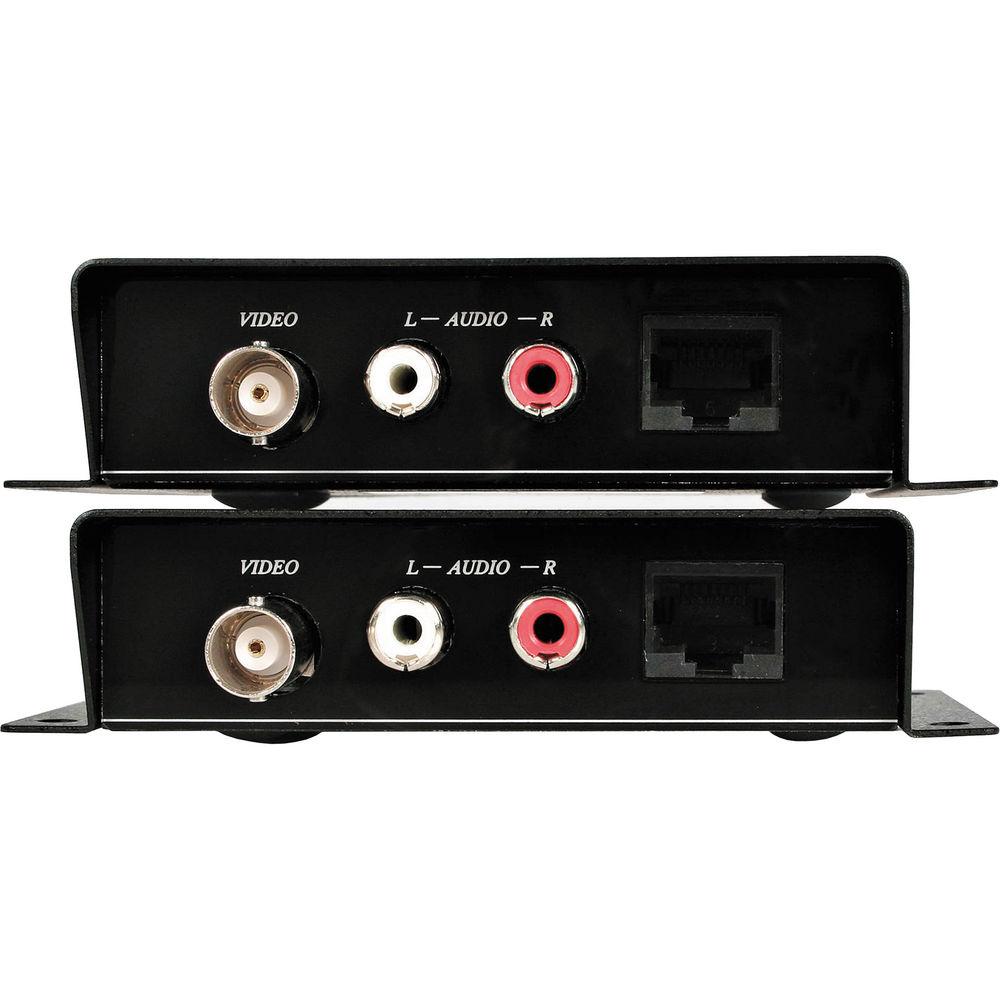

Technical parametersStarTech COMPUTPEXTA Specs | | | Port | 1 | | Cabling Type | Cat5 UTP or better | | | | Connector 1 | Local Unit Connectors:1 x BNC (RF Coax) Female1 x Composite Video (1 x RCA) Female1 x RJ-45 Female1 x Stereo Audio (2 x RCA) Female | | Connector 2 | Remote Unit Connectors:1 x BNC (RF Coax) Female1 x Composite Video (1 x RCA) Female1 x RJ-45 Female1 x Stereo Audio (2 x RCA) Female | | | | Maximum Distance | 660' (200 m) | | Supported Resolutions | 480i, 480p | | | | Enclosure Type | Aluminum | | Dimensions (L x W x H) | 4.30 x 3.00 x 0.90" (10.92 x 7.62 x 2.29 cm) | | Weight | 16.20 oz (459.26 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 4.7 x 4.5 x 3.4" |
